Description Part Number: 836

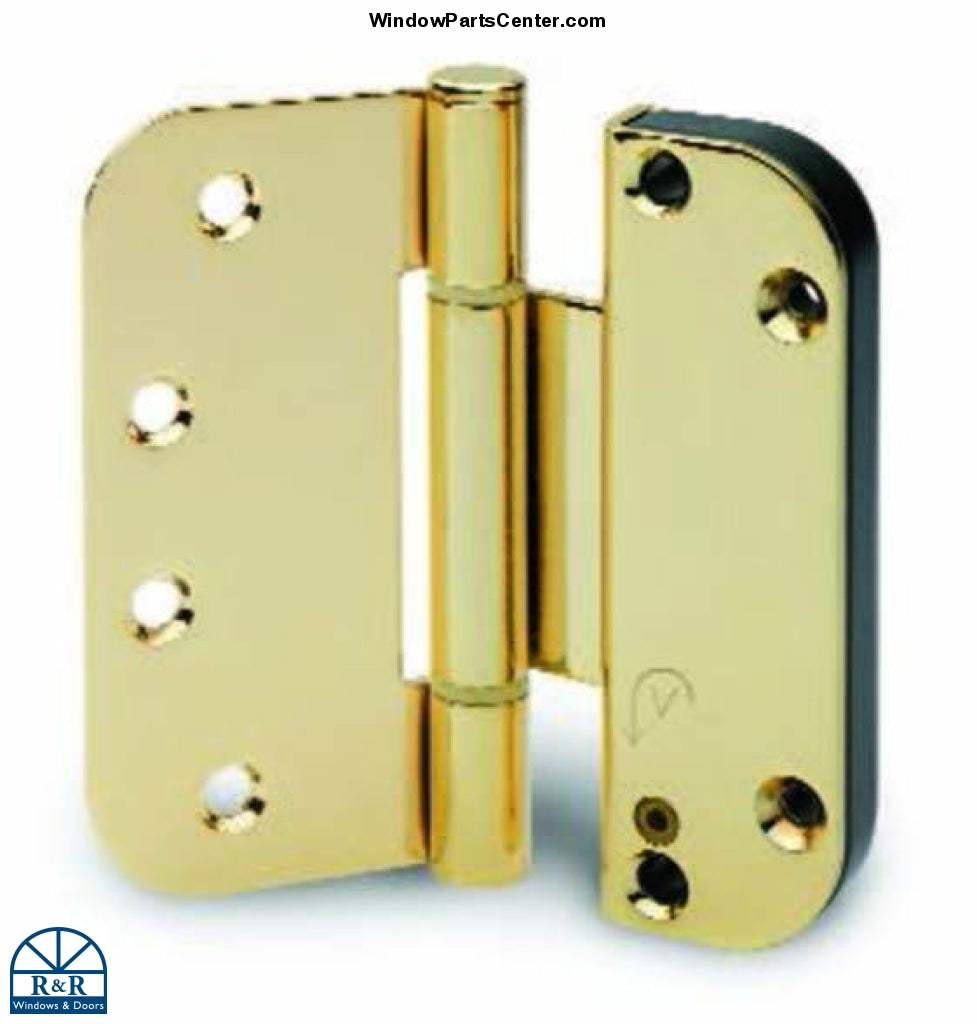

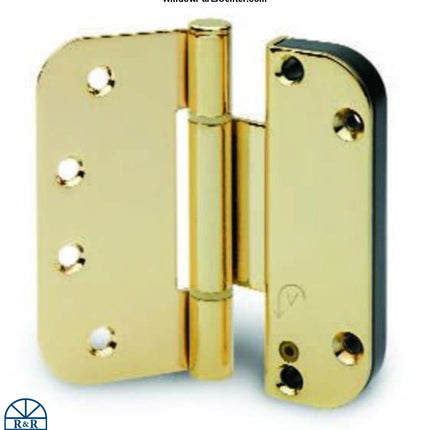

4" x 4" Ashland Vertical Set Hinge Adjusting Swinging Patio Door Hinge
PIVOT TRUE V400 4" VERTICAL ADJUSTABLE DOOR HINGES
For Mate Horizontal Hinge See Part Number 835
Low Stocked Item - May have a 2-3 week lead time

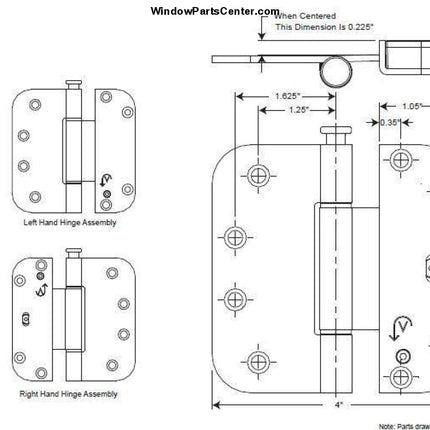

Handing: Non Handed - see video below. Remove pin and flip to reverse handing
KEY FEATURES

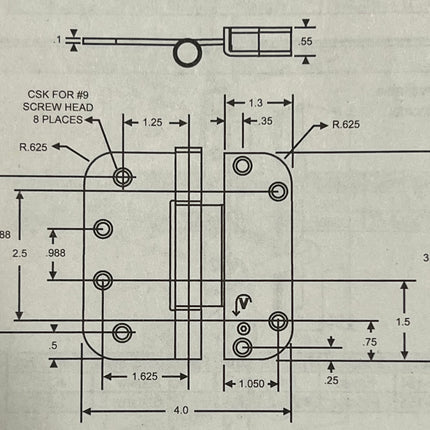

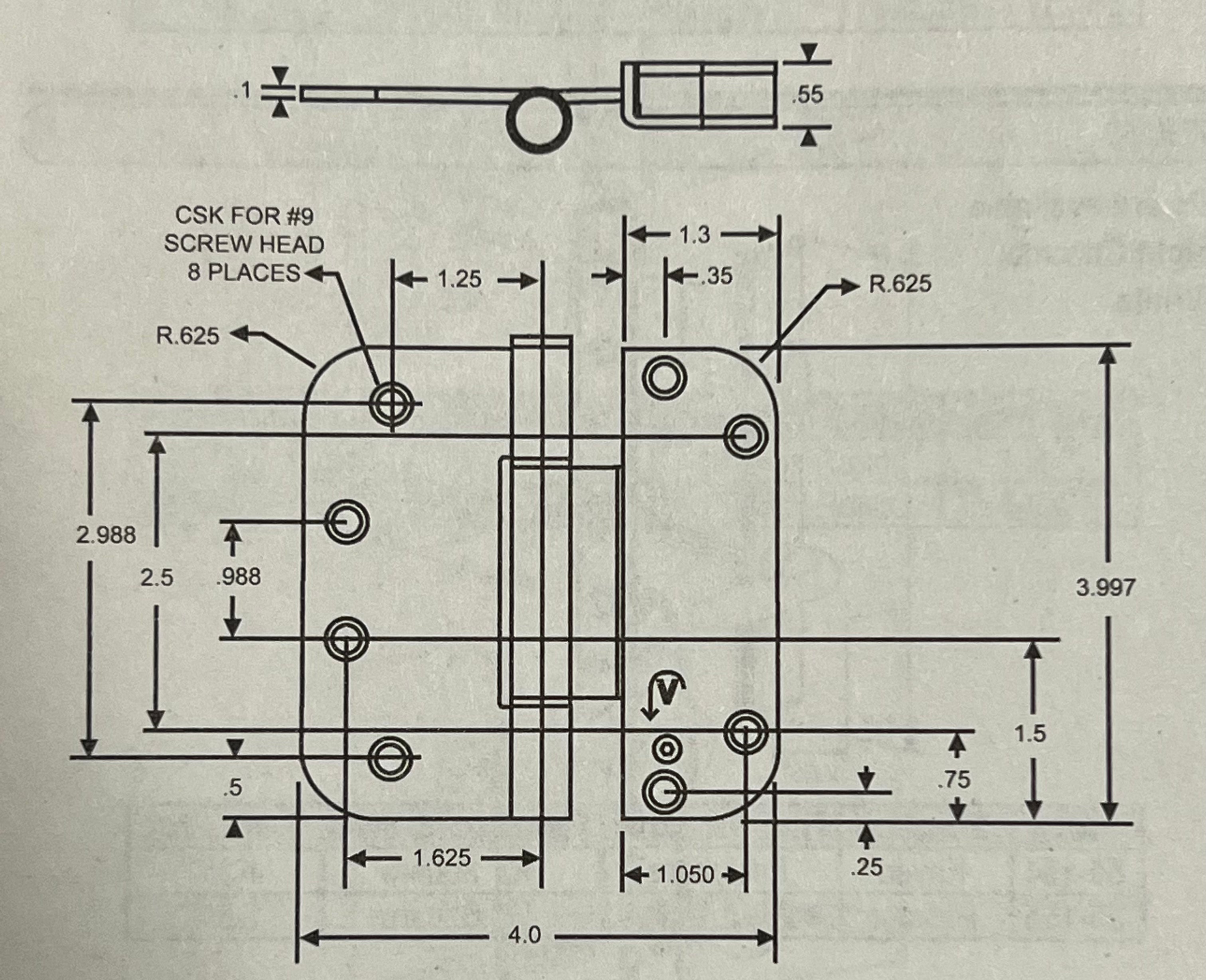

Seamlessly retrofits a 4" X 4" one-step pocket route with 5/8" corner radius
Hex head adjustment screws, not Phillips or Slotted, to provide secure tool engagement and prevent stripping during adjustment
Screw hole locations optimized away from panel edge to prevent accidental wood splitting
Panel leaf incorporates a unique shield to keep out debris and provide a premium appearance in the closed position
Incorporates Teflon filled bushings for increased wear resistance
Non-removable pin (NRP) option available for secure out-swing applications
PERFORMANCE AND OPERATION

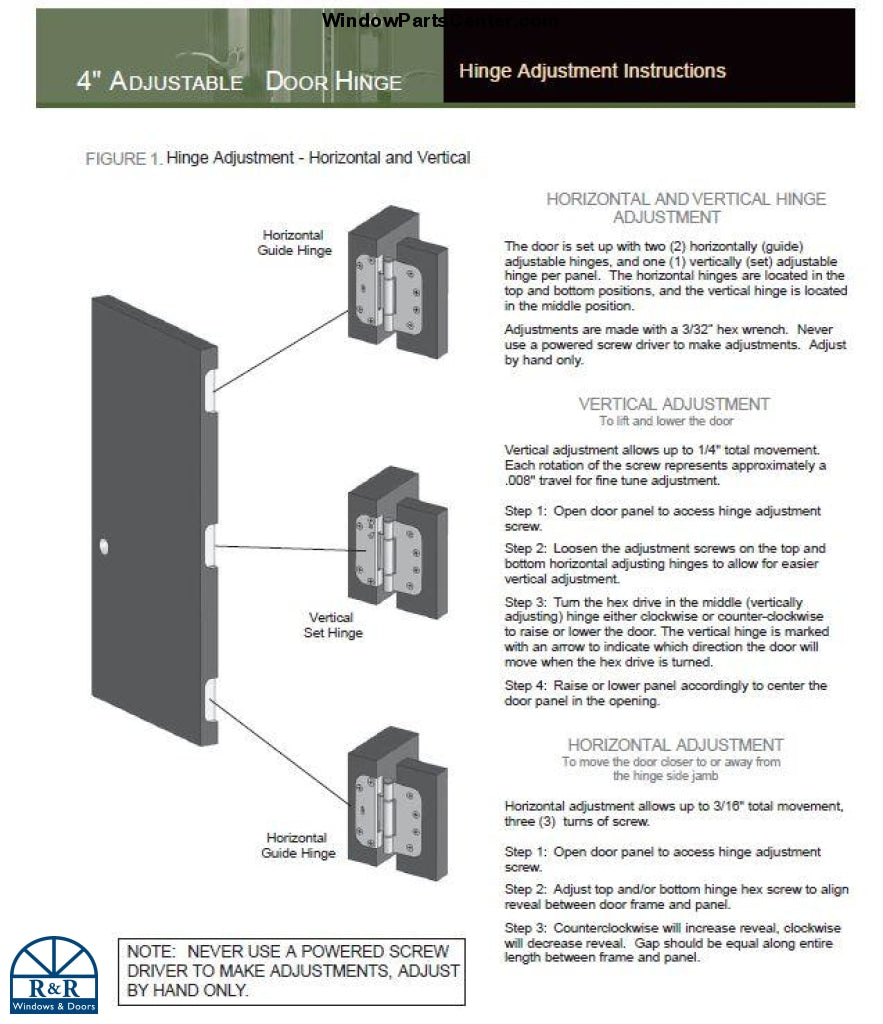

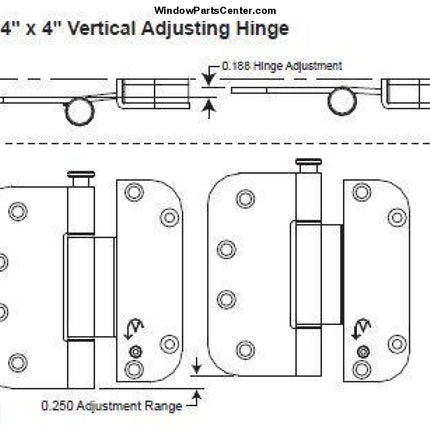

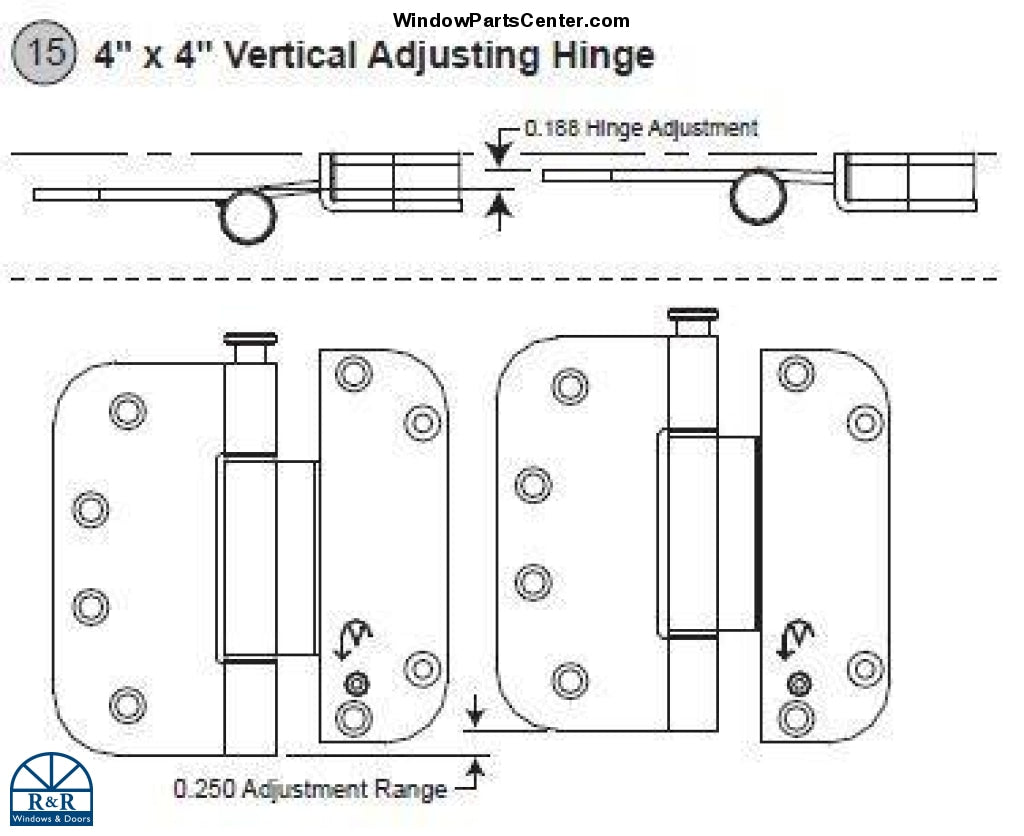

Adjusts 1/4" vertically and 3/16" horizontally
Easily reversible for either left or right-hand hinge applications
Innovative, patent-pending adjustment mechanism achieves extremely low adjustment torque with a standard 3/32" hex wrench
Exceeds BHMA - grade 3 standards for wood, vinyl, aluminum and steel doors.
Known Brands: Ashland, Hurd Energy Saver Patio Door, Sierra Pacific WI Patio Door
Screw Pack: Screws are sold separately and not all colors are available. To order Screws with your hinges see 835/836Screw Pack (1 screw pack will do 1 hinge).
Or you can buy at your local hardware store the following:
QTY 4 - #9 x ¾” or 1” (size change depends on what finish the screw is available in)
QTY 4 - #9 x 1-1/2”
QTY 1 - #9 x 2 ½” or 3” (size change depends on what finish the screw is available in
Associated Product Sold Separately:
Part Number 835 Guide Hinge
Part Number 835/836 Screw Pack
IF THIS HINGE DOES NOT LOOK EXACTLY LIKE YOUR ADJUSTABLE HINGE. CLICK HERE TO SEE ALL THE ADJUSTABLE HINGES WE HAVE ON OUR WEBSITE TO ORDER. IF YOU ARE NOT FINDING YOUR HINGE PLEASE EMAIL OR TEXT OUR RESEARCH DEPARTMENT AND WE WOULD BE HAPPY TO ASSIST YOU.
