Part Number; 301
Lock & Keeper SetColors: White, Goldtone, Bronze & Champagne
Dimensions: 2 1/4" wide x 1 Inch Tall
Special Order Colors: Bright Brass, Brushed Chrome, Oil Rubbed Bronze*, Matt Black (Special order items are a no returns or order cancellation item once order is placed. Lead times very based on product availably at factory you can email or text us before you place an order and we can check with the factory for lead time).
*Oil Rubbed Bronzed is a FB "faux bronze" painted finish.
Used On Hurd Windows From March 22 2022 to Oct 2021
number stamped on underside of lock: 678105, 678101, 678102,
number stamped on keeper: 114
part number 311
Comes in goldtone only as shown in picture.
truth window sash tension lock TH-23075
Stamped on back 20056A
U.S.A.
US PAT. 3,706,467
CAN. PAT. 884.190
The 311 Toggle Lock with Keeper - Old Style is the direct replacement for truth toggle window locks on your Hurd or other brand windows. Keep your home secure and looking great with this convenient direct replacement repair option.
Part Number 401
Amesbury Truth Entrygard II Check Rail Sweep Sash Lock and Keeper Set
Check Rail Lock and Keeper Set for Single or Double Hung Windows and Horizontal Slider Windows
What included: 1 Lock, 1 Keeper and 4 Color Matching ScrewsColors Available: Bronze
Discontinued Colors: Dark Bronze, Bright Brass, white, goldtone and New Goldtone (once our stock is gone they are discontinued colors and no longer available)
Known Part Numbers For Lock: 11869395 - Bronze, 11869396, 1719BR - White, 45226, 45192, 40381, 1719W. U.S. Pat. 268,643, 310
CAN. PAT. 49255
Known Part Number for Keeper: 9415
Brands: Hurd Windows, Marvin Windows, Entrygard, Amesbury Truth
Part Number: 525 - Vinyl Head Track For Classic Hurd Horizontal Slider
Aluminum Clad Wood Windows Horizontal Slider Vinyl Head TrackColor: Bronze, Sand, WhiteComes in 6 foot lengths pc only:
1 Pack = QTY 1 pc at 6 foot
2 Pack = QTY 2 pcs at 6 foot each
5 Pack = QTY 5 pcs at 6 foot each*Foam piece is discontinued and no longer available*
For Classic Hurd Horizontal Sliding Windows only!
Kit Includes: 1 Lock, 1 Keeper, 4 screws
Locks are Handed.If you window only has 1 lock then it is a Left Hand.If window has 2 locks then it has a Left Hand and a Right Hand***Left Hand and Right Hand Locks are sold separately - See picture for handing
Goldtone has been discontinued by manufacturer. Once stock is depleted Champagne will be shipped out in its place.
Number that can be stamped on the back of the lock: 32782Numbers that can be stamped on the back of the keeper: 677147
Part Number BB12006
Double Hung Sash Check Rail Lock and Keeper (Screws NOT included)
Colors: White, Goldtone, Oil Rubbed Bronze, Beige
Discontinued Colors: New Goldtone
Known to have been used on Built Best Double Hung Windows
Part Number Stamped on back of lock: A-S PA 9371
Part Number Stamped on back of Keeper: 9372
Part Number C1000
Auto Lock has been discontinued my manufacturer the retro fit replacement style by the Interlock Slimline Lock (see picture) C10000 or S1111 links under accessory items. These will directly replace the old Auto lock only 2 new holes will need to be drilled on the sash (see video). To order replacement lock use C10000 series - click here to see all options
Auto Lock Replacement For WinPro and Cascade Series 9100 Horizontal Slider and 9200 Single Hungs and customers have also said this replacement locks works on Mercer auto locks as well Color: White
Used on multiple window lines including Cascade (9/5/2017 and older), Mercer and others
Part Number: C10000 This page is for information only and shows which part numbers work together and options:
Interlock Pro-Latch Auto lock
Featuring automatic locking action and a removable cover, Pro-Latch offers the ability to provide cost-effective proprietary aesthetics as well as architectural finishes.
To Order See the Following Part Numbers:
Mechanism: Part Number C10000M
Mechanism Screws: Part Number C10000MS
Cover: Concealed Screw Cover Part Number C10000CSC
Cover: ADA with pull string Part Number C10000ADAC
Cover: With Exposed Screw Cover Part Number C10000ESC
Cover: Slimline Composite or Zinc Cover Part Number C10000SLC
Cover: With Exposed Screw Cover Part Number C10000ESC
Keeper: Face Mounted Striker Keeper Part Number C10000FMK
Keeper: Surface Striker Keeper Part Number C10000SSK
Keeper Screes: Part Number C10000KS
The original standard in automatic sash lock solutions for hung and sliding windows.
PRO-Latch features a removable cover and the ability to provide cost-effective proprietary aesthetics as well as architectural finishes. Whether you’re looking for a composite or metal cover, or a mechanism that is surface mounted or recessed into the profile, Interlock’s PRO-Latch is the highly customizable sash lock system that delivers superior performance.
Features
Removable snap-on cover (composite or metal options)
Fits most sliding and hung window applications
Multiple fixing locations available
Hurricane rated in impact-certified applications
Robust dual hooks for superior FER resistance
Surface mounted or recessed into profile
Patented cover designs
Style:
Slim Line Cover: A clean, sophisticated aesthetic design to enhance the look of any window, this cover is supplied separate from the PRO-Latch mechanism. Two piece installation and is available in composite.
Exposed Screws Cover: The classic aesthetic design to compliment any window, this cover is supplied with the PRO-Latch mechanism installed in the cover for the convenience of a one piece installation.
Concealed Screws Cover: With a classic aesthetic design to complement any window, this cover is supplied separately from the mechanism in order to conceal the screws and achieve a sleek, sophisticated look. Cover is supplied separate from the PRO-Latch mechanism. Two piece installation
ADA Cover: The classic aesthetic design of our Concealed Screws Cover, with an adjustable pull cord to disengage the lock. Designed for easy operation and ADA compliancy. Cover is supplied separate from the PRO-Latch mechanism. Two piece installation
Size (striker keeper):
Face Mounted Striker Keeper Mounted on a vertical wall on the profile
Surface Striker Keeper Mounted on a horizontal wall on the profile
Interlock US PAT NO 7,407,119 stamped on Mechanism

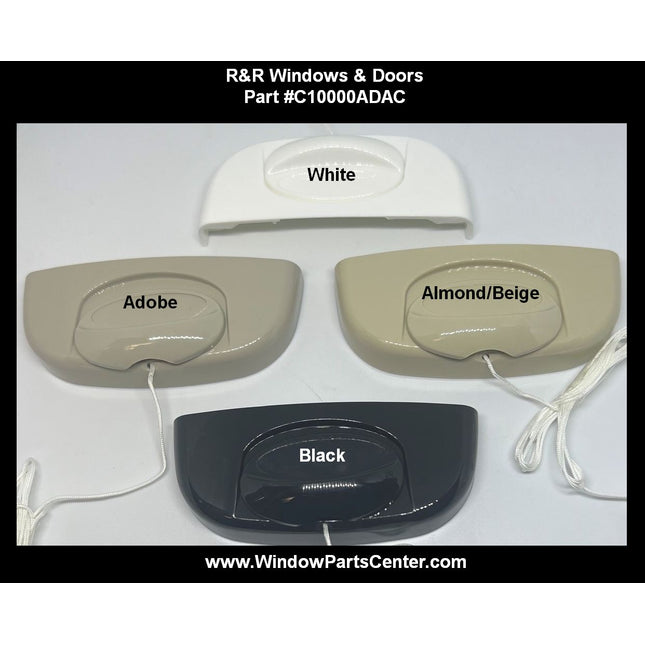

Part Number C10000ADAC
Interlock ASSA ABLOY TRU-Latch Pro Latch Cover ADA with pull string
The original standard in automatic sash lock solutions for hung and sliding windows.
The classic aesthetic design of our Concealed Screws Cover, with an adjustable pull cord to disengage the lock. Designed for easy operation and ADA compliancy.
Sold Individually ADA Cover Only (for large orders of QTY 100 and QTY 300 this will be considered special order item no returns)
Color: White, Black, Almond (aka Beige)
Material: Composite
Interlock Part Series: 5f798
Parts Sold Separately:
Mechanism: Part Number C10000M
Mechanism Screws: Part Number C10000MS
Cover: Concealed Screw Cover Part Number C10000CSC
Cover: ADA with pull string Part Number C10000ADAC
Cover: With Exposed Screw Cover Part Number C10000ESC
Cover: Slimline Composite or Zinc Cover Part Number C10000SLC
Cover: With Exposed Screw Cover Part Number C10000ESC
Keeper: Face Mounted Striker Keeper Part Number C10000FMK
Keeper: Surface Striker Keeper Part Number C10000SSK
Keeper Screws: Part Number C10000KS
(Interlock US PAT NO 7,407,119 stamped on Mechanism )
Part Number C10000CSC
Interlock ASSA ABLOY TRU-Latch Pro Latch Cover Concealed Screw Cover 5f798
The original standard in automatic sash lock solutions for hung and sliding windows. Sash Lock Cover
With a classic aesthetic design to complement any window, this cover is supplied separately from the mechanism in order to conceal the screws and achieve a sleek, sophisticated look.
Sold Individually Cover Only (for large orders of QTY 100 and QTY 300 this will be considered special order item no returns)
Colors: White, Black and Almond (aka Beige)
Material: Composite
Interlock Part Series: 5f798
Parts Sold Separately:
Mechanism: Part Number C10000M
Mechanism Screws: Part Number C10000MS
Cover: Concealed Screw Cover Part Number C10000CSC
Cover: ADA with pull string Part Number C10000ADAC
Cover: With Exposed Screw Cover Part Number C10000ESC
Cover: Slimline Composite or Zinc Cover Part Number C10000SLC
Cover: With Exposed Screw Cover Part Number C10000ESC
Keeper: Face Mounted Striker Keeper Part Number C10000FMK
Keeper: Surface Striker Keeper Part Number C10000SSK
Keeper Screws: Part Number C10000KS
(Interlock US PAT NO 7,407,119 stamped on Mechanism )
Part Number C10000ESC
Interlock ASSA ABLOY TRU-Latch Pro Latch Cover With Exposed Screw Cover 5F798
The original standard in automatic sash lock solutions for hung and sliding windows. Sash Lock Cover
With a classic aesthetic design to complement any window, this cover is supplied with the mechanism with exposed screws holes.
Sold Individually Exposed Screw Cover comes with Mechanism together see pictures: (for large orders of QTY 100 and QTY 300 this will be considered special order item no returns)
Material: Composite
Color: White only
Interlock Part Series: 5f798
Parts Sold Separately:
Mechanism: Part Number C10000M
Mechanism Screws: Part Number C10000MS
Cover: Concealed Screw Cover Part Number C10000CSC
Cover: ADA with pull string Part Number C10000ADAC
Cover: With Exposed Screw Cover Part Number C10000ESC
Cover: Slimline Composite or Zinc Cover Part Number C10000SLC
Cover: With Exposed Screw Cover Part Number C10000ESC
Keeper: Face Mounted Striker Keeper Part Number C10000FMK
Keeper: Surface Striker Keeper Part Number C10000SSK
Keeper Screws: Part Number C10000KS
(Interlock US PAT NO 7,407,119 stamped on Mechanism )
Part Number C10000FMK
Surface Fixed Striker Keeper (Face Mount Keeper) for Single Hung, Double hung and Horizontal Slider Window lock..
Sold Individually (for large orders of QTY 100 and QTY 300 this will be considered special order item no returns)
Color: White, Clay, Almond (aka Beige)
Parts Sold Separately:
installation jig: S1111JMechanism: Part Number C10000M
Mechanism Screws: Part Number C10000MS
Cover: Concealed Screw Cover Part Number C10000CSC
Cover: ADA with pull string Part Number C10000ADAC
Cover: With Exposed Screw Cover Part Number C10000ESC
Cover: Slimline Composite or Zinc Cover Part Number C10000SLC
Cover: With Exposed Screw Cover Part Number C10000ESC
Keeper: Face Mounted Striker Keeper Part Number C10000FMK
Keeper: Surface Striker Keeper Part Number C10000SSK
Keeper Screws: Part Number C10000KS
Mechanism: Part Number S1111M
Flip lock Keeper: Part Number S1111FLC
