Part Number C1024PD1530 Visions Patio Door Handle. Handle ONLY. Other parts like keeper, mortise lock box sold separately see accessories items for all associated known parts.Kit comes with everything you need for one complete new handle.You have the option to order for this handle set. Non-keyed or Keyed (Keyed version is shown in picture and is not a stock item and will be special order item no returns or exchanges).Handle Sets can be handed for either style door XO or OX operation - Handle set is reversible to use on both handing's based on where you place the lock latch.Non Keyed Comes with the following: 1 Handle set (inside and out handle), all handle mounting screws needed, thumb latch. (all other parts are sold separately see below) Keyed Kit Comes with the following: 1 Handle set (inside and outside handle) with hole for cylinder, all handle mounting screws needed. thumb latch, 1 keyed cylinder, and 2 keys. (Keyed version is shown in picture and is a non-stocked, special order item with no returns or exchanges). (all other parts are sold separately see below) Handing: Handle set is reversible to use on both handing's by where you place the lock latch.Colors: White, Almond, Clay and White Int / Black Ext.
Style: old style has been discontinued. The current version is the direct replacement. Once our old style stock runs out the current version will be shipped automatically. see video for more details.
Install: see installation instructions pictured or video at time stamp time 1:45Known Part number on interior handle stamped on back side: PD1530, PD1530-04, PD1430-01 (the -01 etc. refers to the cast mold number to make the handle set part number is the PD1530)
Known Brands: Winpro and Cascade Sliding Patio Door, Rehau sliding patio doors, PD, Visions hardware
Associated parts Sold Separately
Standard Mortise lock C1033
Standard Keeper C1058
Replacement keyed Cylinder see part number C3036
Replacement Upgrade Dual Action Mortise Lock Part Number C1035
Replacement Upgrade Amesbury Truth PD GEMINI KEEPER 2-3 panel(DUAL MORTISE) Part Number C1059
Part # S3009
Vanguard Mortise Lock Box Sliding Patio Door
Comes with mortise lock box and keeper (keeper comes in white color only)
If you would like to order the lock box with matching handle set please see Part # S3005
Known Brands: Fasco and Vanguard. PO# 31729, Pat.# US6672632, VA-3200115
Part Number: C1033
Surface Mount Mortise Lock 45 Degree latch with face plate Deadlatch Assembly
Material: Standard
Cylinder: 45 Degree
Faceplate mounting screw holes: 4 5/8 inch center to center
Overall Depth: 1-9/32 inch
Have known to been used on: Cascade, Sierra Pacific, SuperSeal, Jeld Wen vinyl sliding sliding patio doors, Amsbury Truth Hardware, 2998 Series, SuperSeal, Sierra Pacific Vinyl and Hurd Vinyl and more. VINYL 8000/8500 SERIES SLIDING PATIO DOOR (V-SPD) and more
S3006 C Elite Center Latch Handle Set By Sash Controls
(For the Off Set Latch version see part # 522).
In Stock Colors: White, Black
All other colors are non stock and can have a lead time of 2-5 weeks once you place your order.
Style: Keyed, Non-Keyed and Dummy
Non-Keyed handle sets: Means you can lock and unlock your door only from the inside with the lock latch. But you can NOT lock or unlock from the outside. Most Colors are a stock item.
Keyed handle sets: Keyed Means you can Lock and Unlock your door from the inside using the lock latch AND Lock and Unlock your door from the outside using a key. Most Colors are a stock item. Shafts for the keyed lock may need to be cut depending on your thickness of door your have. Otherwise handle will be loose on your door. If you want to avoid the possibility of having to cut the shafts order the NON KEYED version. (see trouble shooting install at bottom of page for more details on cutting shafts).
Dummy Handle Sets: No Locking or unlocking capability. Used mostly on 4 wide doors where 2 panels operate. Dummys are mounted on the secondary door. Allow 3-4 week lead time once order is placed. Dummy Handle set DO NOT need new Mortise lock!
Special Order Colors: Antique Brass, Dark Oil Rubbed Bronze, Brushed Chrome, Bright Brass, Satin Nickel (Lead time will very depending on color you choose and are special order items no returns).
Number Stamped On Back of Plate: 2265
Brand: Sash Controls, Accent Door
Mortise Lock Box Sold Separately: If your Recessed Mortise Lock has the 90 degree black cylinder you will need to purchase a new recessed mortise lock part # 518, S3007 or #S3011 with the 45 degree gray/silver cylinder for this handle set to work. Both mortise box work with handle # S3006 you will need to choose the type that your door panel is machine prepped for.
Associated Products Sold Separately:
Part Number: 518 Mortise Lock
Part Number: S3011 Mortise Lock Box
Part Number: S3007 Mortise Lock Box
Part Number: 522 - Sash Controls C Elite Keyed Handle Set with Offset Latch - Sash Controls
Trouble Shooting Install:If when using they keyed handle set and the turn lever for the lock and the turn lever for the keyed cylinder are hitting and pushing each other out of the the latch: This could be because you have the french style Hurd door and the panel is a different thickness. What you will need to do is cut the shafts so they both can fit into the mortise lock and the handle set can be screwed down tightly. Easiest is to put on the outside handle in place and mark the shaft where it comes through. Take it off and do the same for the inside handle. Then you can cut just shy of that mark on both shafts and then they should meet in the middle. Double check your marks so you cut on the correct side and don't cut too short. This handle set is made as a replacement option for many door thickness which is why you get multiple length screws and can cut the shafts to fit. If you want to avoid doing this all together order the non keyed version.Never use power tools when installing handle sets you run the risk of stripping out the screws.
***STOP!!! read all info AND watch video below!!!!***
Part Number 555 is DISCONTIUDED. No Longer Available. The retro Fit Replacement option you will be shipped is part number 558 - please watch video below as you will need to mortise out wood from your door panel to make 558 work.
To Purchase part Number 558 Click Here
When purchasing new style 558 as a replacement for 555 you will also need new style keeper C1059 which is SOLD SEPARATLY click here for C1059
Old style keeper to go with # 555 SOLD SEPARATLY part number 501-002 click here for 501-002 keeper
Double-hook Mortise Lock (Truth Hardware) with pocket face plate
AmesburyTruth Hardware 2 Point Recessed Mortise Lock
This fits Hurd / Sierra Pacific Energy Saver Sliding Patio Door Old Style and many other door brands
Used on part number 501 handle set for sliding patio doors
Known Part Numbers: 097182, 097180, 4-5033, 4-5034
Click on picture to enlarge. Standard Binding Post Screw - Silver Mill Finish -$16.00 each. Fits in a 1/4" diameter whole. No other finishes available.UPGRADE Binding Post Screw - Chrome, Brass Dull Finish, Dark Bronze & 18-8 Stainless Steel $26 each. 1/4" Diameter. ***NOTE*** When using the Upgrade # 546U Binding post. The diameter is 1/4" so you will have to drill out the hole with a 5/16" drill bit for these binding post to fit.
W&F Upgrade Handle (All Brass) Is No Longer Available. Use replacement options below.
How to order replacement handle set - please read all instructions below, view pictures and watch our how to videos before you place your order!
Verify you have the "B" screw hole position on your W&F mounting plate (see picture) If you find you have the "A" Screw Hole Click Here
Please watch videos below!
Parts to order:
1. Handle set:
Part Number S3006 Handle Set Center Latch for "B" Screw Hole Position. Your choice of function: Non keyed, Keyed or Dummy - see additional details for faction explanation.
2. Mortise Lock: Remove your mortise lock from your door to see what you have! The W&F handle set used a 90 degree cylinder which does not work with the S3006 handle set. You will need to replace the mortise lock box with a 45 degree cylinder mortise lock box. Depending on your door manufacture you need one of the following
# 518 Gray cylinder 45 degree
# S3007 45 Degree
#S3011 45 Degree
If your mortise lock box does not look like any of the above please email us picture's before you place your order so we can help you find the correct parts.
3. Binding Post Screw - as shown in the how to video the replacement handle set is not as long as the old W&F handle set you are replacing. You will have to fill the top screw hole that will be left over from the old handle set. Easiest solution to this is to use a Binding Post Screw.
Part# 546 - your choice of finish
Additional Info:
S3006 Handle Set Function Explanation:
Non-Keyed: Means you can lock and unlock your door only from the inside with the lock latch. But you can NOT lock or unlock from the outside. Most Colors are a stock item.
Keyed: Keyed Means you can Lock and Unlock your door from the inside using the lock latch AND Lock and Unlock your door from the outside using a key. Most Colors are a stock item. Shafts for the keyed lock may need to be cut depending on your thickness of door your have. Otherwise handle will be loose on your door (see instructions that come with the handle set that is also pictured above). If you want to avoid the possibility of having to cut the shafts order the NON KEYED version. (see trouble shooting install at bottom of page for more details on cutting shafts)
Dummy: No Locking or unlocking capability. Used mostly on 4 wide doors where 2 panels operate. Dummys are mounted on the secondary door. Dummy Handle set DO NOT need new Mortise lock as there is no locking feature!
Trouble Shooting Install:If when using they keyed handle set and the turn lever for the lock and the turn lever for the keyed cylinder are hitting and pushing each other out of the the latch: This could be because you have the french style Hurd door and the panel is a different thickness. What you will need to do is cut the shafts so they both can fit into the mortise lock and the handle set can be screwed down tightly. Easiest is to put on the outside handle in place and mark the shaft where it comes through. Take it off and do the same for the inside handle. Then you can cut just shy of that mark on both shafts and then they should meet in the middle. Double check your marks so you cut on the correct side and don't cut too short. This handle set is made as a replacement option for many door thickness which is why you get multiple length screws and can cut the shafts to fit. If you want to avoid doing this all together order the non keyed version. See instructions that come with the handle set that is also pictured aboveNever use power tools when installing handle sets you run the risk of stripping out the screws.
Known Part Numbers On W&F Handle : P/N 120-50, PAT. # 5,092,114
Mounting Plate Known part Numbers: 011771, P/N 120-60; PAT. # 5,092,144
Video is for "A" but installation is the same for the "B" placement (video shows a Hurd Classic Sliding Patio Doors that Used W&F Brass and Wood handle Set)

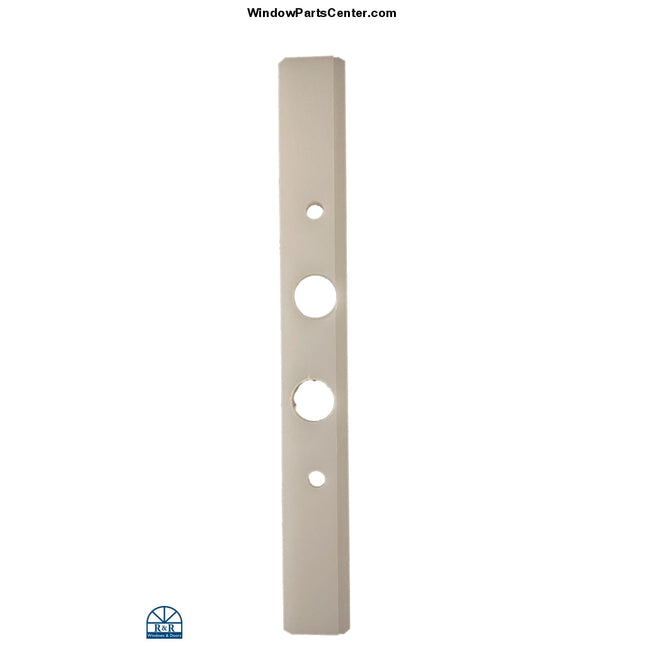

Part Number: 522SHIM
Replacement Shim
Color: White
Dimensions: 8 1/2 Inch Long x 15/16 Inch Wide x 17/32 Inch Thick
This shim will only work on our part number 522 C Elite Offset Lock Patio Door Handle
Shim is used on handle for door panels that are thinner so handle set can be tight to door and not be loose or wobble. Example this shim is needed for Hurd Sliding patio door panel.
Shim comes included when you order Part Number 522KIT for Hurd doors
Part Number S3007
Mortise Lock with Faceplate 45 Degree Diagonal Hub with Keeper
Aluminum Finish
Associated Parts Sold Separately:
Part Number: S3006 - C Elite Center Latch Sash Controls
Part Number: 522 - C Elite Offset Latch Sash Controls
Known Part Numbers and Numbers Stamped on Product: Canada Patent Number 919213 Dated 1973
Known Brand used on: Traco
Part Number: 558
Amesbury Truth - Gemini II PD Dual Action Mortise Lock With Recessed Trim Plate 2818 Series - 2 Point - For Sliding Patio Door
Keeper Sold Separately
Finish:
Standard (Stock)
Stainless Steel (Special order non stock no returns)
Stamped on mortise lock: PAT# 6.284.252 and PAT # 5.820.170
Used On: Hurd Sliding Patio Door and Sierra pacific WI sliding patio door and other door brands.
The Gemini II 2-point mortise locks has set the standard for 2-point locking in the sliding door industry. Gemini II locks are compatible with all industry standard handle sets and features opposing hooks that can be adjusted individually for proper keeper engagement. We offer a variety of keepers that are compatible with the Gemini II 2-point lock system to accommodate any application. There is also a “keeper locator” available to help ensure proper operation of the lock and keeper. The Gemini II lock has been built to help customers meet industry standard forced entry requirements with the ability to withstand 1,500 pounds of force. The lock also features an anti-slam pin that prevents damage to the door or locking system hooks by not allowing the hooks to extend unless the door is closed against the frame.
Product Highlights: Recommended for: aluminum, composite, vinyl, and wood Lock can withstand up to 1,500 lbs. of forced entry Hooks oppose one another to prevent panel lift Individual adjustment of hooks Anti-slam button to prevent false lockup Faceplate options to fit any application Steel and stainless-steel material options Keepers available in various heights and material choices Lock actuator is centered for 3-hole machining or offset by ¾ inches for 4-hole machining Keeper Locator available to ensure good alignment between the lock and keeper in the application
Same Style Mortise Box with Different Face Plate
Part Number: C1035 Amesbury Truth Gemini II PD Dual Action Mortise Lock
Part Number S4104
Hoppe CES Ring Wrench Tool For Plastic Insert Cylinder with Crescent Knob
Special order item no returns. Please expect a lead time of 1-4 weeks.
Related Parts Sold Separately:
Part Number S4105 - 2mm or 5/64" Hex Wrench
Part Number S4106 - Plastic Insert
Part Number S4107 - Set Screw
Part Number: S3020
Amesbury Truth Premium Sliding Patio Door Handle Set Grip Dual Pull Keyed Active Style. Mortise Lock and Keeper NOT included.
Non handed: Universal handing. Curved grip handles can be mounted on faceplate for left hand or right hand operation (see video)
What's Included: 1 interior faceplate with thumb turn, 1 exterior faceplate, 2 curved handles, mounting screws. foam shim, keyed cylinder and 2 keys
Color: White (aka Satin White)
Style:
Passive Non keyed - active handle set thumb latch only no exterior keyed lock
Keyed. Active handle set with keyed exterior cylinder. Random Keyed
(If you order 2 or more and want them Keyed Alike. Add Keyed alike to shopping cart (if you order 5 handle sets and want all 5 keyed alike add QTY 5 keyed alike to shopping cart). please allow an additional 1-2 weeks for keyed alike handle sets to ship out click here for keyed alike order add on)
Dimensions:
11 5/16 Inch Long x 1 1/4 Inch Wide Faceplate
3 Mounting Screw Holes for Faceplate
4 Inch Top to Middle Mounting Screw Holes Center to center
4 Inch Middle to bottom mounting Mounting Screw Holes Center to center
6 11/16" Curved Handle Mounting Screw Holes Center to Center
This Handle Set is known to been used on: PGT Winguard Aluminum Premium Sliding Glass Door SGD780 and PGT ClassicVue Max Aluminum Premium Sliding Glass Door SGD680
Associated Accessories Sold Separately:
C1035 Amesbury Truth Gemini II PD Dual Action Mortise Lock
It is possible for door manufactures to use a different mortise lock box with this handle set. If your mortise lock box does not match the C1035 please email us pictures of your mortise lock box for ID.
Replacement Thumb Turn Only Part is available to order from our factory drop ship website https://randrwindow.forpartsnow.com/ (These parts are stocked at the factory and drop shipped directly to the customer we do not stock this part on our Wearhouse at this time) Click Here to Order Replacement Thumb Turn Only Part
Info and Handing Video: See pictures above with video
Known Part Number: 13-575STWK
PGT Part Handle Set: 78164W
