Description
S3006 C Elite Center Latch Handle Set By Sash Controls
(For the Off Set Latch version see part # 522).
In Stock Colors: White, Black
All other colors are non stock and can have a lead time of 2-5 weeks once you place your order.
Style: Keyed, Non-Keyed and Dummy
-

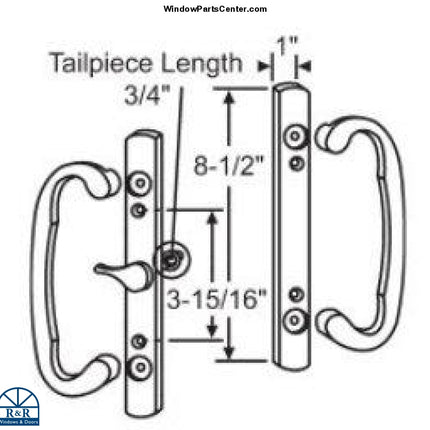

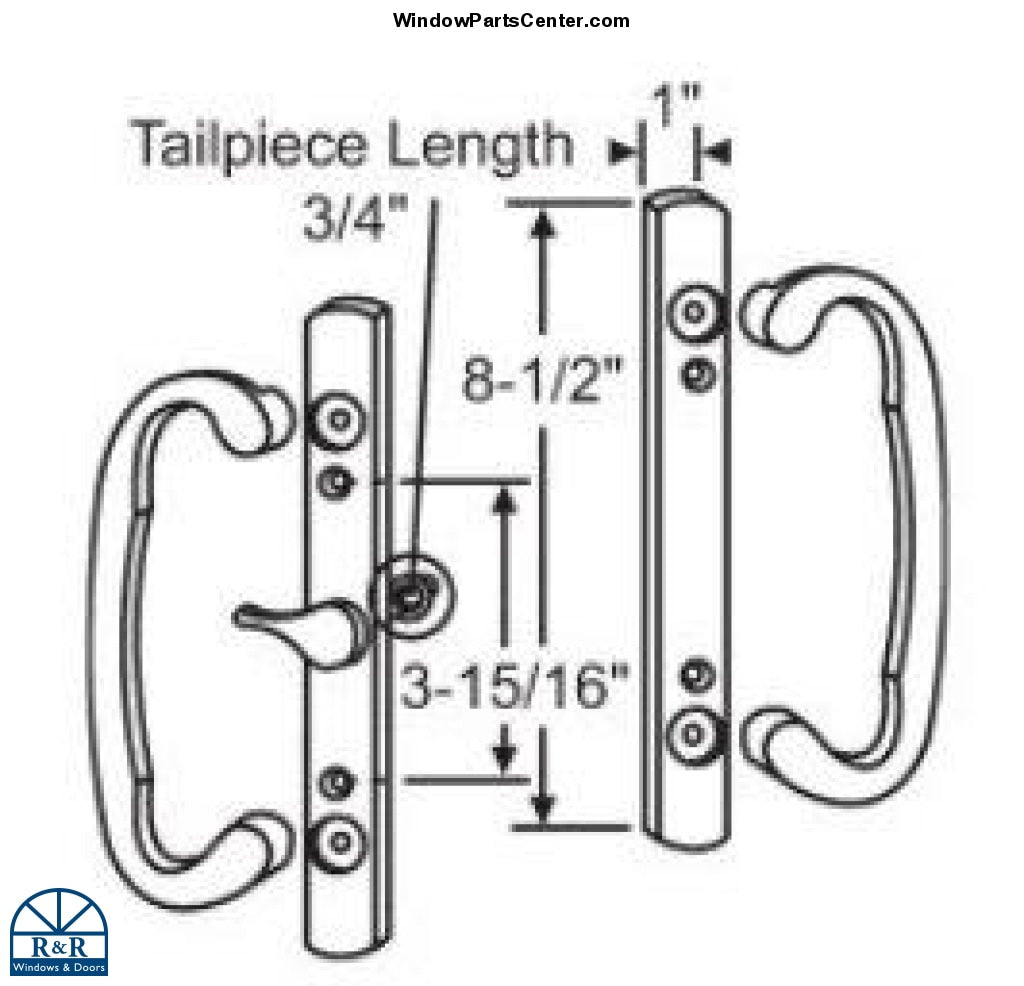

Non-Keyed handle sets: Means you can lock and unlock your door only from the inside with the lock latch. But you can NOT lock or unlock from the outside. Most Colors are a stock item.
-

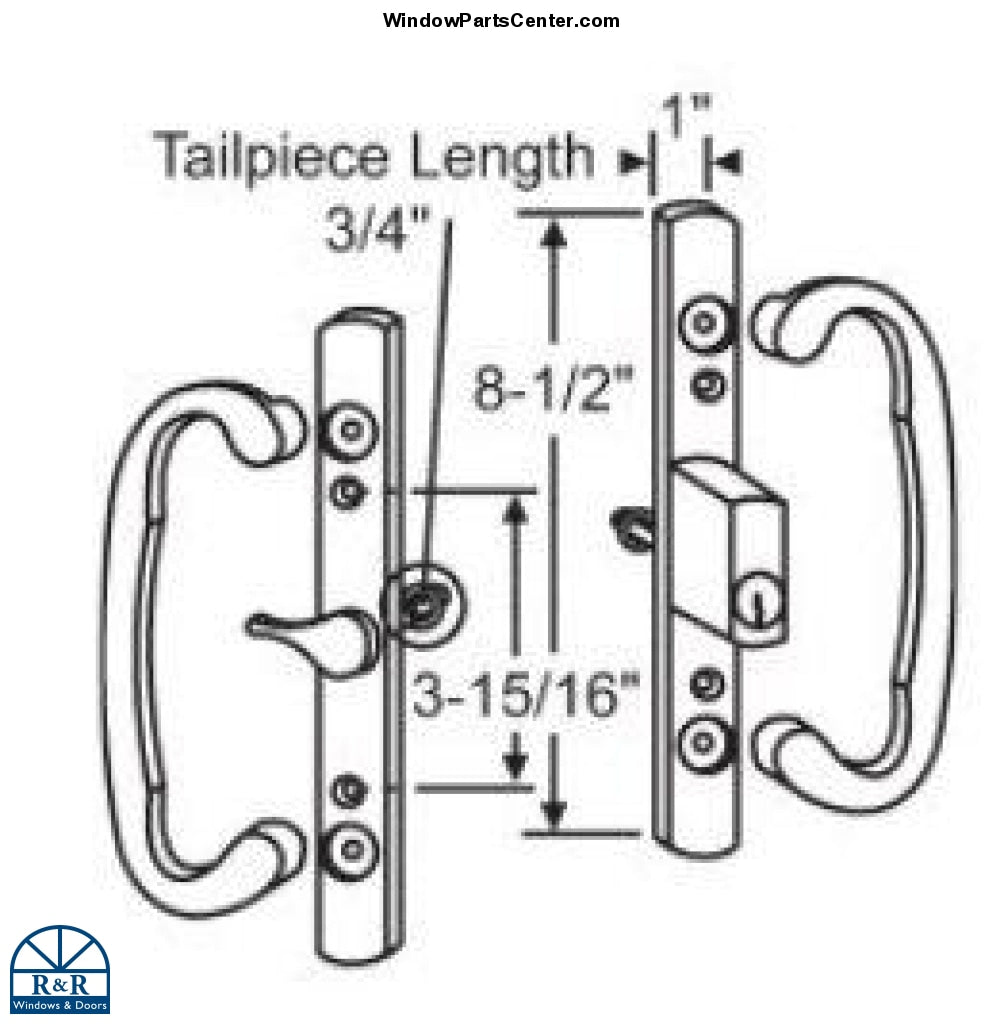

Keyed handle sets: Keyed Means you can Lock and Unlock your door from the inside using the lock latch AND Lock and Unlock your door from the outside using a key. Most Colors are a stock item. Shafts for the keyed lock may need to be cut depending on your thickness of door your have. Otherwise handle will be loose on your door. If you want to avoid the possibility of having to cut the shafts order the NON KEYED version. (see trouble shooting install at bottom of page for more details on cutting shafts).
-

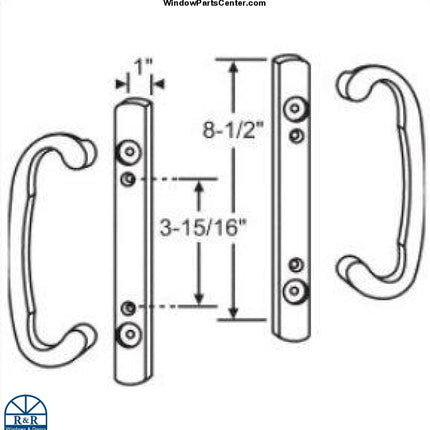

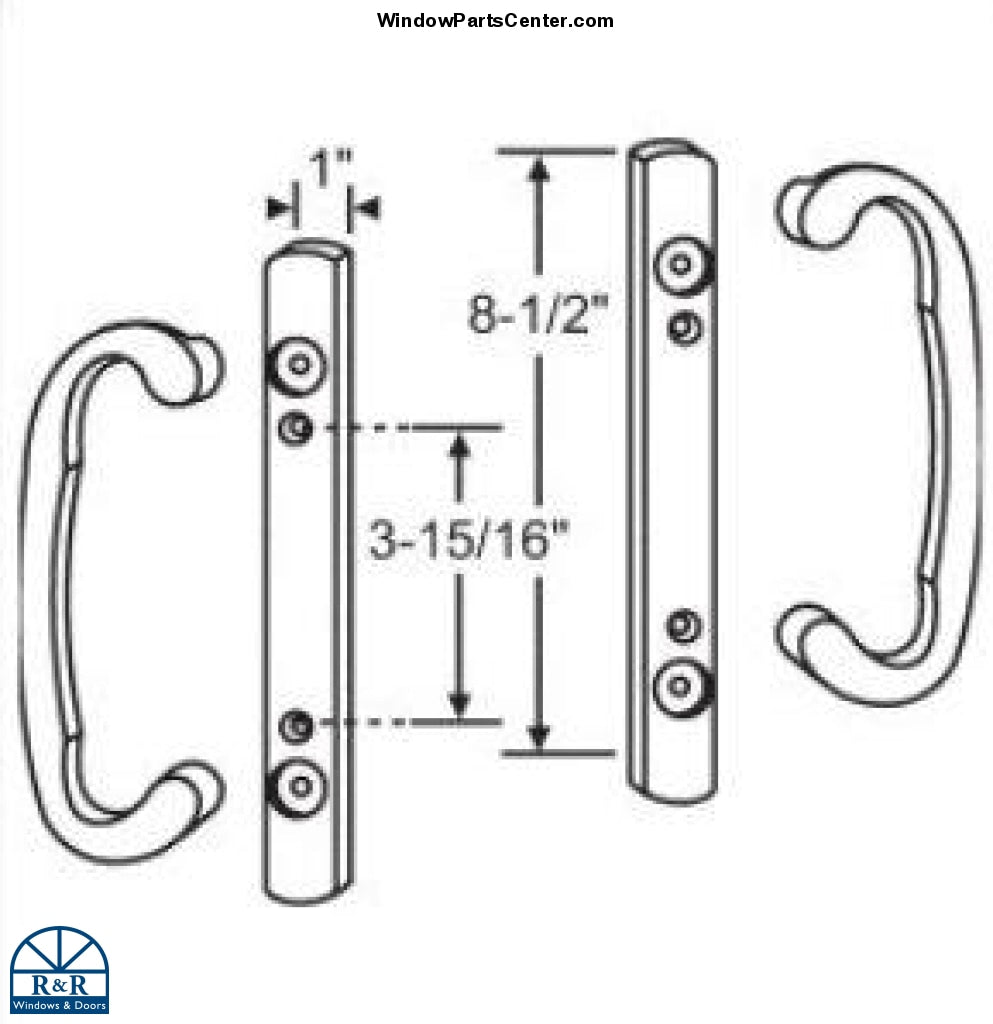

Dummy Handle Sets: No Locking or unlocking capability. Used mostly on 4 wide doors where 2 panels operate. Dummys are mounted on the secondary door. Allow 3-4 week lead time once order is placed. Dummy Handle set DO NOT need new Mortise lock!
Special Order Colors: Antique Brass, Dark Oil Rubbed Bronze, Brushed Chrome, Bright Brass, Satin Nickel (Lead time will very depending on color you choose and are special order items no returns).
Number Stamped On Back of Plate: 2265
Brand: Sash Controls, Accent Door
Mortise Lock Box Sold Separately: If your Recessed Mortise Lock has the 90 degree black cylinder you will need to purchase a new recessed mortise lock part # 518, S3007 or #S3011 with the 45 degree gray/silver cylinder for this handle set to work. Both mortise box work with handle # S3006 you will need to choose the type that your door panel is machine prepped for.
Associated Products Sold Separately:
Part Number: 518 Mortise Lock
Part Number: S3011 Mortise Lock Box
Part Number: S3007 Mortise Lock Box
Part Number: 522 - Sash Controls C Elite Keyed Handle Set with Offset Latch - Sash Controls

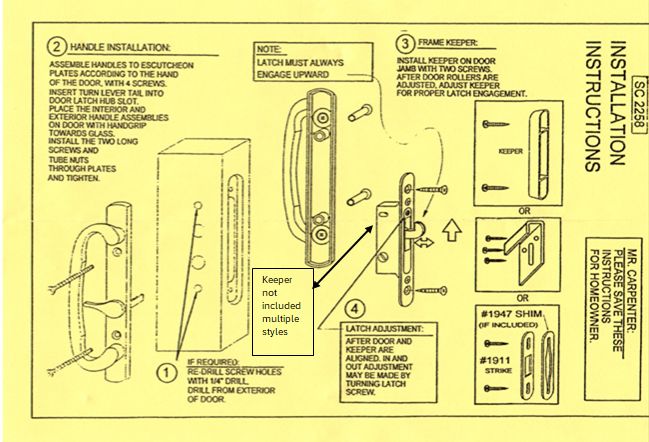

Trouble Shooting Install:
If when using they keyed handle set and the turn lever for the lock and the turn lever for the keyed cylinder are hitting and pushing each other out of the the latch: This could be because you have the french style Hurd door and the panel is a different thickness. What you will need to do is cut the shafts so they both can fit into the mortise lock and the handle set can be screwed down tightly. Easiest is to put on the outside handle in place and mark the shaft where it comes through. Take it off and do the same for the inside handle. Then you can cut just shy of that mark on both shafts and then they should meet in the middle. Double check your marks so you cut on the correct side and don't cut too short. This handle set is made as a replacement option for many door thickness which is why you get multiple length screws and can cut the shafts to fit. If you want to avoid doing this all together order the non keyed version.
Never use power tools when installing handle sets you run the risk of stripping out the screws.
