H3 Windows Replacement Parts and Hardware

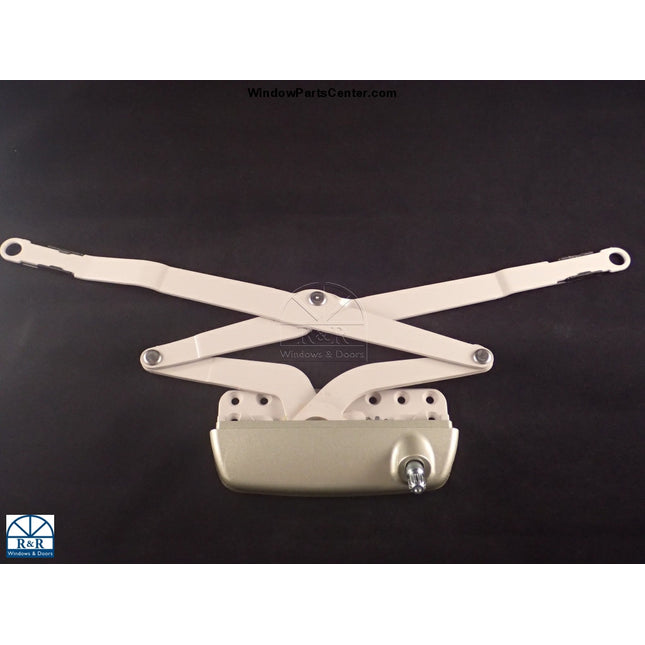

Part Number 207 Amesbury Truth Encore Awning Sill Mount Operator. Replacement awning window operator 207 is the Operator Only - You will need to purchase the cover and handle kit part number 137 sold separately. Color: E-Guard or Stailless Steel (this refers to the arms of the operator)  Manufacture Details: Encore Operators give you all the strength and performance characteristics of Maxim, but with the flexibility of a snap-fit cover and streamlined full-flip folding handle that eliminates collapse during operation. Encore Operators require 33% less effort to operate than previous operators and are designed to use the same mounting location as the Maxim system. Stainless steel components are available for coastal applications. These operators complement the Encore Multi-Point Locking System. Recommended Screws: (Qty 6) 8 X 1 Flat Head Sheet Metal Screw  (Qty 2)Rear Mount:#8-32 X 3/8 Pan Head Machine Screw  Number Known to be stamped on back of arms: 41013 and 41016 Stamped on Back Side of Housing: Made In U.S.A Associated Parts Sold Separately:  Part Number: 137 Encore Folding Handle and Cover Kit Part Number: 718 - Amesbury Truth Awning Guide Bar Part Number: 213 Black Slider Shoe  Part Number: 212 Black Operator Retainer Clip updated 7/7/23

Read more less

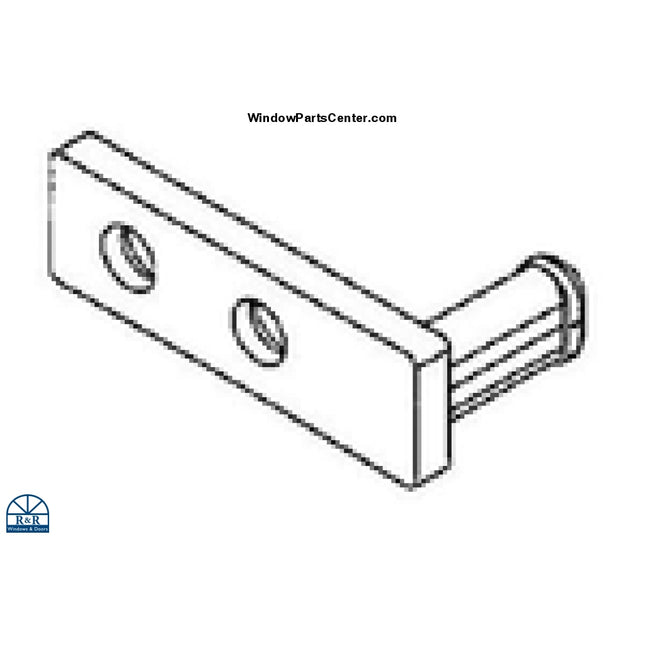

Part Number: 328 CDH Pivot Pin for Concealed Jamb-liner Sold individually  CDH Pivot PinConcealed Jamb Liner for Double Hung Windows.

Read more less

part number: 406 For Hurd Monument Horizontal Slider Windows sold by the foot, and 50 foot rolls no returns on orders less than 50 feet. Returns for full uncut 50 foot rolls only.

Read more less

Part number: 708Tilt Pivot Pin sold individually (Use #7 x 5/8" Screws - Not included) Replacement Pivot Pin for H3 Double Hung Windows

Read more less

Part Number: 836  4" x 4" Ashland Vertical  Set Hinge Adjusting Swinging Patio Door Hinge PIVOT TRUE V400 4" VERTICAL ADJUSTABLE DOOR HINGES For Mate Horizontal Hinge See Part Number 835  Low Stocked Item - May have a 2-3 week lead time Handing: Non Handed - see video below. Remove pin and flip to reverse handing KEY FEATURES Seamlessly retrofits a 4" X 4" one-step pocket route with 5/8" corner radius Hex head adjustment screws, not Phillips or Slotted, to provide secure tool engagement and prevent stripping during adjustment Screw hole locations optimized away from panel edge to prevent accidental wood splitting Panel leaf incorporates a unique shield to keep out debris and provide a premium appearance in the closed position Incorporates Teflon filled bushings for increased wear resistance Non-removable pin (NRP) option available for secure out-swing applications PERFORMANCE AND OPERATION Adjusts 1/4" vertically and 3/16" horizontally Easily reversible for either left or right-hand hinge applications Innovative, patent-pending adjustment mechanism achieves extremely low adjustment torque with a standard 3/32" hex wrench Exceeds BHMA - grade 3 standards for wood, vinyl, aluminum and steel doors. Known Brands: Ashland, Hurd Energy Saver Patio Door, Sierra Pacific WI Patio Door Screw Pack: Screws are sold separately and not all colors are available. To order Screws with your hinges see 835/836Screw Pack (1 screw pack will do 1 hinge). Or you can buy at your local hardware store the following: QTY 4 - #9 x ¾” or 1” (size change depends on what finish the screw is available in) QTY 4 - #9 x 1-1/2” QTY 1 - #9 x 2 ½” or 3” (size change depends on what finish the screw is available in Associated Product Sold Separately:  Part Number 835 Guide Hinge Part Number 835/836 Screw Pack IF THIS HINGE DOES NOT LOOK EXACTLY LIKE YOUR ADJUSTABLE HINGE. CLICK HERE TO SEE ALL THE ADJUSTABLE HINGES WE HAVE ON OUR WEBSITE TO ORDER. IF YOU ARE NOT FINDING YOUR HINGE PLEASE EMAIL OR TEXT OUR RESEARCH DEPARTMENT AND WE WOULD BE HAPPY TO ASSIST YOU. How To Remove Pin

Read more less

Part Number: 147 Amesbury Truth Encore Sill Mount Casement Operator - Reverse Dyad Arm style 50.60 The Encore series Dyad operator is designed for narrow windows and will operate sash size form 16" to 32" Wide , up to 72" Height and weighing up to 55 lbs.  Handing Left Or Right - View pictures above, video and pro tip below to determine that handing you need to order.  147 is the Operator Only read pro tip below - You will need to purchase the cover and handle kit part number 137 sold separately. Pro Tip: Please note these operators are used on narrow windows and are called reverse dyad. So it’s going to seem confusing but for example if your operator is a right hand operator it will will need a left hand cover and handle kit. Handing designation is determined by the manufacturer see Amesbury Truths product tips in pictures. As well as video below.  Manufacture Details: Encore Operators give you all the strength and performance characteristics of Maxim, but with the flexibility of a snap-fit cover and streamlined full-flip folding handle that eliminates collapse during operation. Encore Operators require 33% less effort to operate than previous operators and are designed to use the same mounting location as the Maxim system. Stainless steel components are available for coastal applications. These operators complement the Encore Multi-Point Locking System. Recommended Screws: (Qty 6)  8 X 1 Flat Head Sheet Metal Screw (Qty 2)For Rear Mount: #8-32 X 3/8 Pan Head Machine Screw Associated Parts Sold Separately:  Part Number: 137 Encore Folding Handle and Cover Kit Video to Determine Handing for Part Number 147 Operator and 137 Cover and Handle Sold Separately:   Video On How To Install Casement Operator:  Manufacture Tech Note: Proper Installation of an Operator Cover & Nested Folding Handle. When installing the cover and handle on the operator you should follow theseinstructions:• Snap the cover onto the operator base.• Place the handle onto the spline of the operator and rotate the handle to closethe window.• Lock the window in place.• Rotate the handle Ľ turn back (towards opening direction) to reduce thepressure on the operator.• If the handle needs to be positioned in a nested cover you can remove thehandle at this time and re-position it so that it will rest correctly in the nestedcover.• Tighten the set screw on the handle.• Unlock the window and cycle the sash open and closed until the handle returnsto the starting position whereby there is no additional torque required to close the sash. Note: the sash should travel to a point that the lock can easily engageand seal the window.• If the window does not come all the way into the closed position, and more forceis required on the operator to close the window, you will need to review thewindow for the following; sash sag; racked window; lock points that are notproperly aligned; or hinges not installed correctly. These issues should becorrected prior to repeating the installation of the handle onto the operatorspline.Placing the operator and the handle under high stress and abusive loads can causepermanent failures to the handle or operator as the window is repeatedly opened andclosed. Known to be used on Hurd Windows narrow Casements  9/19/05 to Present, Anderson Windows 100 Series and many other window brands Known part number: 147, 36-371EN, 36-372EN

Read more less

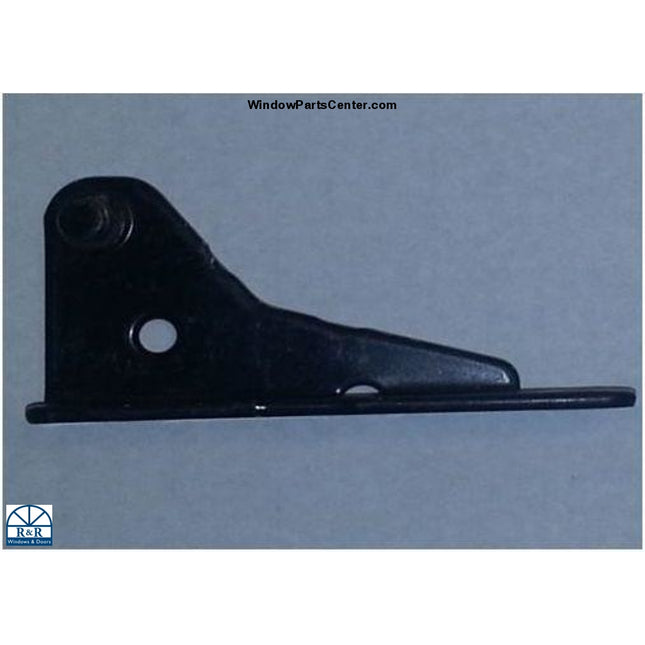

Part Number 187 Amesbury Truth Sash Bracket with Set Ring SNAP ON STUD TYPE BRACKET (see video) Style: Left hand or Right hand (see pictures to determine handing) Material: Standard and Stainless Steel (Stainless Steel not a stock item specials order no returns) Random color shipped - black or beige.New Style Sash Bracket for with Set Ring: For Truth DLX Maxim and Encore Operators.On DLX Maxim Operators Sash Bracket was black as shown in picture. On Encore Operators  sash bracket was beige. Both colors are exactly the same and interchangeable Used on Hurd Windows From 02/02/98 - Present. And many other window brands that use Amesbury Truth Parts  Related Products Sold Separately:  Part # 101 - Amesbury Truth Maxim DLX Sill Mount Casement Dual Arm Operator Part # 189 - Track Shoe – what the long arm of the #101 operator snaps onto Part # 114 - Sash Track (what the track shoe #189 slides into) Part # 121 - Adjustable Hinge – below the operator on the bottom and on top of the window when you open it. Part # 119 - Newer Encore Operators are a direct replacement/upgrade for these. See part number 119 Known Part Number: 10680.92, 12510.92,10681.92, 12511.92

Read more less

Part Number: 710 710 Current Style. See pictures and directions on how to replace. Snap On Balance Shoe Kit for Concealed Jamb Liner  Style: 710 Current Style - comes with new rivet pin as 710 is longer available and mounts in the 2nd hole of your balance bar. If you do not have the rivet installation tool you will also need to order it - Part Number S2021 and is Sold Separately  (see guide replacement instructions) Used on H3 Double Hung and Hurd Energy Saver Concealed Jamb Liner Double Hung and Single Hung Windows.327 Old Style NLA - Over All Dimension 1-15/16" L x 19/32" W x 11/16" D Associated Products Sold Separately:  Part Number S2021 - Rivet Setting Tool Part Number S2022 - Sash Balance Guide Rivets

Read more less

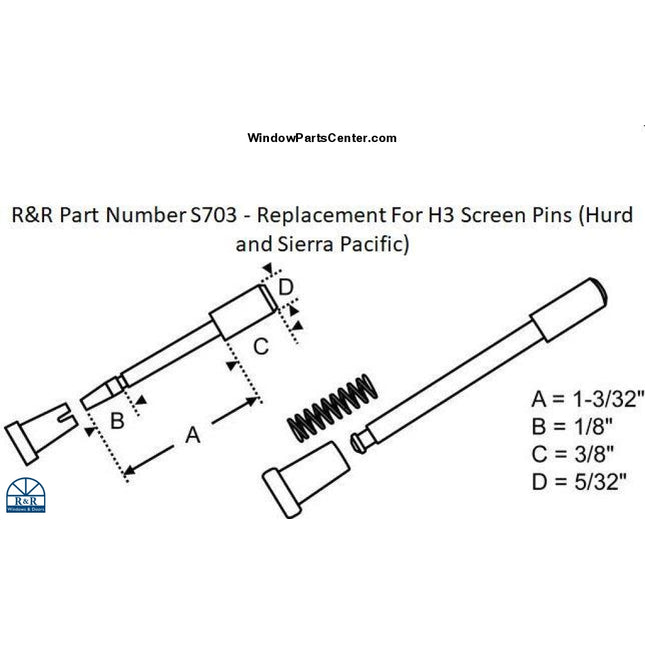

Part Number S703Sold in Packs of 25 Comes With 25 of each: Plunger, Cap and SpringColor Cap: White or Black Cap Version Information:5/32 Inch Plunger AssemblyDimensions:A = 7 3/32"B - 1/8"C = 3/8"D = 5/32" S703 works as a replacement option for Hurd and Sierra Pacific H3 Clear Cap Version Discontinued in 2021 (old discounted part number 703)
