Description
Special order items estimated lead time 2-6 weeks. No returns or order cancellations
Part Number: S4114

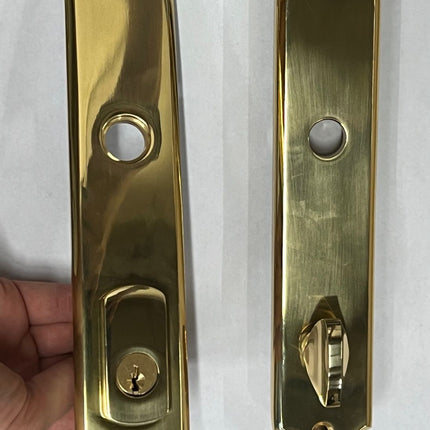

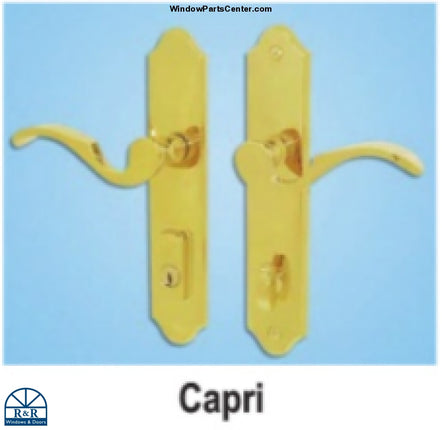

GU Ferco 45MM Capri Lever Swinging Door Handles Trim Sets - Handle Above Cylinder
Handle trim Set only Capri Lever Handle Above Cylinder Style (as pictured for 1 door panel) - multi or single point mortise boxes sold separately
-

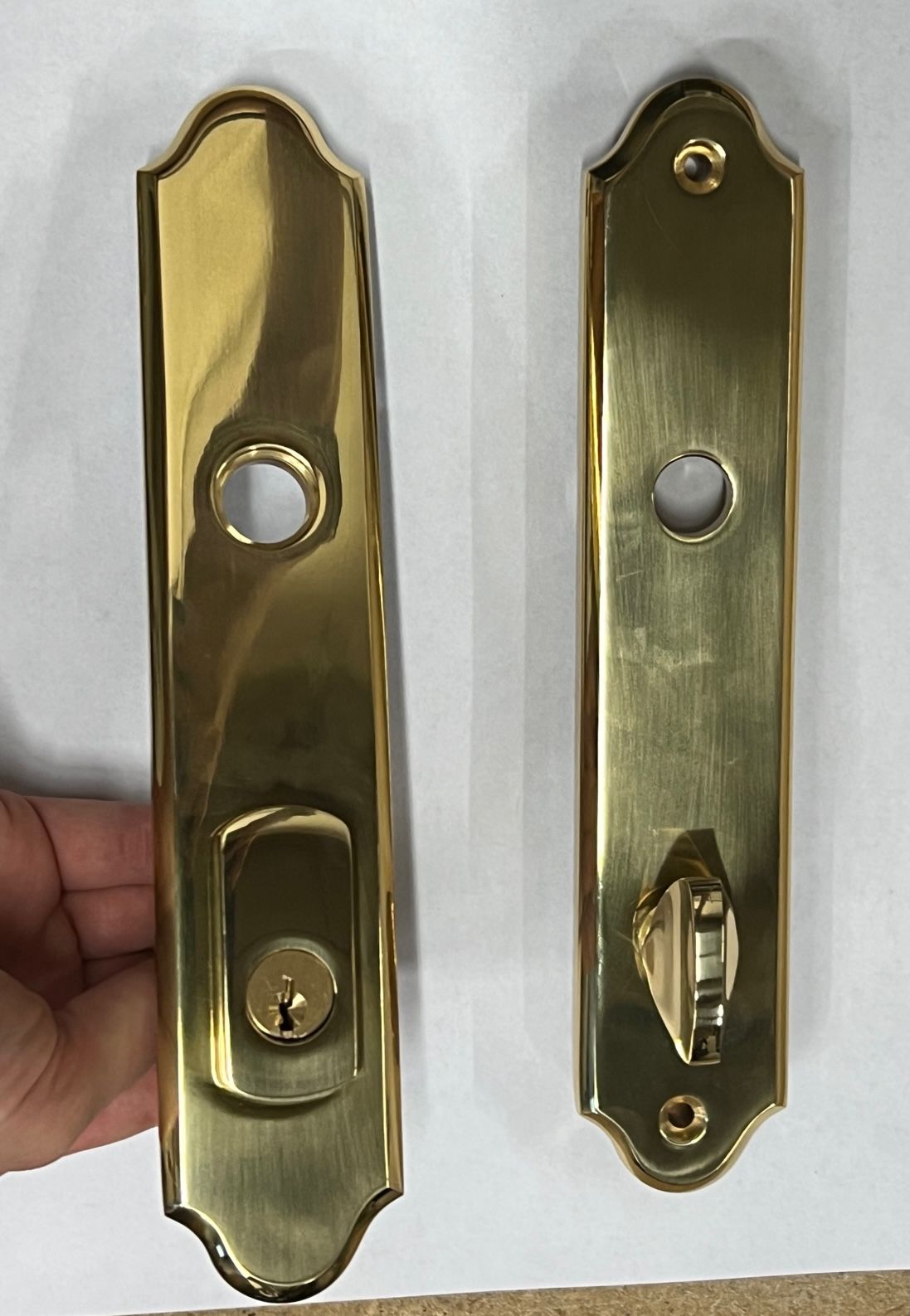

45 MM Trim Plate

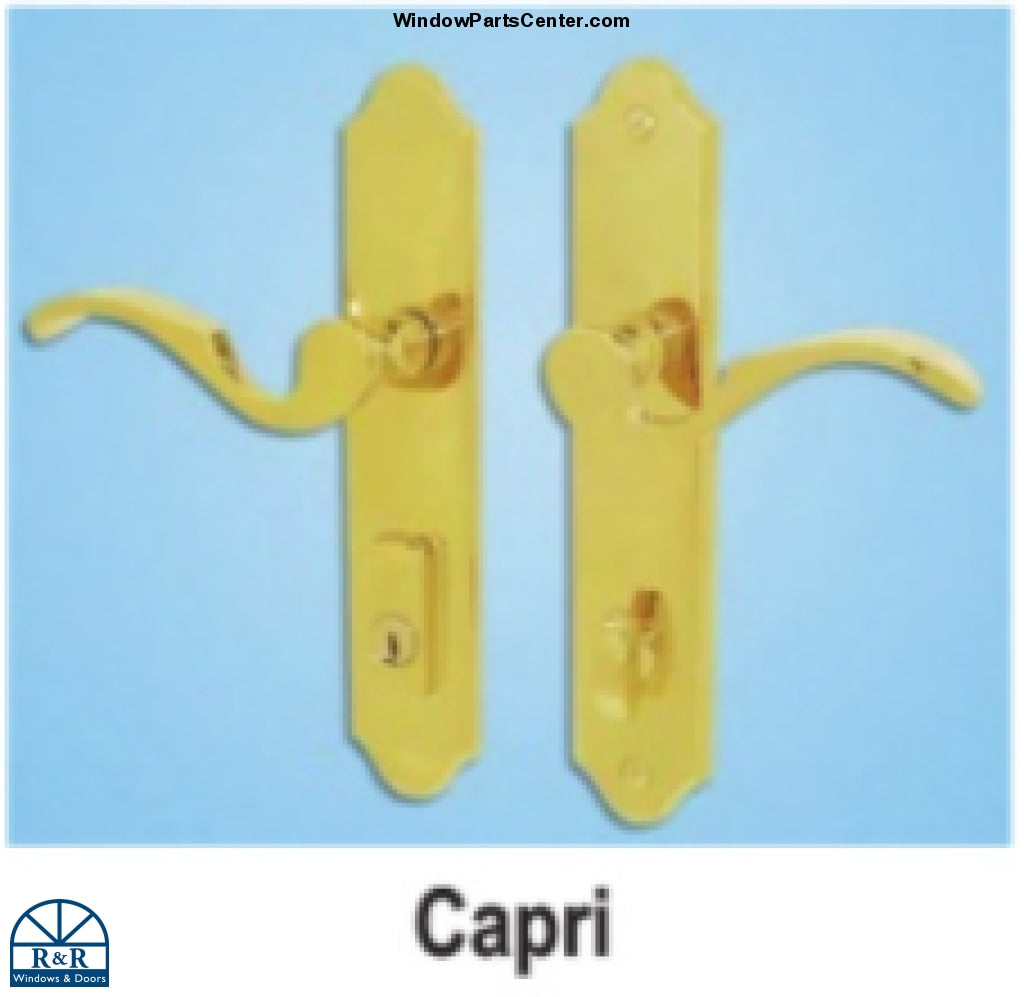

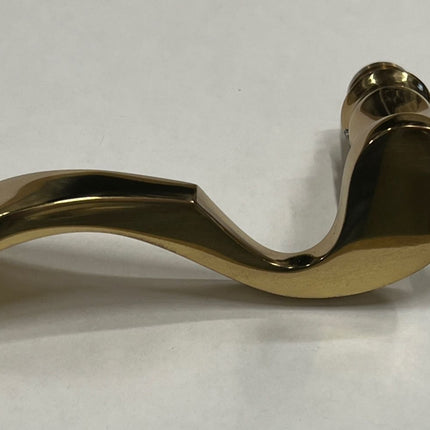

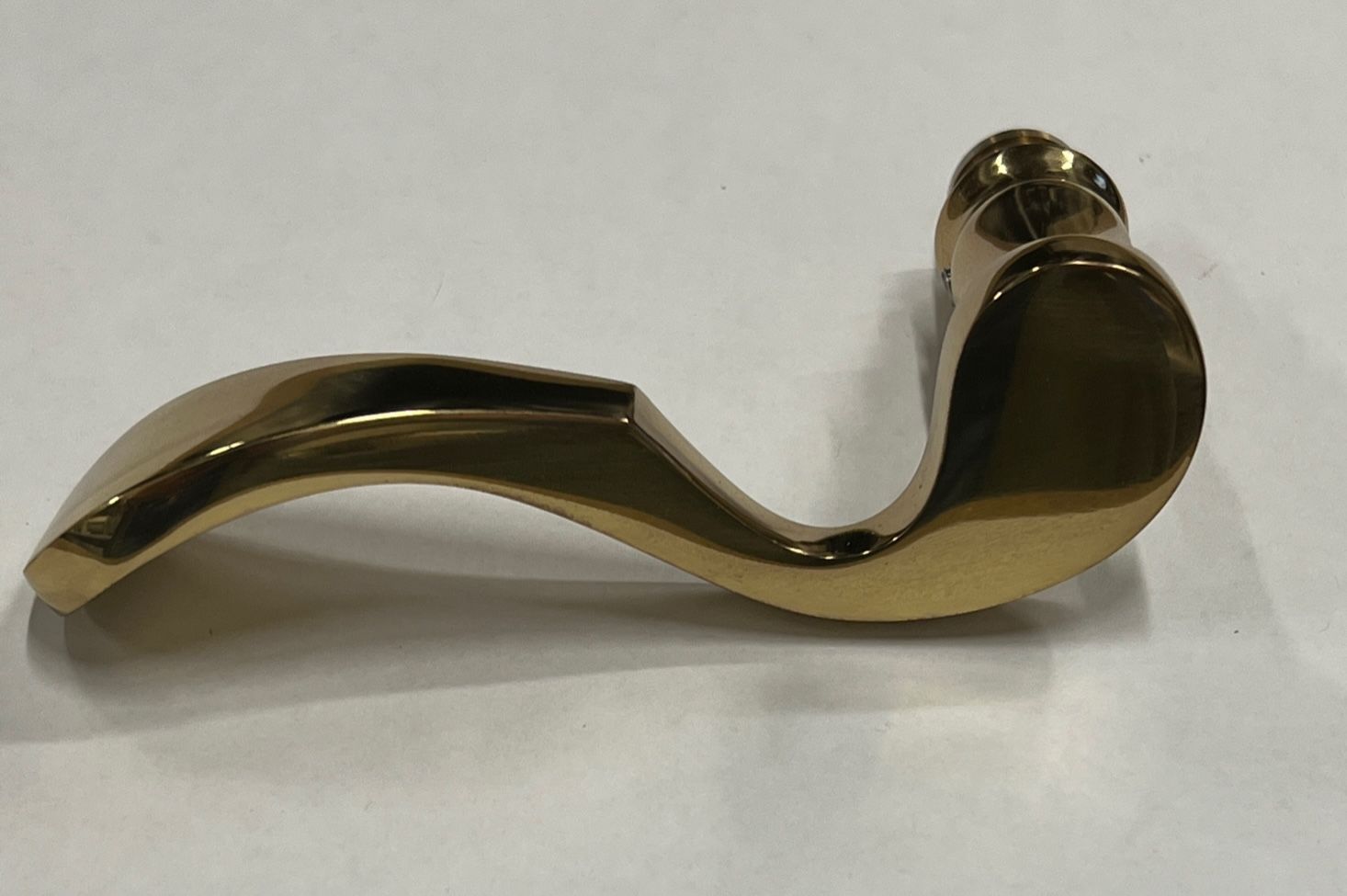

- Capri Lever
- Handle Above Cylinder
- Solid Brass or Zamac Trim Sets
- Stainless steel set screw on levers to secure spindle
- US cylinder with standard Schlege "c" keyway (active only)
- 90 degree locking with thrumb turn (for active and semi active)
- Unassembled kit for 1 3/4" and 2 1/4" thick doors
- Self- Centering Spindle
- Use with Mortise lock, SECURY S2, SH2 and SECURY Automatic Door Gears
- Patented handle clipping system.

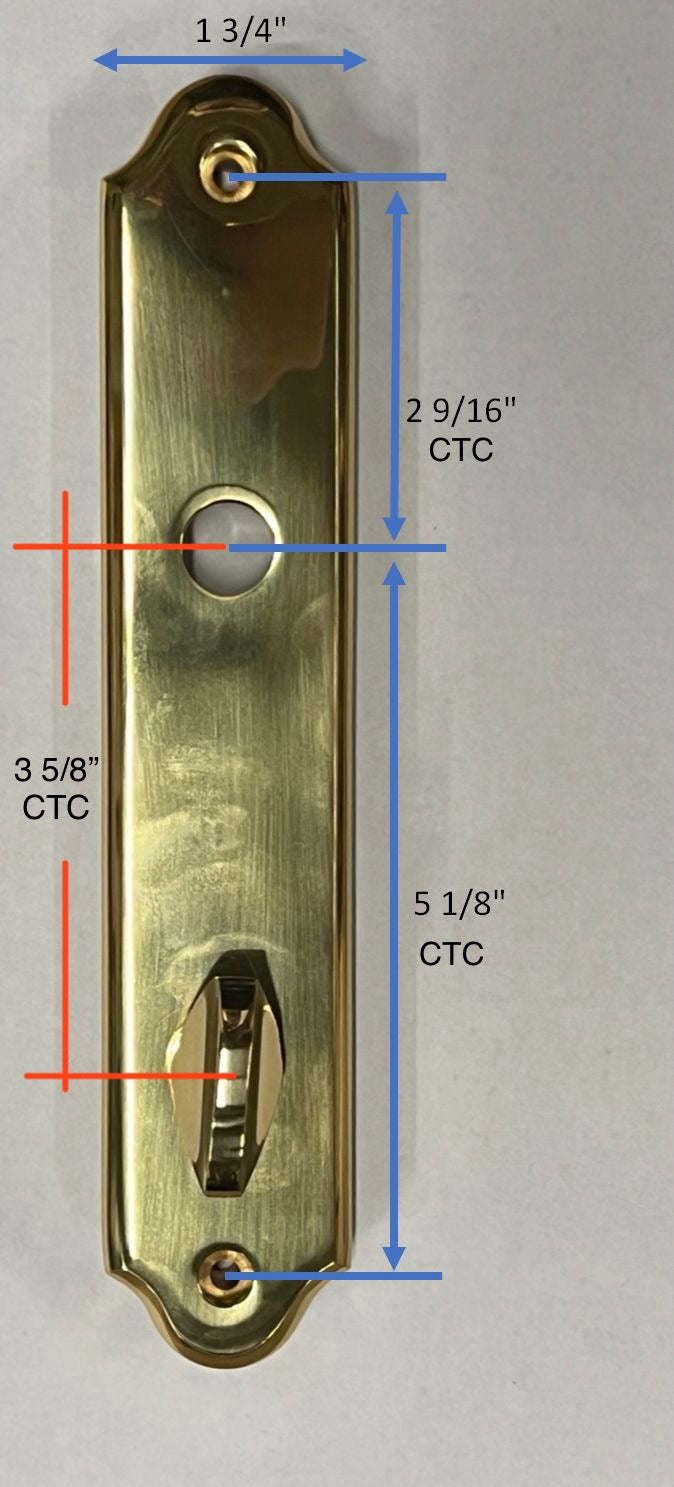

- Screw Hole Spacing: 7-3/4 inch
Zamac Available in: Dark Bronze, Black and White
Solid Brass Available In: Satin Chrome, Polished Brass, Antique Brass, Oil Rubbed Bronze, Satin Nickel, Dark Bronze, Pewter and Black

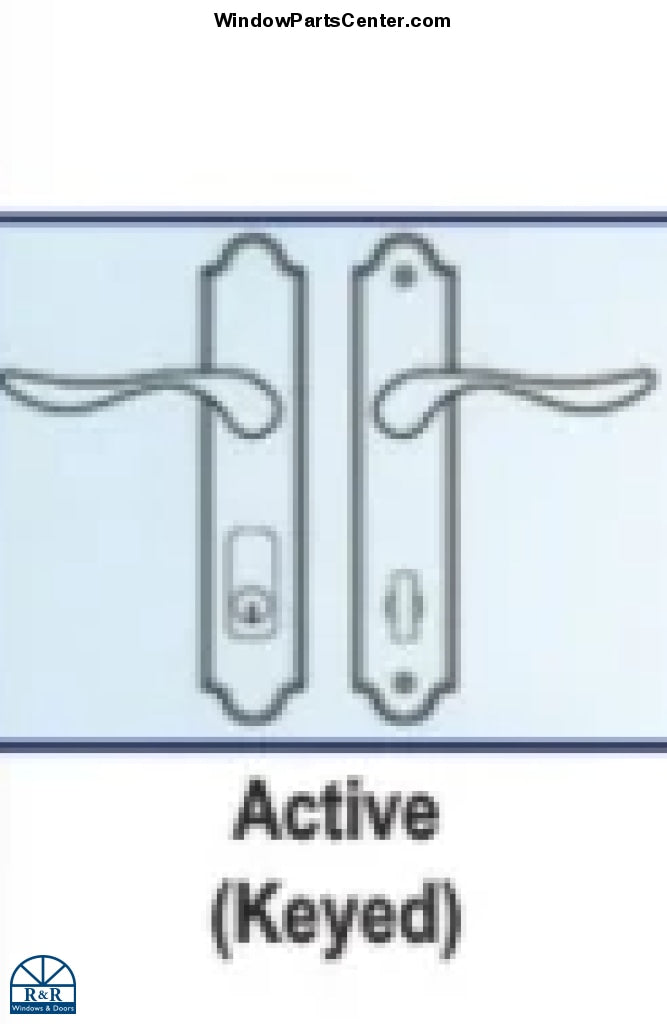

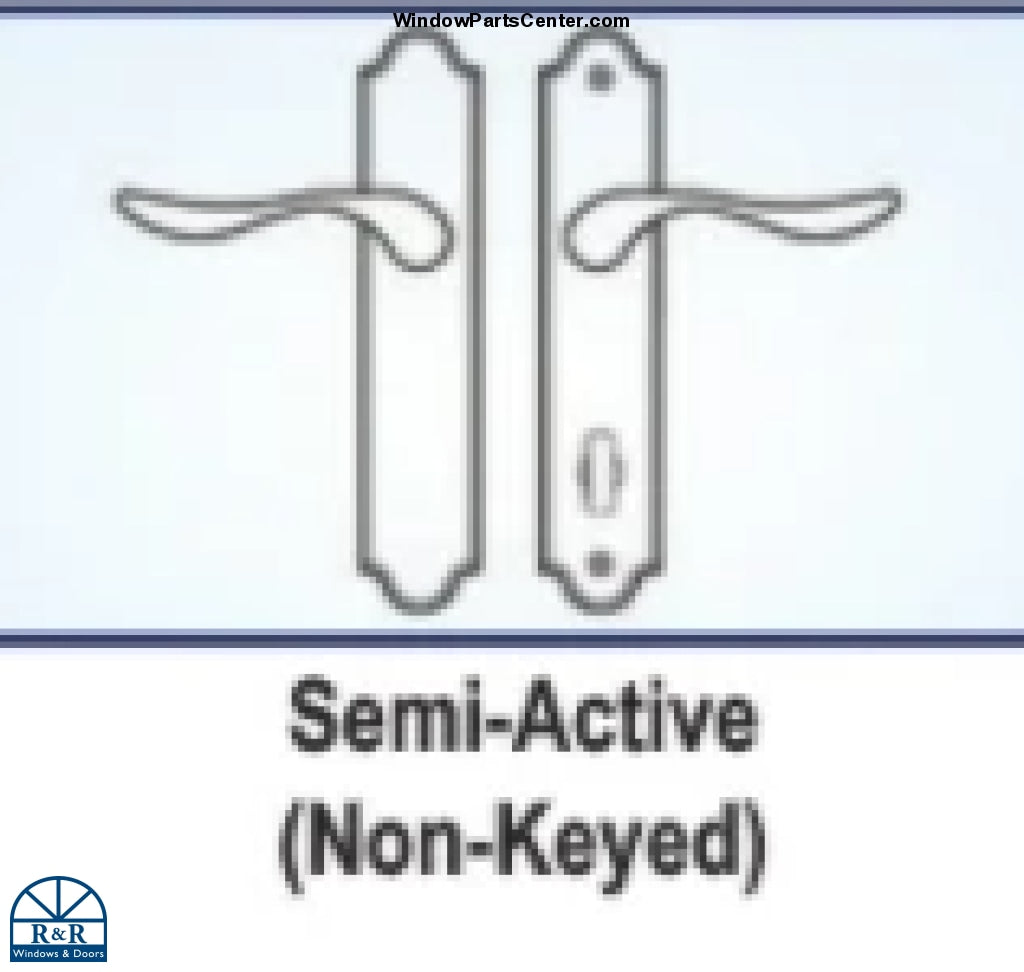

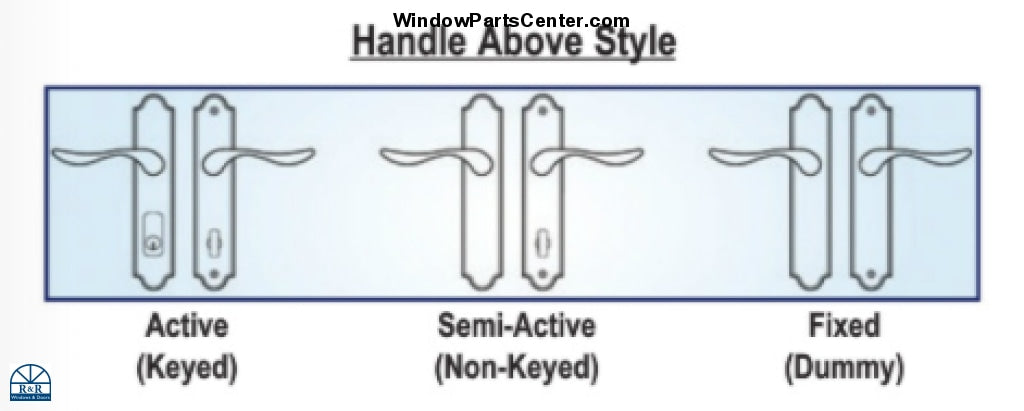

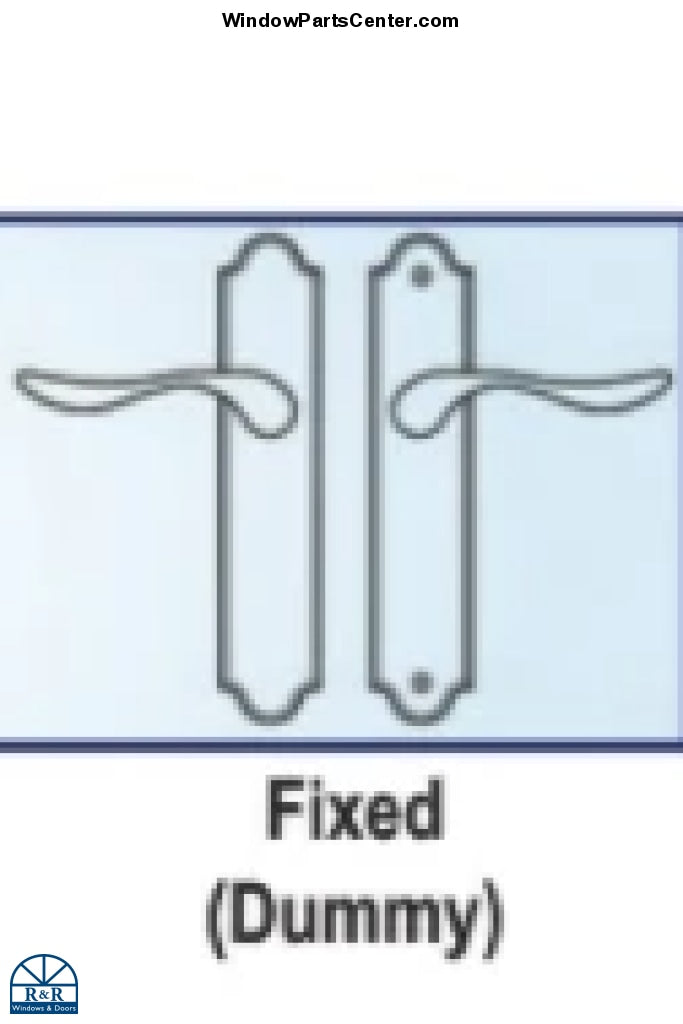

Style: Active, Semi Active and Dummy

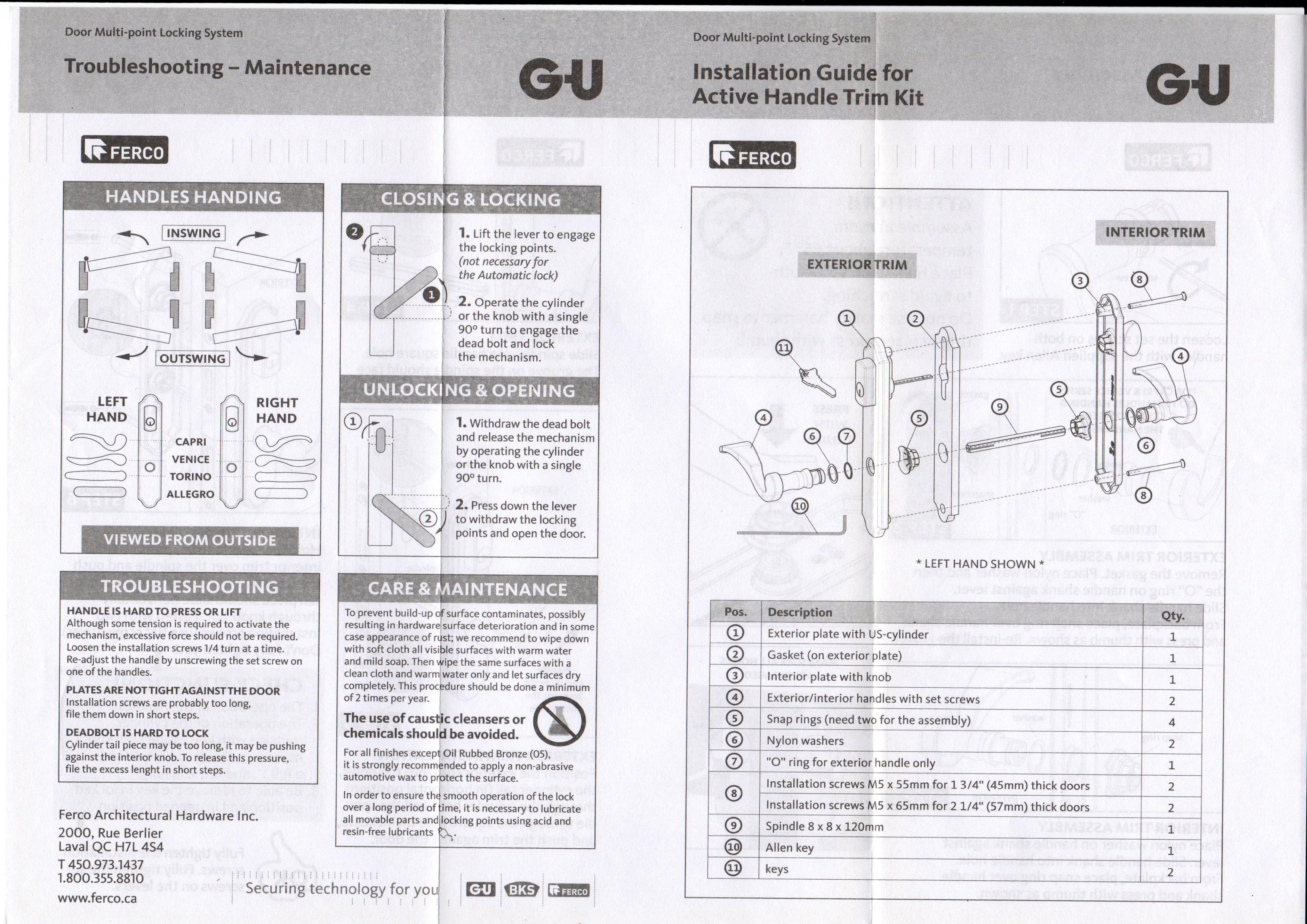

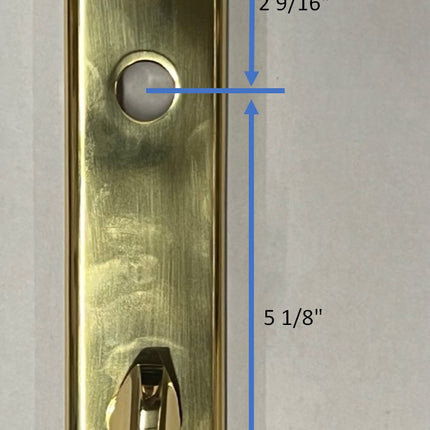

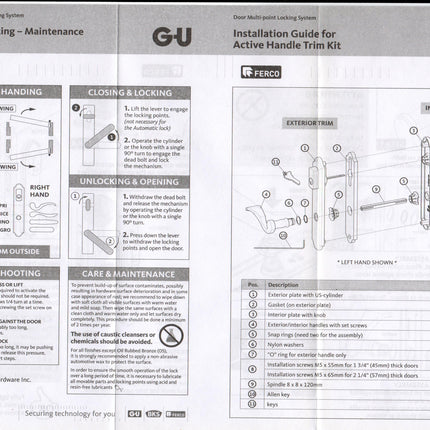

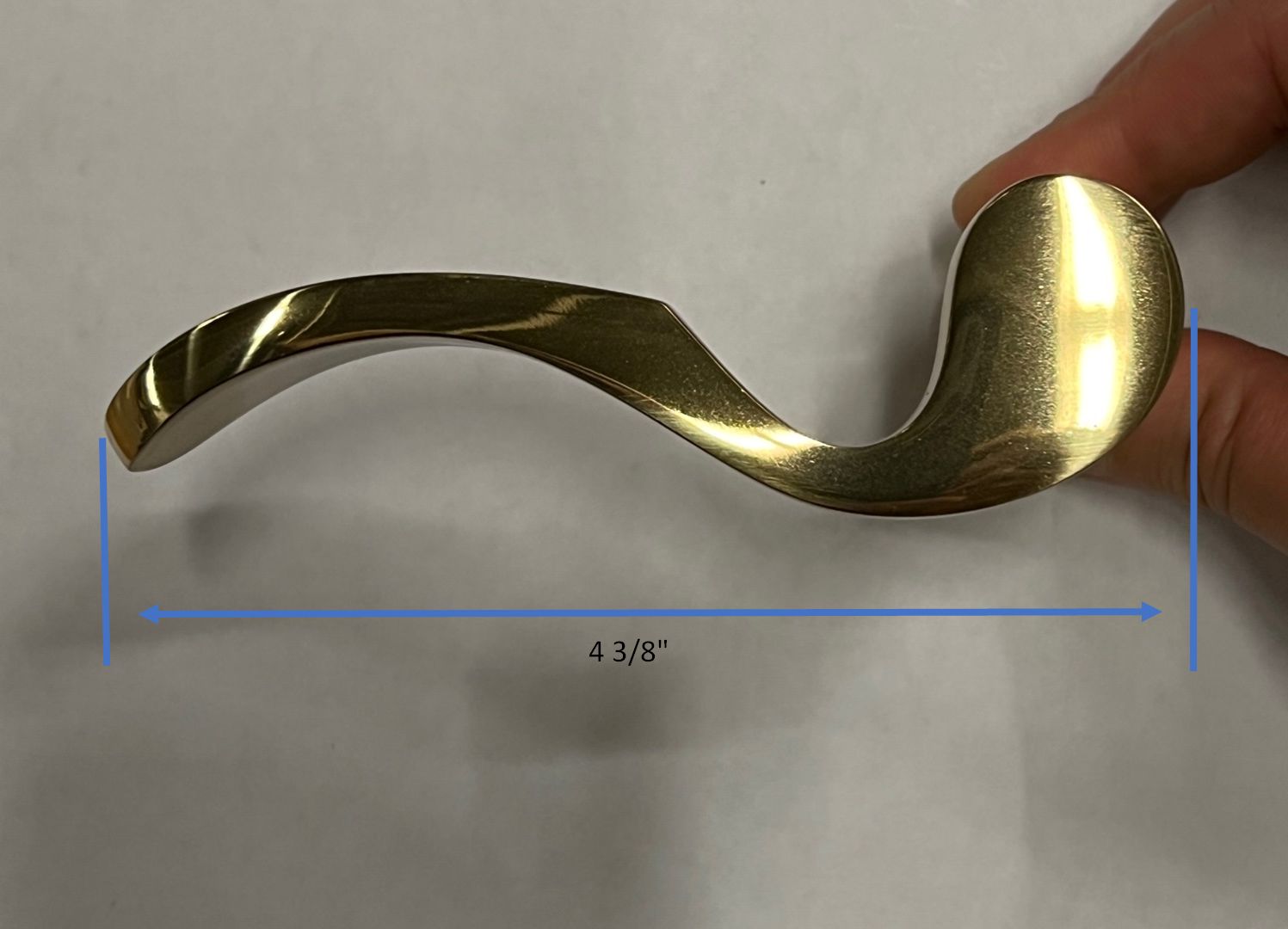

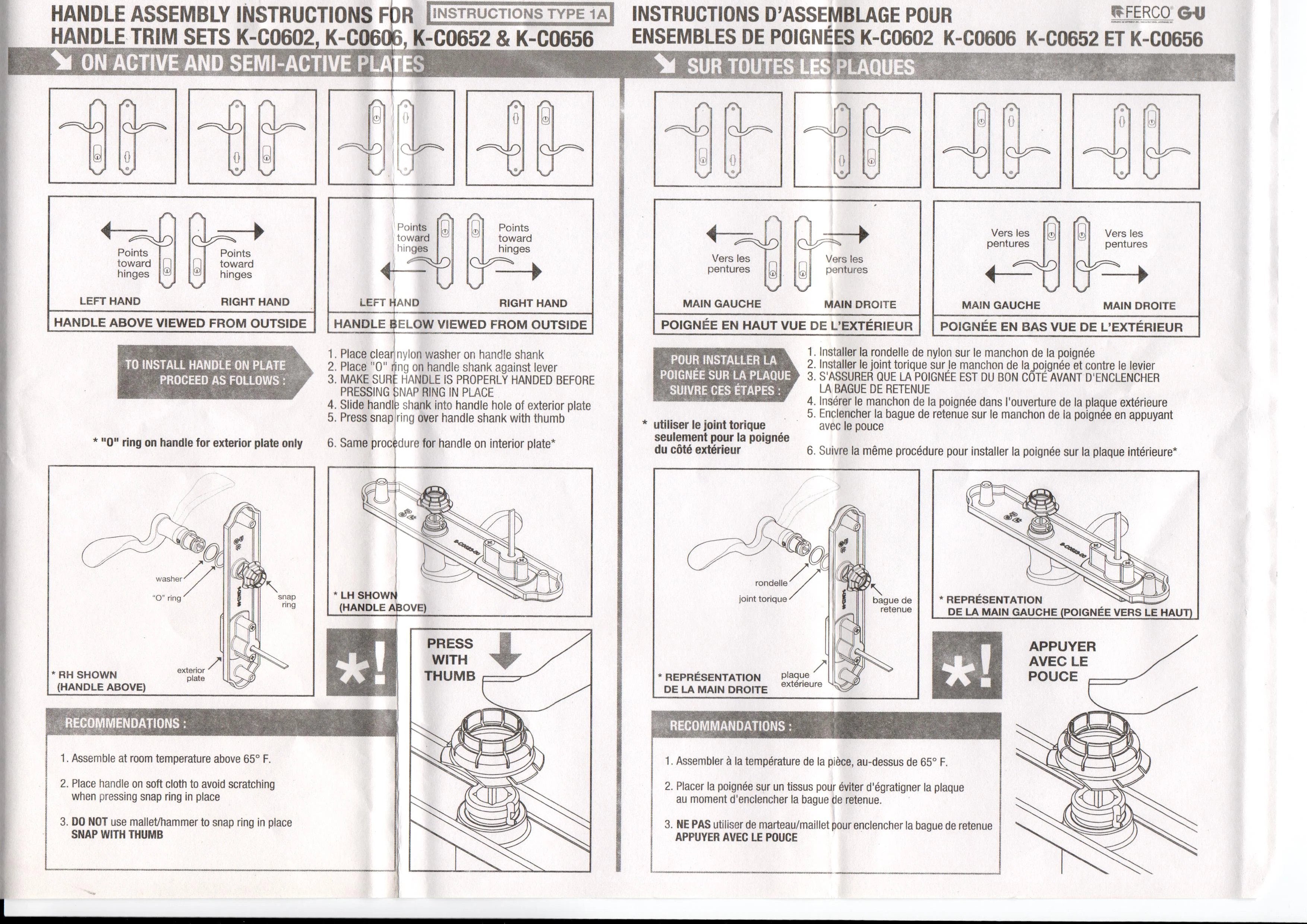

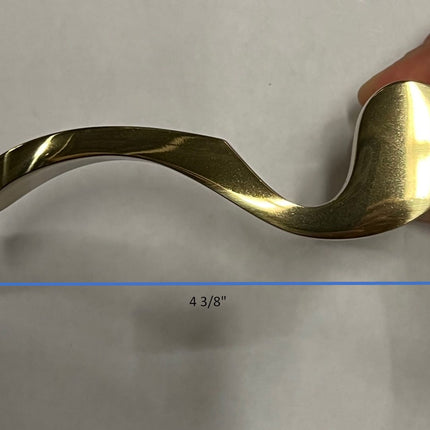

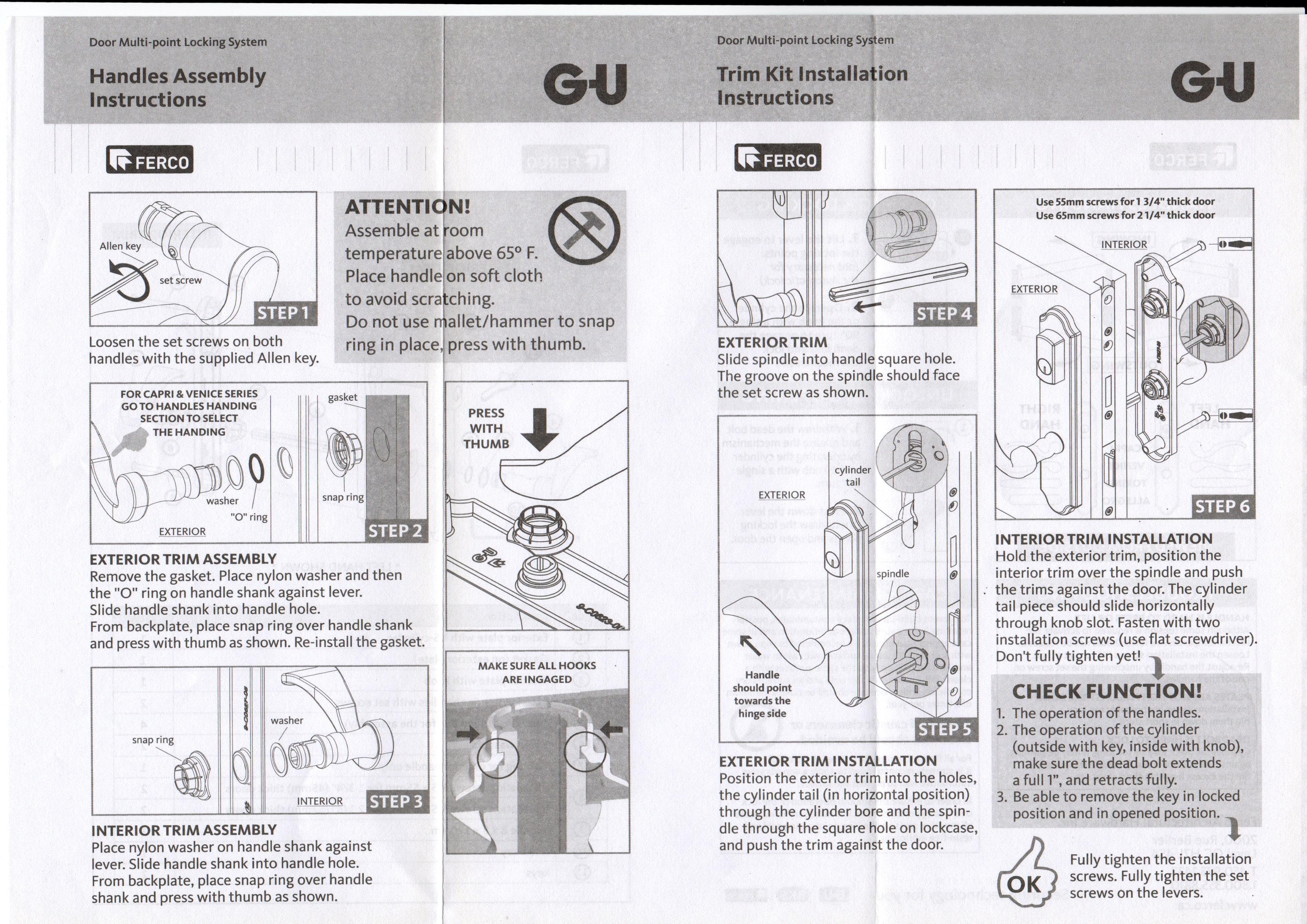

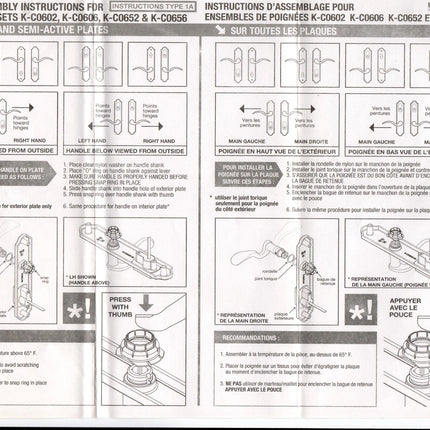

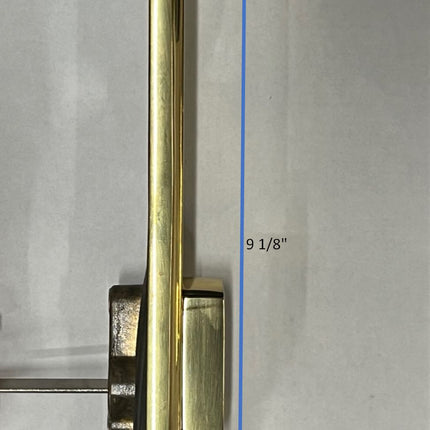

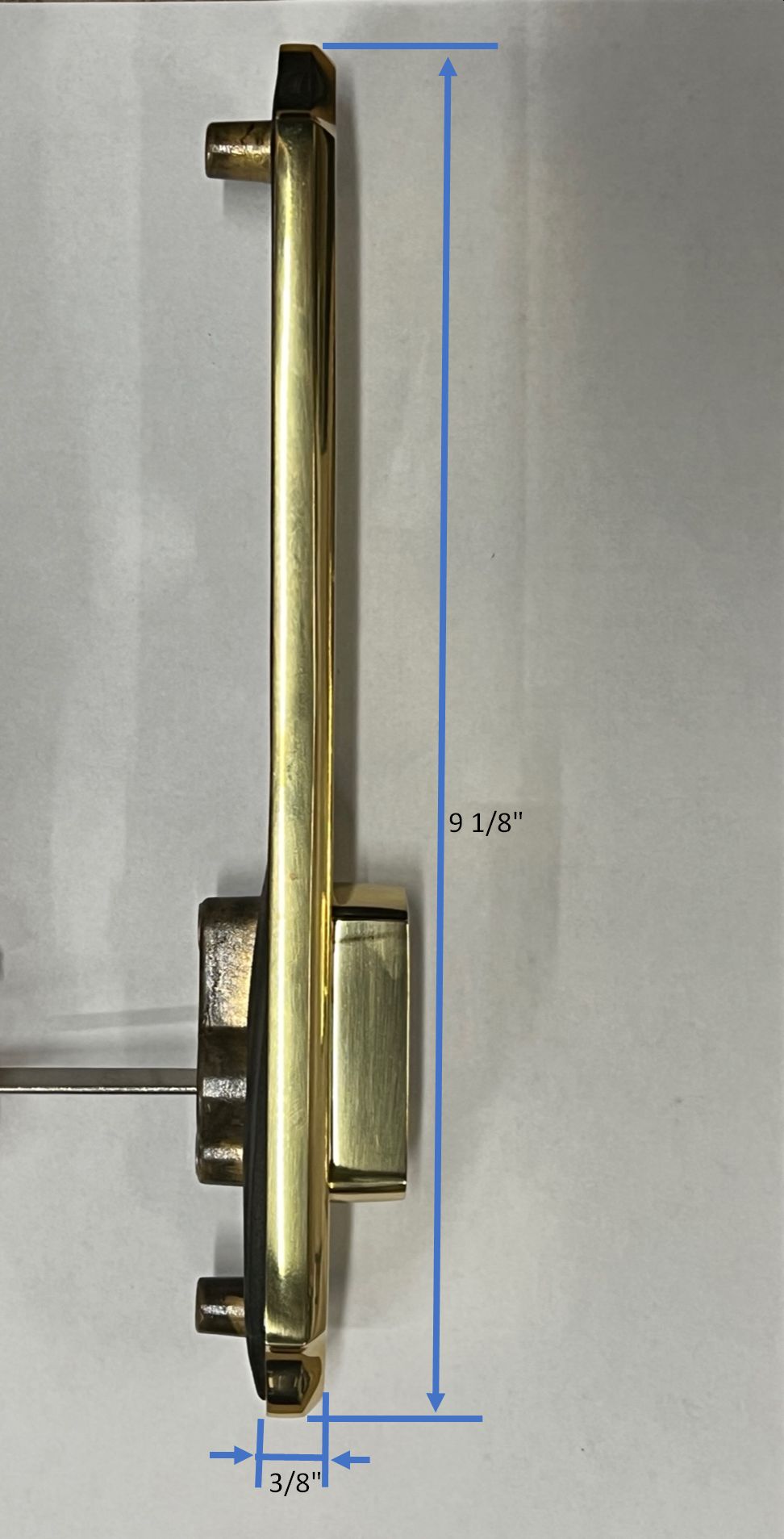

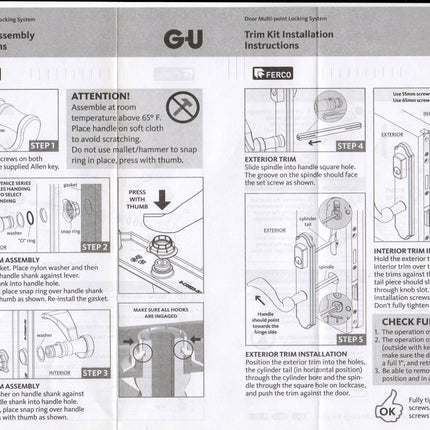

Scroll thru pictures for dimentions and manufacture installation and trouble shooting instructions.
