Description
Part Number: S4112

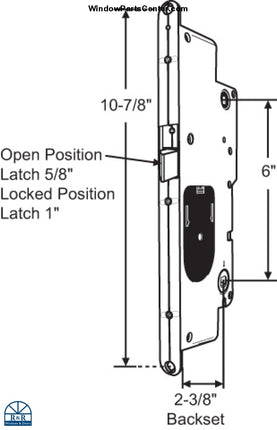

W&F Multipoint Mortise Lock 2-3/8IN BACKSET For 6 Inch handle
Used On: MULTIPOINT MORTISE LOCK
2-3/8IN BACKSET 6IN HANDLE
TO CYLINDER PEACHTREE
CITADEL IPD AND CITATION
high performance stamped on side of mortise lock box.
U.S. PATENT NO’S 5,290,077 5,388,875
Color: Older ones are a gold color where the current version is more green. Green is a direct replacement for the gold.
Non handed - See how to video below. the mortise is reversible for your door handing and also has a interior plastic release. To reverse the lock direction - remove the side plastic covers and swamping the internal cams - side to side. The lock bolt can also be reversed by extend the bolt and slide off the bolt base.
This center mortise lock rotates 50 degrees to retract the bolt. The mortise lock works with all handle sets designed for this lock system [1993-2002].
Replacement handle bushing kit [SKU 56-115] and Auxiliary Lock module springs are recommended parts when replacing the center lock mortise.
DO NOT TAKE APART THE MORTSE LOCK BOX OR REMOVE ANY SCREWS- THERE ARE NO REPLACEABLE PARTS INSIDE THIS LOCK BOX. ANY ALTERATION OR DISASSEMBLY OF THIS LOCK WILL VOID ANY RETURN POLICY. ALL MORTSE LOCKS ARE CHECKED FOR FUNCTION PRIOR TO SHIPMENT.
Associated Parts Sold Separately:
S4112TK - Alignment Key Tool - System Rod Timing Key
D301 W&F Trilennium multipoint 6 Inch CTC Replacement Handle Set
S4112 - Peachtree Multipoint Mortise Lock Citadel IPD Citation W&F
S4115 Peachtree W&F Peachtree Citadel Swing Patio Door Multipoint Lock
