Description
Part Number: S4016 - Truths Sentry Adjustable Hinges - Set Hinges
If not in stock but a pre order item then it’s a Special order Item No Returns
Screws Not Included
Engineered for maximum strength and security, Sentry Hinges exceed ANSI grade 3 requirements for
doors weighing up to 220 lbs. Sentry Hinges exceed ANSI grade 1 impact specifications. Sentry Hinges are
made of extruded brass and extruded aluminum that provides superior strength and corrosion resistance.
Sentry Hinges provided with non-removable pins for maximum security.
- Robust, Reliable and Attractive

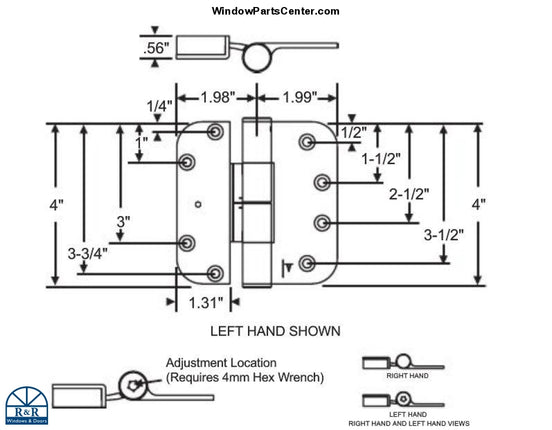

- Industry standard 4" x 4" with 5/8" radius corner
- Both Guide (Part # S4015) and Set (Part # S4016) Hinges take a 5/32" hex wrench
- Guide Hinge (Part # S4015) has a 11/64" adjustment and Set Hinge (Part # S4016) has a 1/4" adjustment

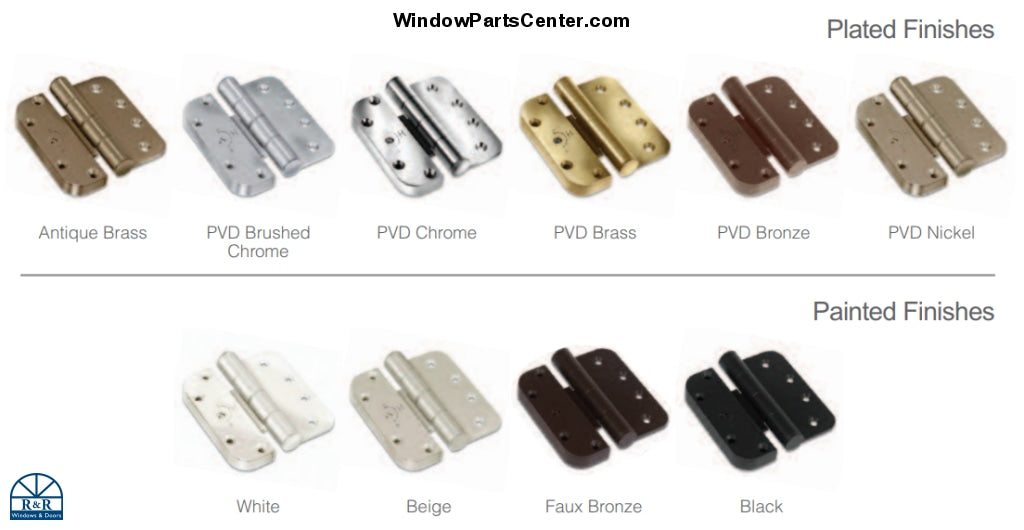

- Extruded brass hinges are provided in decorative finishes including PVD
- Extruded aluminum hinges are available in powder coated painted finishes
- Composite bushings provide noise-free operation
Set and Guide Hinge Placement:
3 Hinges Per Door Panel:
Starting at top of door Top of door
Guide
Set
Guide
4 Hinges Per Door Panel:
Anytime you need 4 hinges you would just add another guide hinge
Starting at top of door Top of door
Guide
Guide
Set
Guide
The Set hinge no matter what is always the 2nd from the bottom
Pro Tip: Remove weight from the hinges by lifting up on the door before you adjust.
