Part Number: S4012 – Guide Hinge

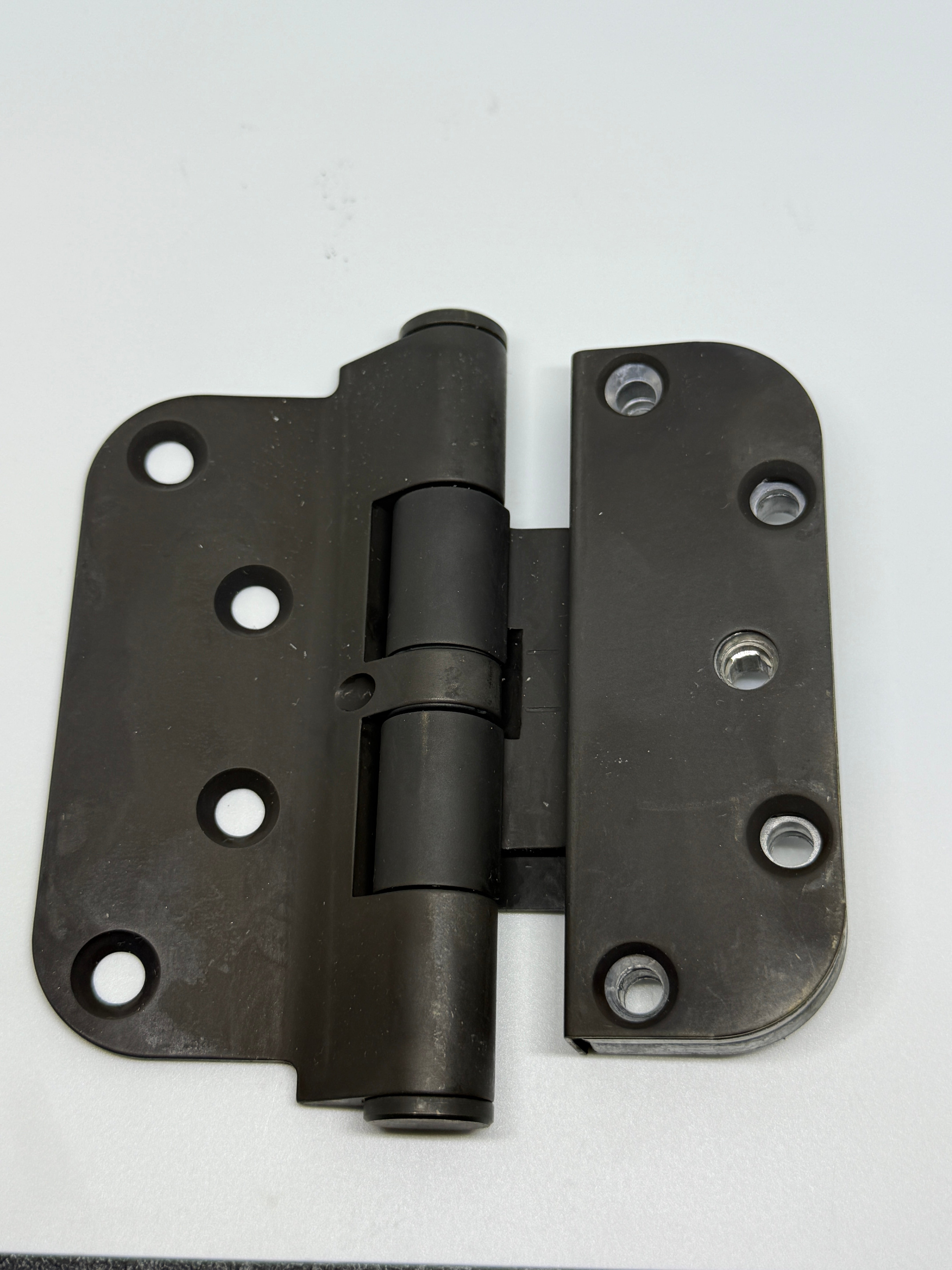

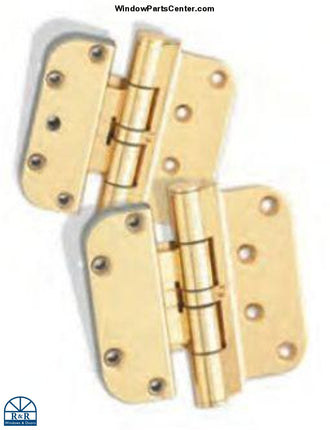

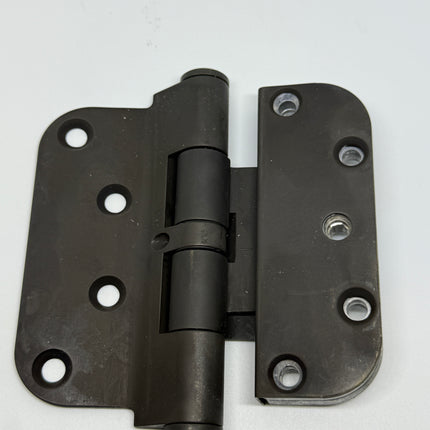

Hoppe Adjustable Hinge - Guide Hinge - Non Removable Pin Style.
S4012 is Horizontal Adjustment Only (Watch video and read instructions in picture's)
No Screws Included, sold individually
GUIDE HINGES ARE NOT HANDED. Will work on both LH and RH Doors by how you mount the hinge
If not in stock - Pre Order - Special order item - no return 3-8 week lead time
Made out of Brass or Aluminum. Multiple finishes to choose from.
Designed for a Greater Advantage
• To Adjust vertically (Use Set Hinge Part # S4011) and for horizontally (Use Guide Hinge Part # S4012) by 1/8" for a perfect swing. See Installation Set and Guide Hinge Placement
• Brass hinges feature finial caps as shown
• Aluminum hinges feature flush caps.
• Large 3/16" hex head screws make adjustments effortless. Remove the finial in the set hinge
to access the hex screw.
• Single pass routing for quick and easy installation.
• All Set and Guide Hinges are equipped with non-removable pins for security, making HOPPE
Adjustable Hinges the ideal solution for both inswing and outswing doors.
• Especially designed for larger doors, with a panel weight capacity of up to 330 lbs.
Tested to a Higher Standard
• Brass hinges are tested beyond an impressive 2.5 million cycles, in accordance with
ANSI A156.1 Grade 1 – Commercial test procedures.
• Backed by HOPPE's Limited Lifetime Mechanical Warranty.
Finished with Superior Quality
HOPPE's Brass and Aluminum Hinges are outstanding corrosion resistant materials
HOPPE uses their Resista® Limited Lifetime Finish Warranty on four of their select premium
finishes. The Aluminum Hinges have a high quality powder coating finish.
Installation Set and Guide Hinge Placement:
3 Hinges Per Door Panel Up to 165 lbs: Starting at top of door Top of door
- Guide (Use Part# S4012)
- Set (Use Part# S4011)
- Guide (Use Part# S4012)
4 Hinges Per Door Panel Up To 165 lbs:
Starting at top of door Top of door
- Guide (Use Part # S4012)
- Guide (Use Part # S4012)
- Set (Use Part# S4011)
- Guide (Use Part # S4012)
4 Hinge Per Door Panel 165-330 lbs Starting at top of door Top of door
- Guide (Use Part # S4012)
- Set (Use Part# S4011)
- Set (Use Part# S4011)
- Guide (Use Part # S4012)
5 Hinges Per Door Panel Up To 165-330 lbs:
Starting at top of door Top of door
- Guide (Use Part # S4012)
- Guide (Use Part # S4012)
- Set (Use Part# S4011)
- Set (Use Part# S4011)
- Guide (Use Part # S4012)
The Set hinge no matter what is always the 2nd from the bottom
Pro Tip: Remove weight from the hinges by lifting up on the door before you adjust.
Known to have been used on Sierra Pacific Doors and Ashworth
