Description
Part Number: S4011 - SET Hinge

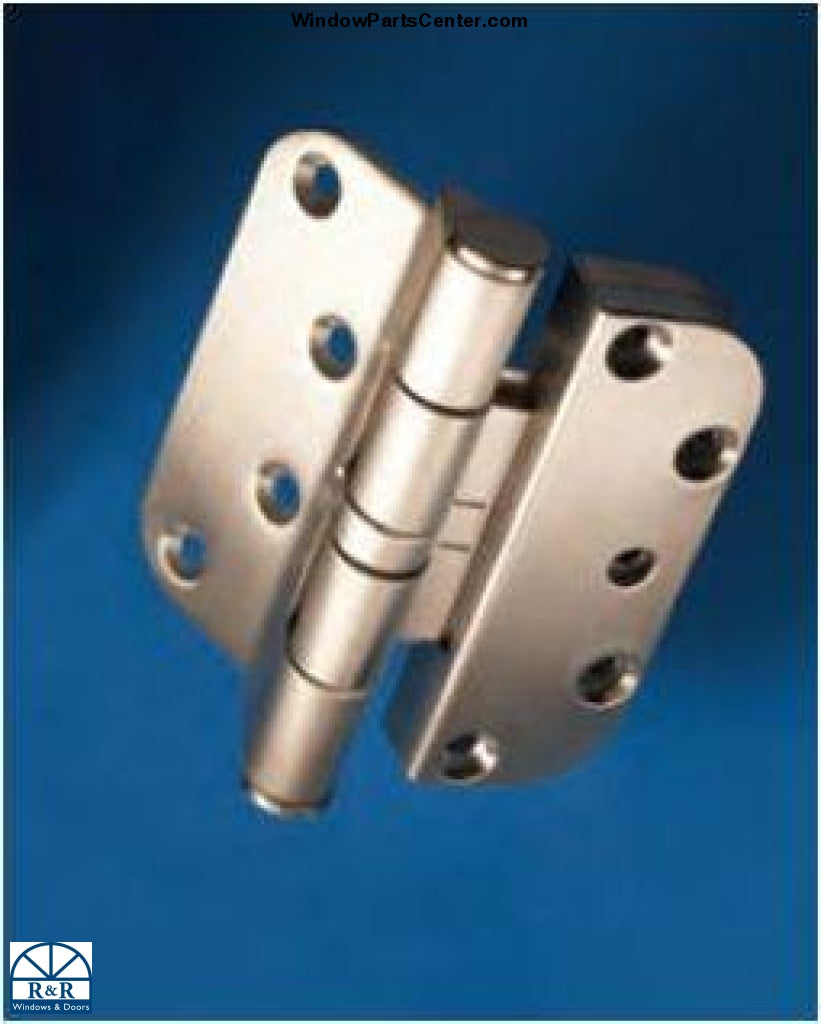

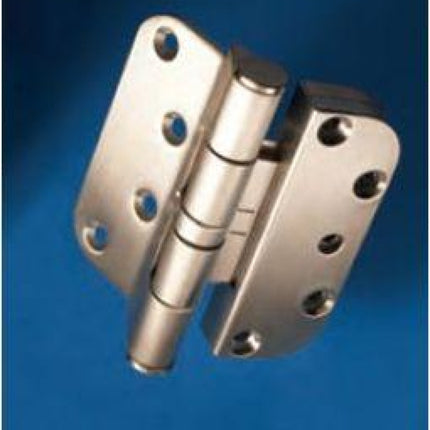

Hoppe Adjustable Door Hinge Non Removable Hinge - Set Hinge Vertical Adjustment

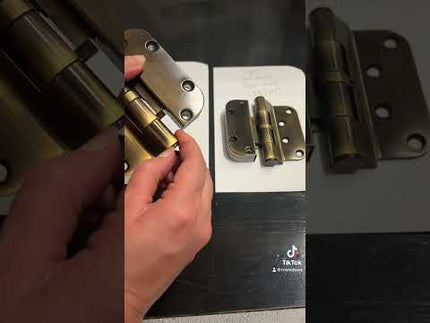

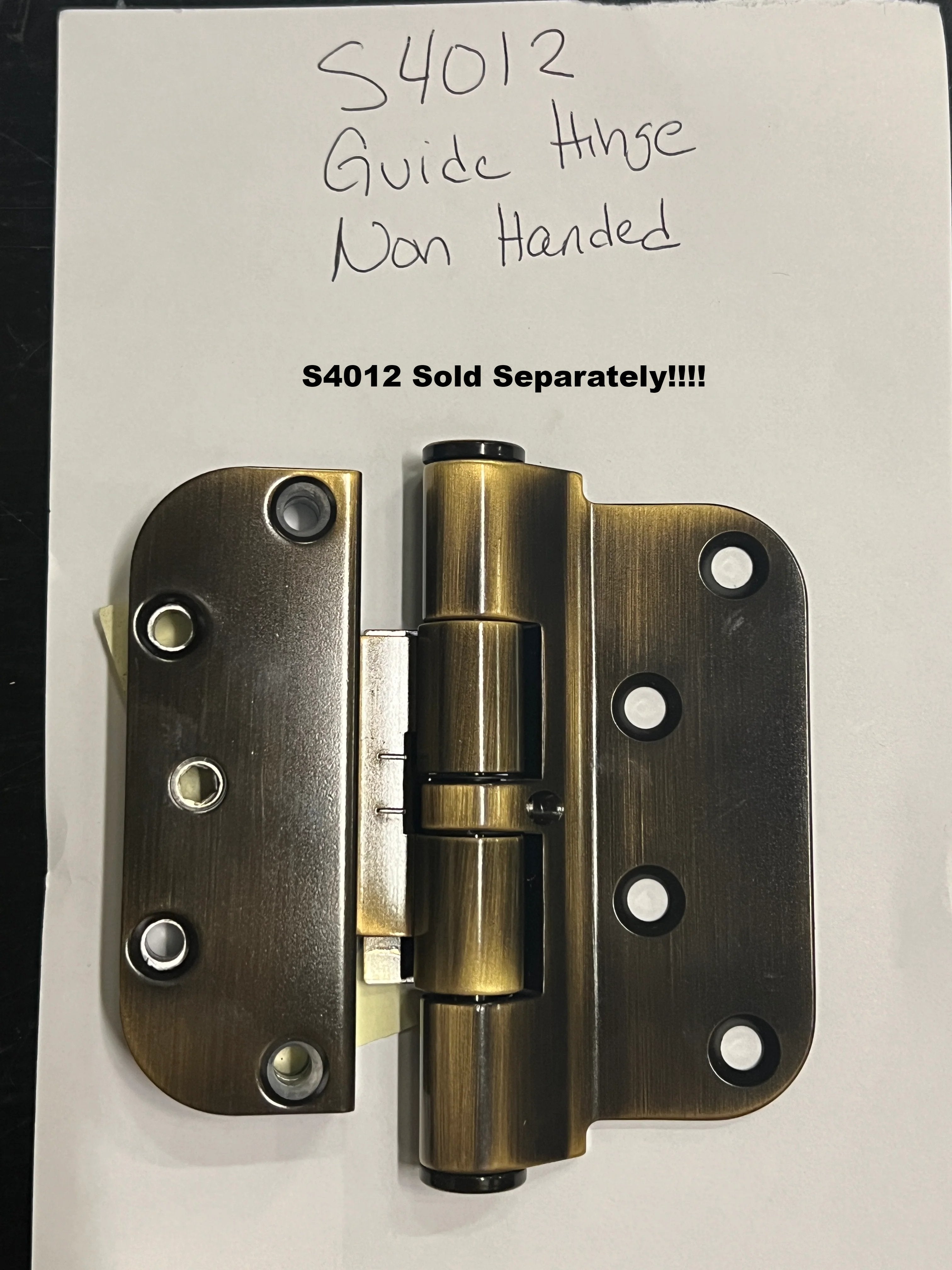

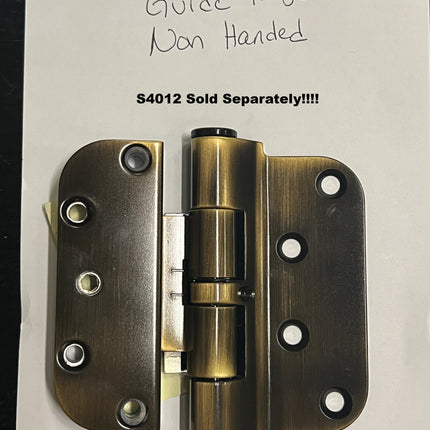

S4011 is Vertical Adjustment ONLY Watch video and read instructions in pictures (For Horizontal adjustment see part number S4012 Sold Separately and see hinge placement guide in picture)
No Screws Included, sold individually
Handing:
-

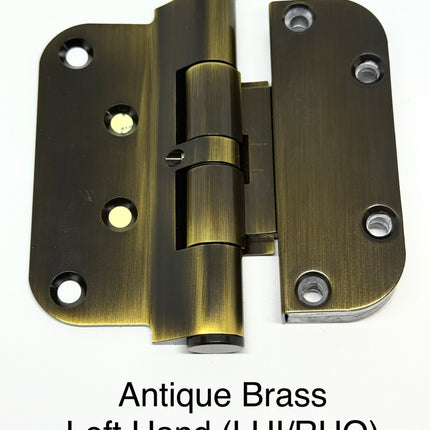

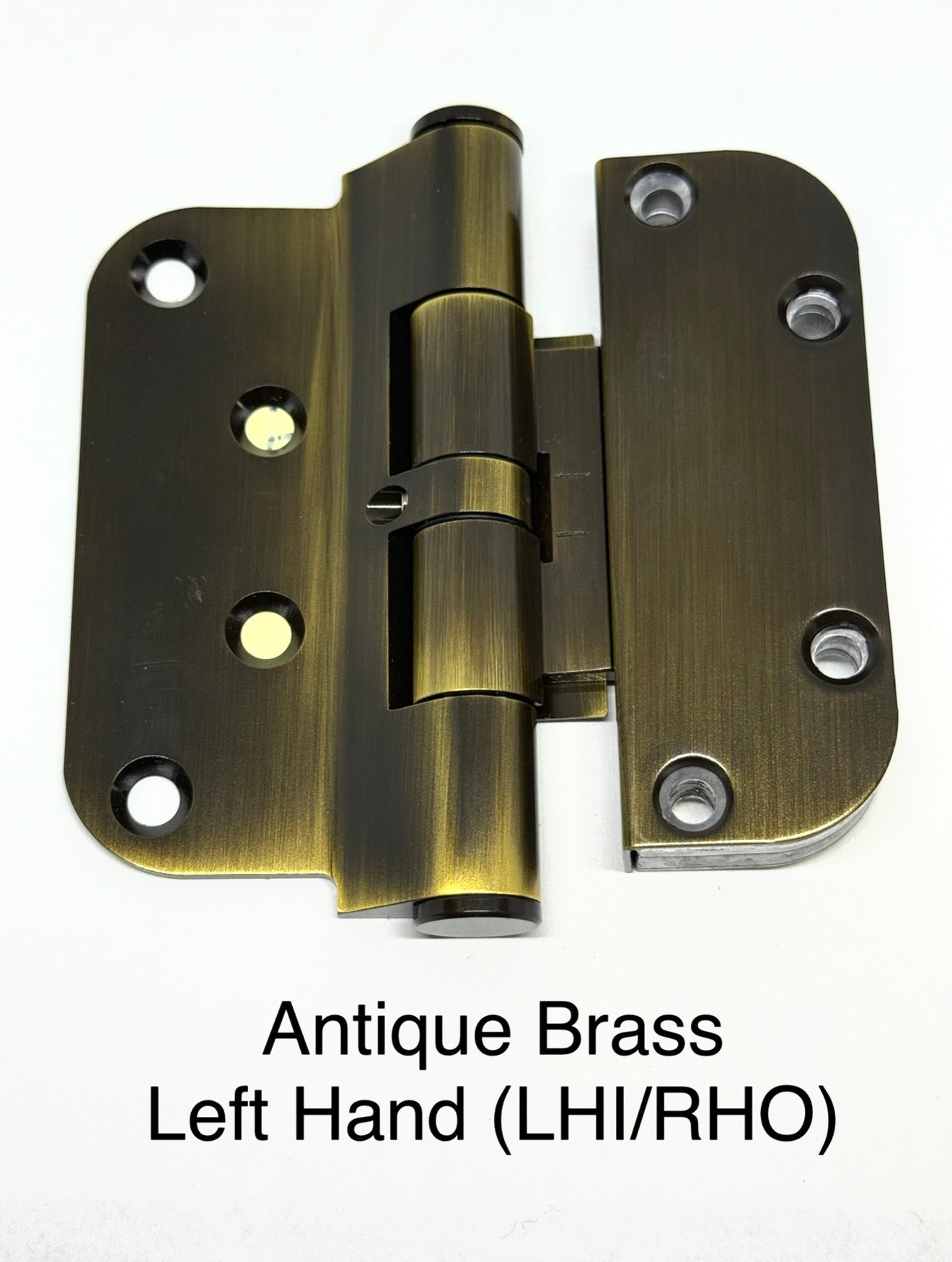

Left Hand Hinge Used For: Left Hand In swinging (LHI) or Right Hand Out Swinging (RHO)
-

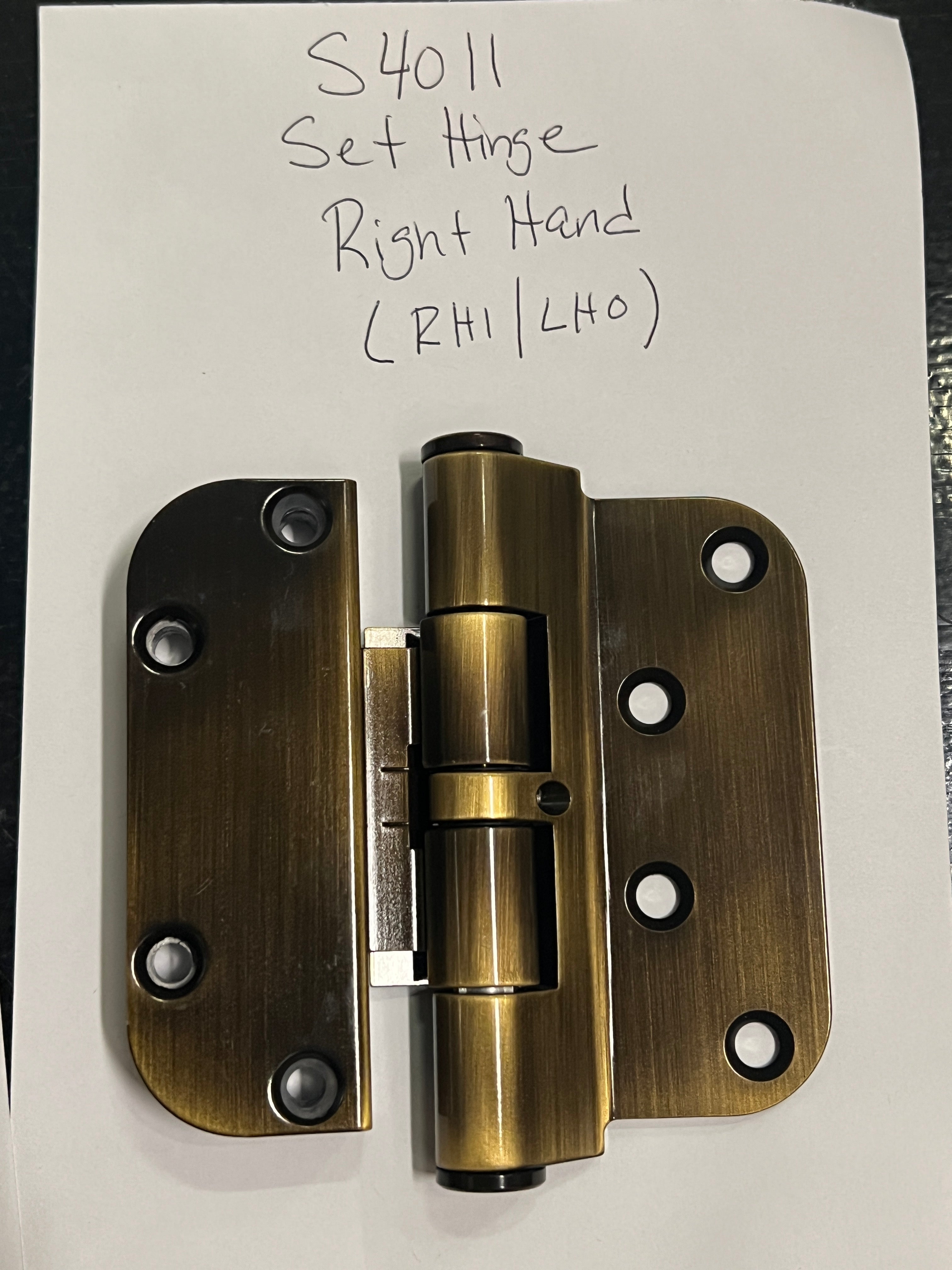

Right Hand Hinge Used For: Right Hand In Swinging (RHI) Left Hand Out Swinging (LHO)

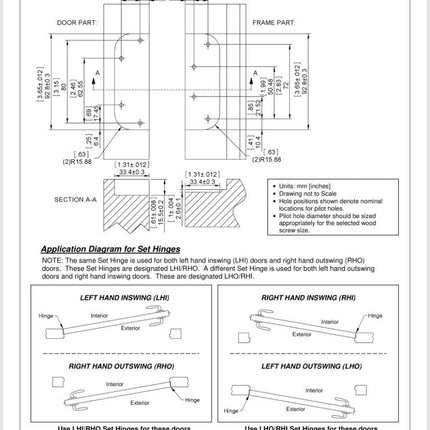

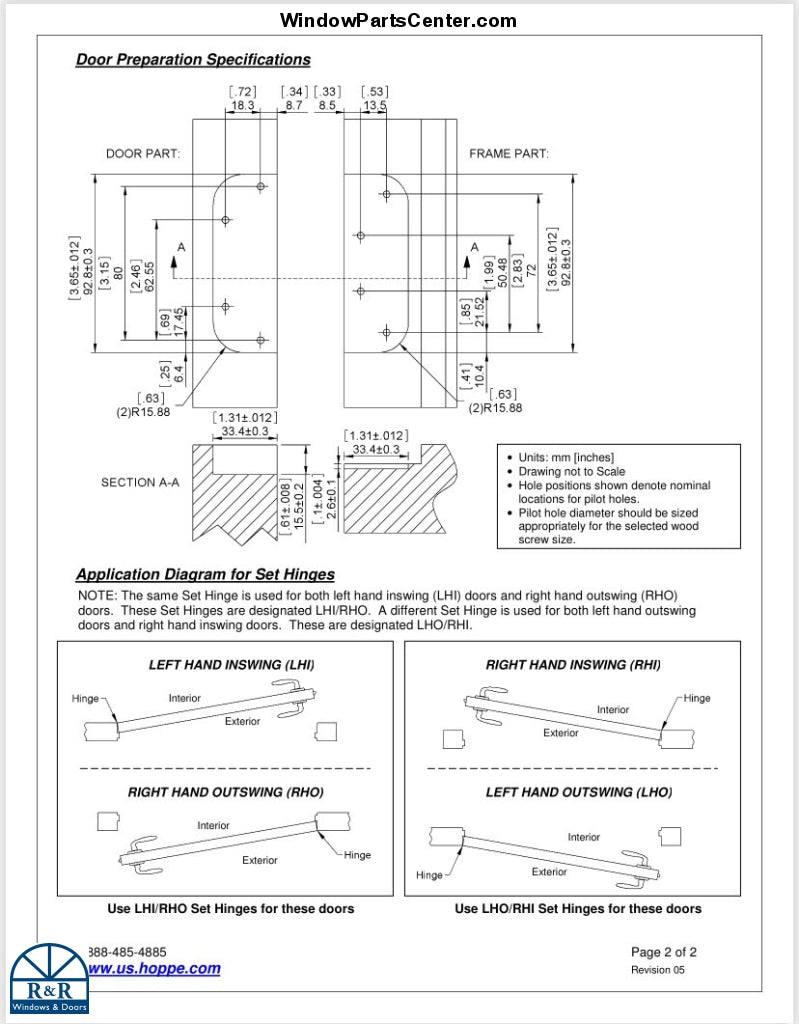

- SEE Hoppe "Application Diagram for Set Hinge” TO DETERMINE WHAT HANDING HINGE TO ORDER
Pre-Order are Special order items, no returns

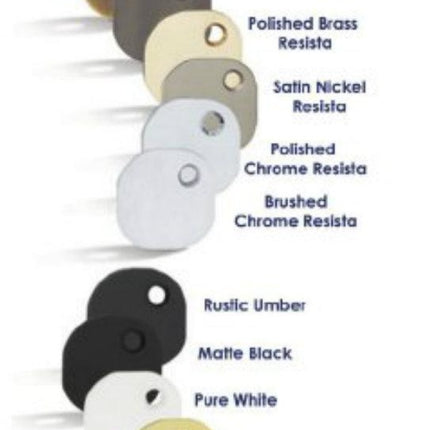

Made out of Brass or Aluminum. Multiple finishes to choose from.
Designed for a Greater Advantage

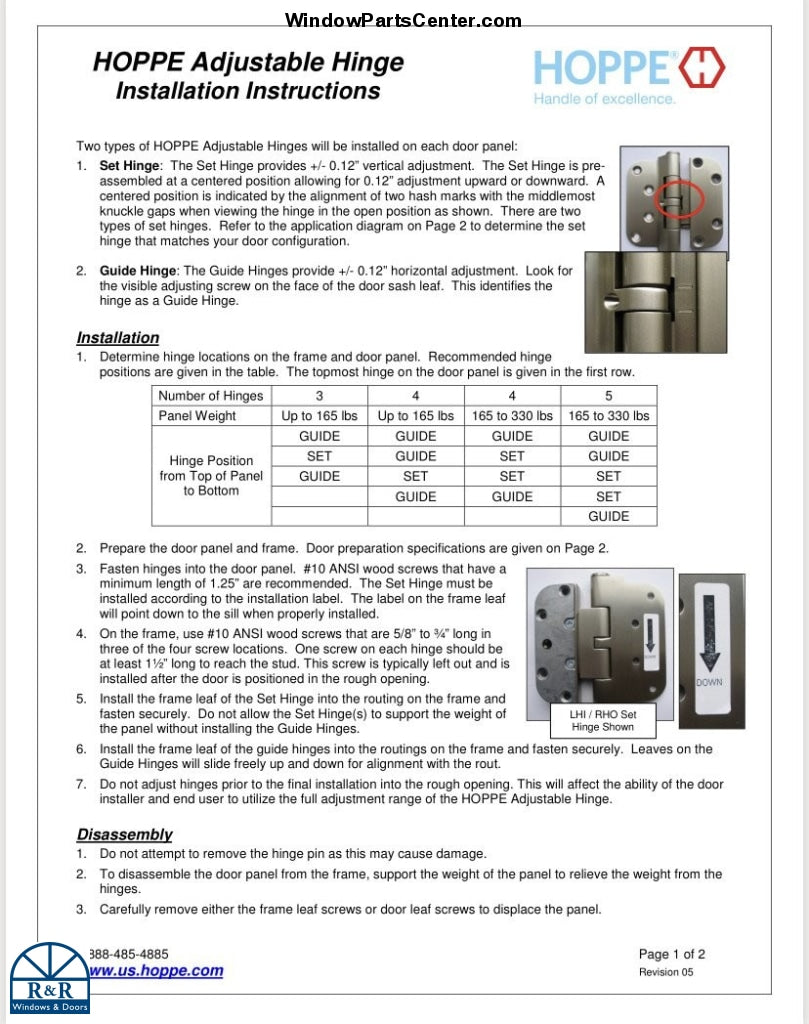

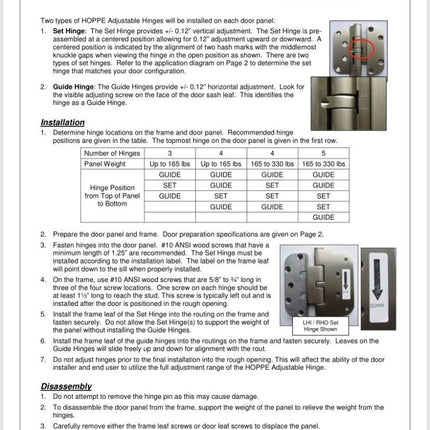

• Adjusts vertically ( Use Set Hinge Part # S4011) and for horizontally ( see Guide Hinge Part # S4012) by 1/8" for a perfect swing. - see Installation Instructions page 1 number of hinges chart for application.

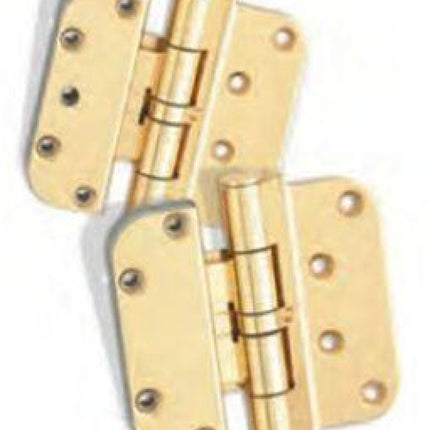

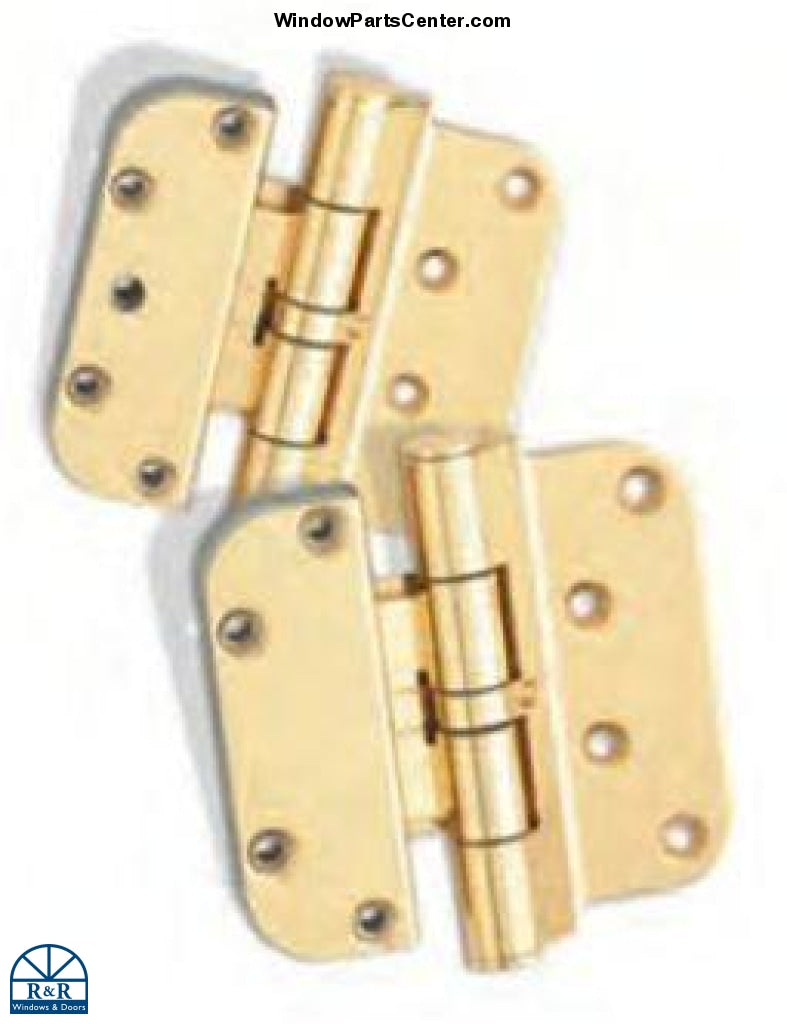

• Brass hinges feature finial caps as shown
• Aluminum hinges feature flush caps.
• Large 3/16" hex head screws make adjustments effortless. Remove the finial in the set hinge
to access the hex screw.
• Single pass routing for quick and easy installation.
• All Set and Guide Hinges are equipped with non-removable pins for security, making HOPPE
Adjustable Hinges the ideal solution for both inswing and outswing doors.
• Especially designed for larger doors, with a panel weight capacity of up to 330 lbs.
Tested to a Higher Standard
• Brass hinges are tested beyond an impressive 2.5 million cycles, in accordance with
ANSI A156.1 Grade 1 – Commercial test procedures.
• Backed by HOPPE's Limited Lifetime Mechanical Warranty.
Finished with Superior Quality
HOPPE's Brass and Aluminum Hinges are outstanding corrosion resistant materials
HOPPE uses their Resista® Limited Lifetime Finish Warranty on four of their select premium
finishes. The Aluminum Hinges have a high quality powder coating finish.

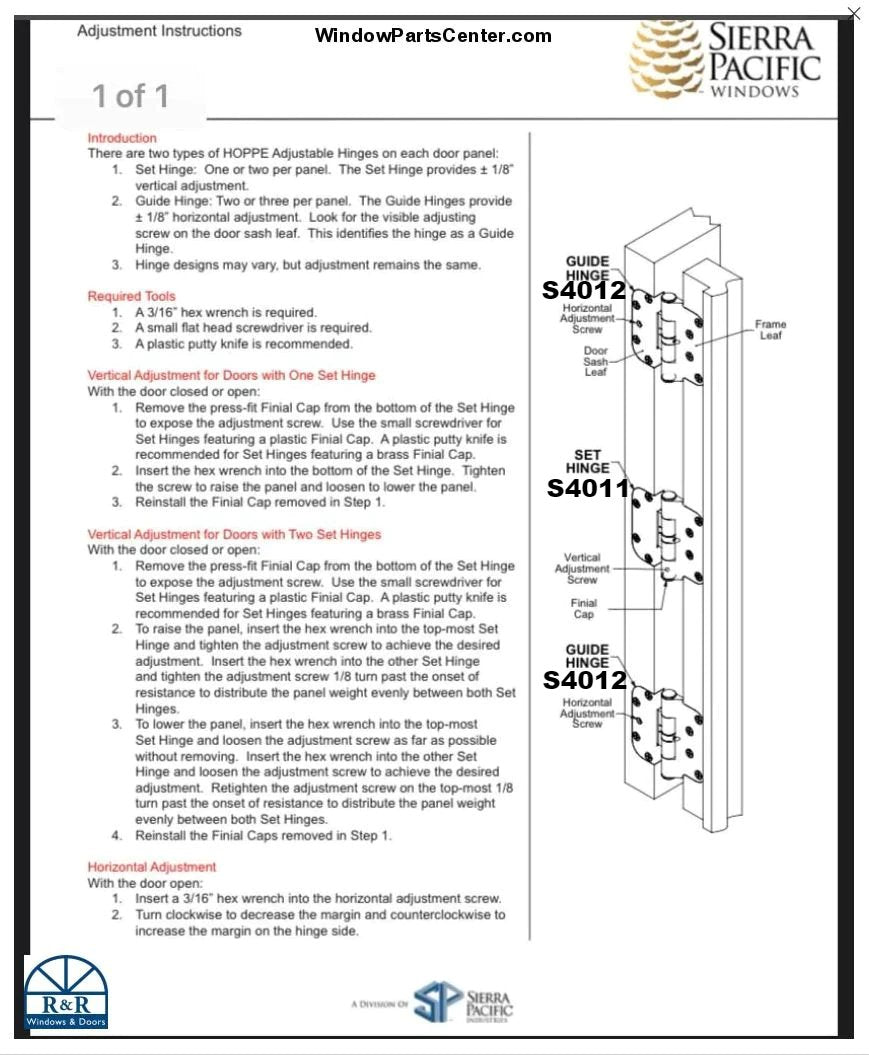

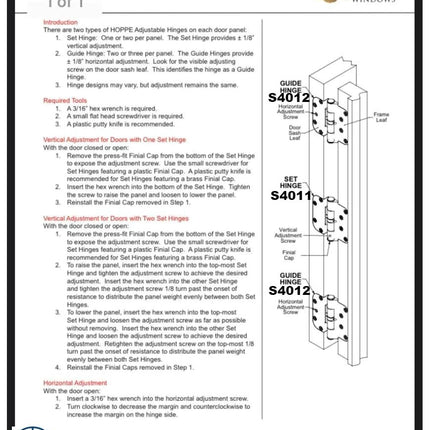

Installation Set and Guide Hinge Placement:
3 Hinges Per Door Panel Up to 165 lbs: Starting at top of door Top of door
- Guide (Use Part# S4012)
- Set (Use Part# S4011)
- Guide (Use Part# S4012)
4 Hinges Per Door Panel Up To 165 lbs:
Starting at top of door Top of door
- Guide (Use Part # S4012)
- Guide (Use Part # S4012)
- Set (Use Part# S4011)
- Guide (Use Part # S4012)
4 Hinge Per Door Panel 165-330 lbs Starting at top of door Top of door
- Guide (Use Part # S4012)
- Set (Use Part# S4011)
- Set (Use Part# S4011)
- Guide (Use Part # S4012)
5 Hinges Per Door Panel Up To 165-330 lbs:
Starting at top of door Top of door
- Guide (Use Part # S4012)
- Guide (Use Part # S4012)
- Set (Use Part# S4011)
- Set (Use Part# S4011)
- Guide (Use Part # S4012)
The Set hinge no matter what is always the 2nd from the bottom
Pro Tip: Remove weight from the hinges by lifting up on the door before you adjust.
Known to have been used on: Sierra Pacific Doors, Ashworth and many other
