Description
Part Number: S3025

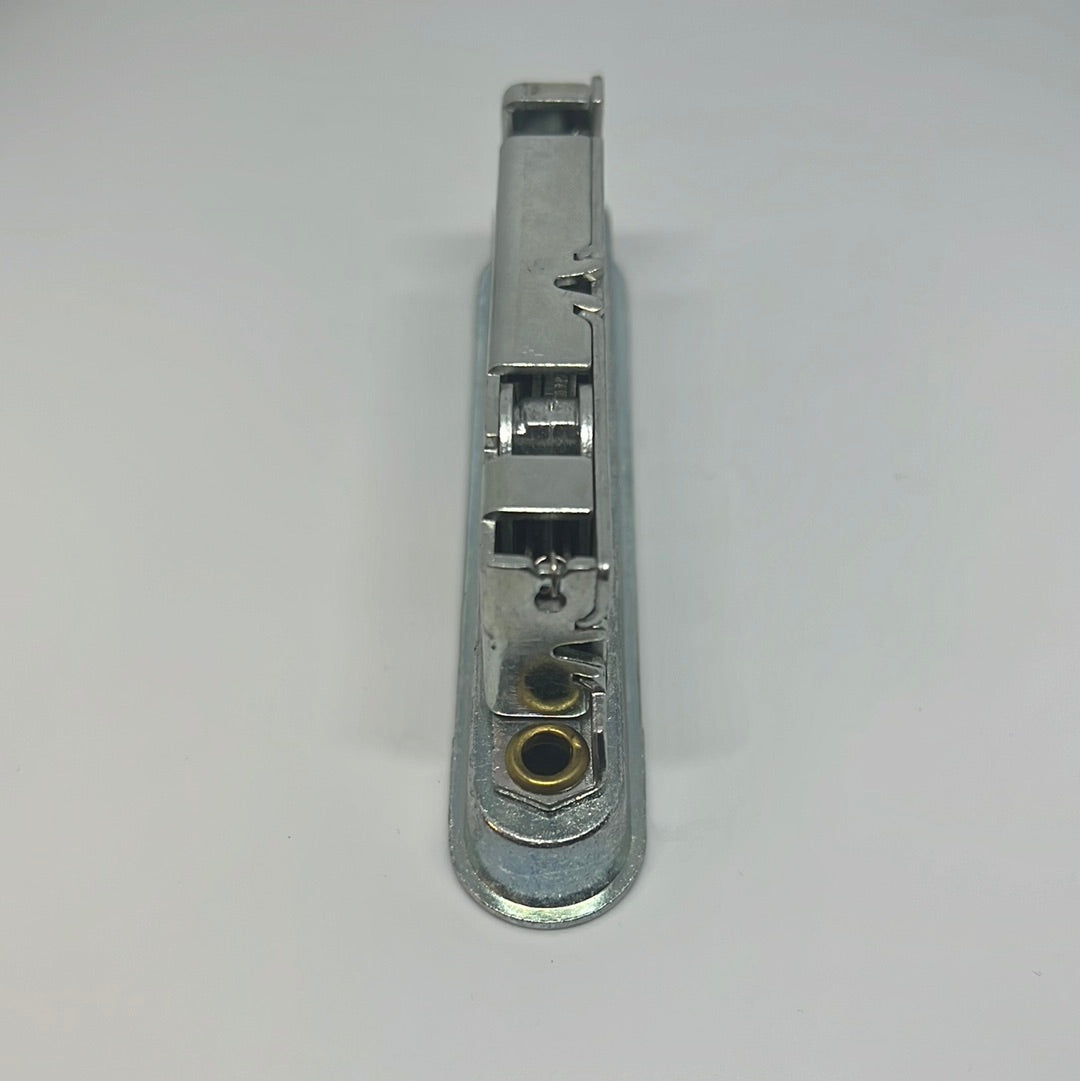

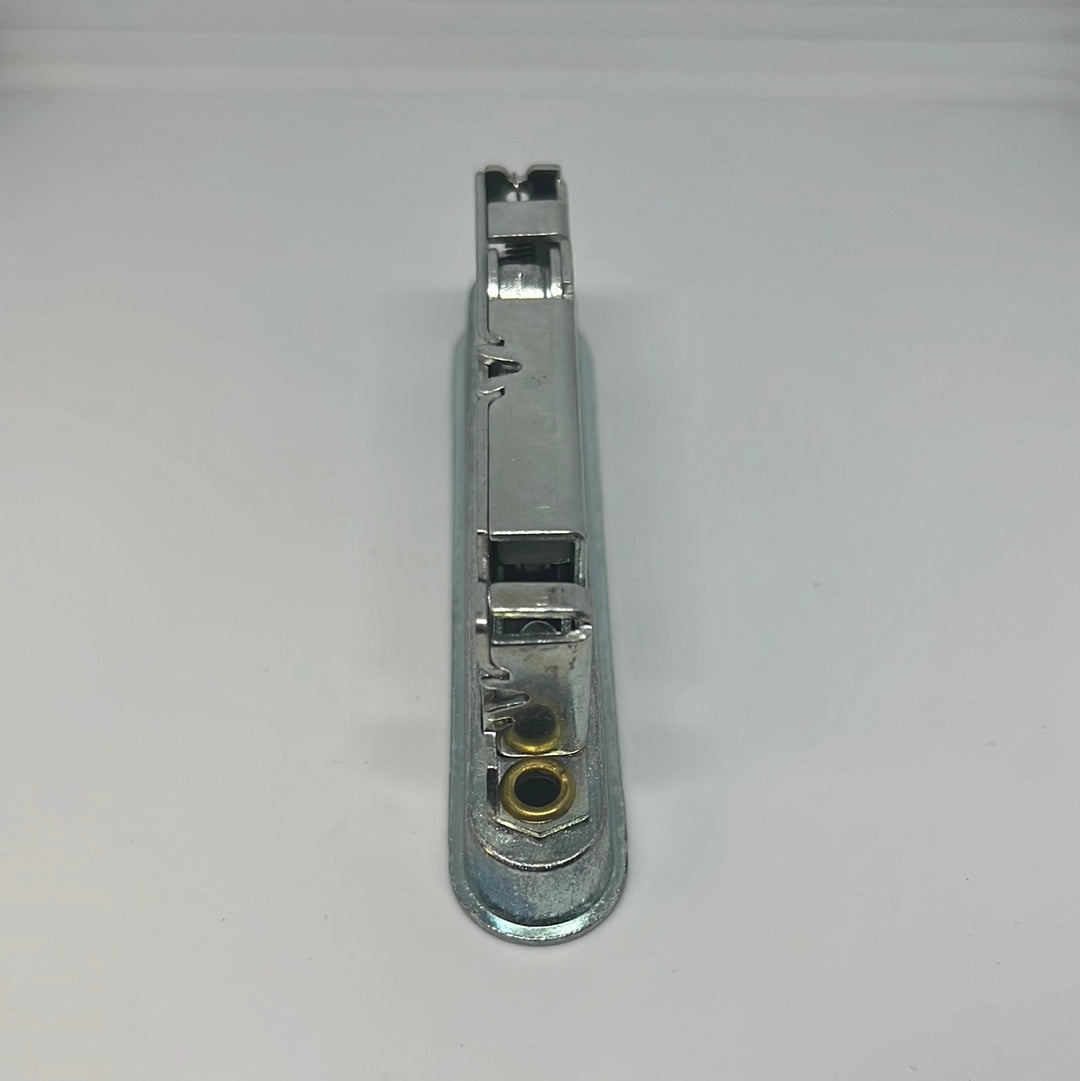

Mortise Lock 1.254 Backset 45-Degree with Pocket Trim Plate
Pocket Trim Plate is riveted onto the mortise lock box

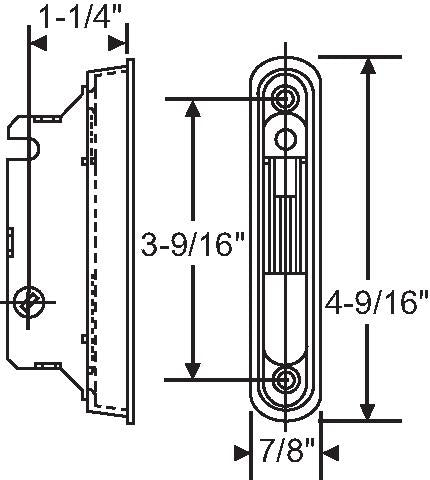

Dimensions: 4 9/16 inch Long x 7/8 inch inch wide, 1 1/4" deep from center of 45 degree cylinder to outside edge of trim plate
Mounting Screw Holes Center to Center: 3 9/16 inch
Used By Manufacturer: Fiberlux and more
