Description
Part Number: S3005
Sliding Patio Door Handle with mortise latch with upper body thumb turn - For Vinyl and wood Sliding Door
Handing: Left Hand Or Right Hand (see pictures or watch video below to determine what handing you need).
Color: White or Beige
Dimensions:
4" Screw Hole Spacing
Interior Handle Dimensions: 9 7/8" Long X 1 1/4 Wide
Exterior Handle Dimensions: 7 7/8" Long X 1 1/8" Wide
Mortise Lock Box Dimensions: 8" Long X 9/16" Wide X 1 3/8" Deep - See product note about this mortise lock box and keeper

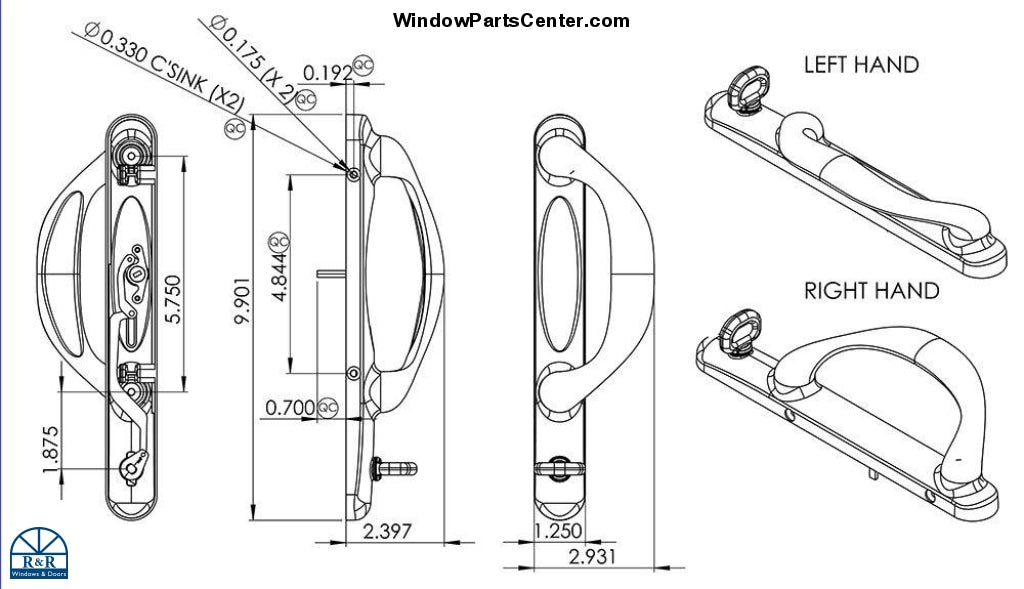

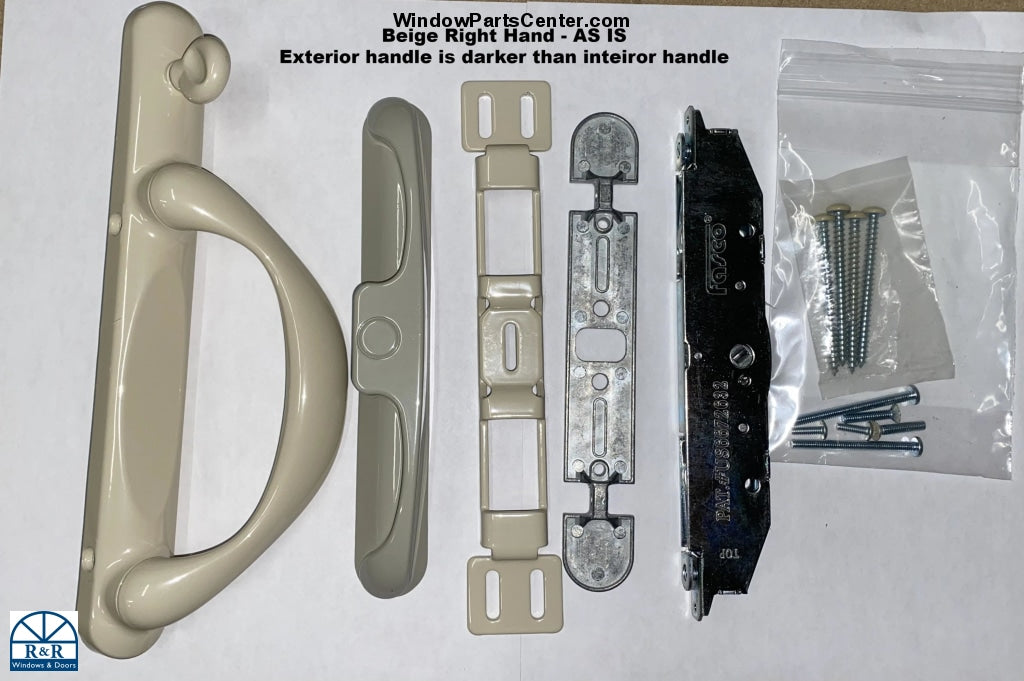

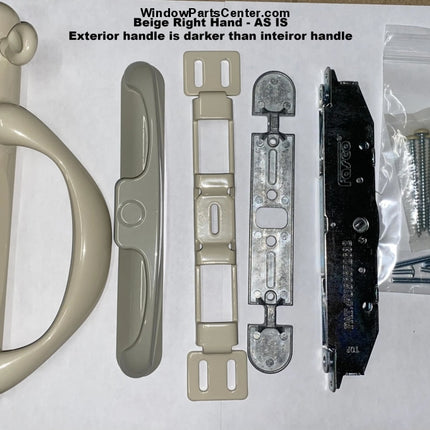

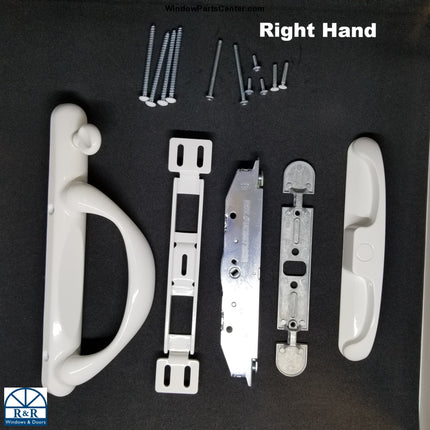

Product Note: S3005 comes with Vanguard mortise lock Box (locking mechanism) and keeper as shown in pictures, factory drawing and video. S3005 is a kit from the factory, We can not supply individual parts as the S3005 is a kit and is always sold to us with the mortise box and keeper as shown. We can not order just the handle without a keeper or mortise lock box.
It has come to our attention some door manufacturers did not use Vanguard mortise lock box and keeper in this kit but other styles. If your door has a different mortise lock and keeper you may need to reuse your existing one. Some customers door had C1035 mortise lock box and S3016 Keeper. (see links below for product page to compare to yours if you need the S1035 and S3016 you will need to order them with the S3005 kit)
Associated parts Sold Separately:
C1035 Amesbury Truth Gemini II PD Dual Action Mortise Lock
S3016 - Dual Hook Strike Keeper for Sliding Patio Door
Replacement parts:
If you would like to order just the Vanguard Mortise lock book and keeper only please see part # S3009
No other replacement parts are available you must purchase a compete new Handle set, the factory does not sell any other parts separately.
Known Part Numbers and Brands: Fasco and Vanguard. PO# 31729, Pat.# US6672632, VA-3200115, V Series 915 Mortise Handle.
Used on Mercer Sliding Patio Doors and many other vinyl and wood sliding patio doors.

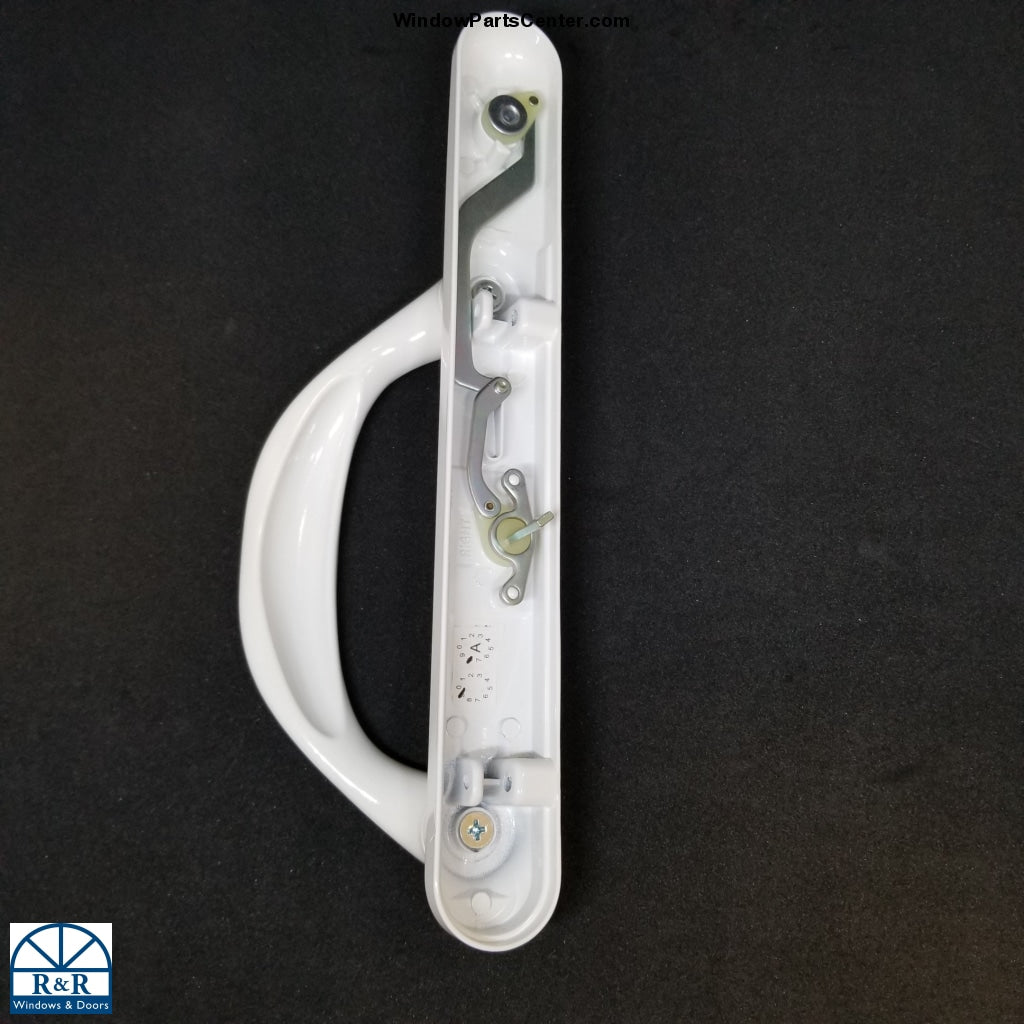

This patio door handle set is a Multi-Point lock set that comes with a White or Beige Left Handed or Right Handed inside handle and an upper body thumbturn. The inside handle mounts onto a mounting bracket that is installed onto the door. The outside handle is a White or Beige Diecast pull that can be keyed with the E 2000 cylinder. This set is often used on Vinyl or Wood patio doors. The set comes with a unique keeper and Multi-Point Lock.
Key Option
- handles come standard as Non Keyed (door can only be locked or unlocked from the inside)
- For Keyed add add part number 830 to order: (Door can also be locked and unlocked from the outside with key)
- For Keyed Alike (for 2 or more handle sets ordered and can used the same key)add part number 830KA to order keyed alike

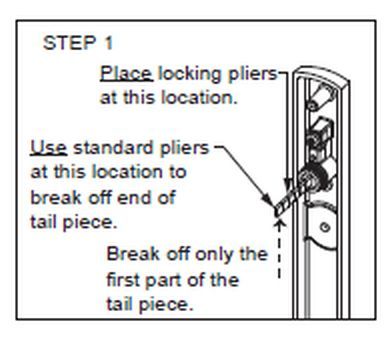

- Pro Tip for keyed handle sets only: If after you tighten the handle and the dead bolt won’t lock or unlock or really hard to turn, the tail part is too long and needs to be snipped down. See directions in pictures above. Grooves are on tail part to be snipped down so it can be used on multiple thicknesses of doors.
