Part Number: CA200
Roto Face Mount Operator
Old style 3 1/4" Arm Center of Operator to center of arm hole roto operators is a discontinued product. CA200 is a retro fit replacement option. See details below
New Retro Fit Operator:
3 Inch Arm from Center of Operator to center of arm hole ) see picture.
Overall Housing Width: 5 1/2"
Rear Mounted Screw holes will be 5 inches center to center
CA200 is a replacement option which would need slight modification to install.
As this is a retro fit application please read all instructions below and view pictures as well as old style dimensions vs. the CA200. If this this retro fit application will not work for your the only other option will be to replace the window. If you feel that you can not perform this retro fit install you will need to hire an installer. R&R is not responsible for any damage to window during retro fit install or any labor costs.
CA200 Kit Comes with:
- 1 Operator you chose of LH or RH
- 2 Rear Mount Screws - 1/2" long*
- 1 Handle
*As this is a retro fit application used on many brands of windows some customers have found they needed longer screws which you can purchase at your local hardware store. Screw pitch that we found fit in the arm hole in new operator is a #10 x 32. Some customers old screw from their existing operator is a #10 x 24 when we try that size it only goes in about 1 to 2 turns. We recommends ACE hardware for replacement screw if needed they have more screw options. And they usually have a thread gauge in their screw section so you can take the operator with you and see which style would work best. For your retro fit application.
Color: White Only
Retro Fit Required Tools You Will Need:
- Drill
- 5/16" (8mm) Drill Bit
- Tape Measure
- Screwdriver
Retro Fit Instructions:
- Remove old operator, by removing operator housing screws and screw that connects the operator arm to the corner link arm.
- Remove mounting plate.
- Keep the screw that connects the corner link arm To the operator arm.
- Drill a 5/8” hole on the hinge side exactly 5 inches from the opposite side of the operator mounting hole. ( the oblong hole the operator goes thru)
- Screw holes will need to be exactly 5” center to center apart
- Install the new operator with the screws supplied
- One will go into the end of the existing mounting hole and the other will go into the new hole you drill
- Attach the corner link arm to the operator arm with the screw you saved.
- your window should now operate
- Clean and lubricate your hinges with spry silicone for better results (do not used WD40)
New Retro Fit Operator:
Overall Housing Width: 5 1/2"
Rear Mounted Screw holes will be 5 inches center to center
3 Inch Arm from Center of Operator to center of arm hole.

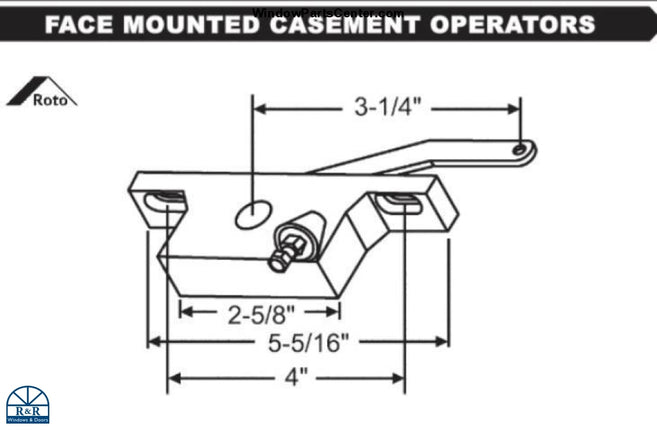

Old Discounted Roto Handle Specifications:
Overall housing width: 5 5/16"
4 inch center to center screw hole
3 1/4 inch arm from center of operator to center of arm hole.
Known part numbers: 57020; 36-333SP; G2-OSCP-02; G2-OSCP-02; G2-OSCP-O2; G2-0SCP-02; G2-STRKR-*11
