Part Number SS10004
Roto North America HG05 13" Adjustable Hinge Kit For Casement Windows
Direct replacement hinge for the HG04 Hinge Style
HG05 Adjustable Wrench Sold Separately See Part # SS10002
What comes in a kit:
- 1 top and 1 bottom hinge track and 1 Top and 1 Bottom Hinge Arm
Options for 13" Stainless Steel Adjustable Hinge Track:
- 13" Power Coated Washability Hinge Arm

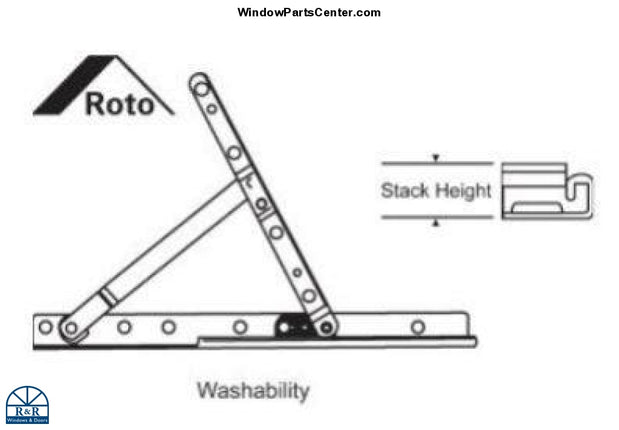

Measurements (taken at the longest and widest points See diagram):
- 13" Hinge Track: 12-11/16" L x 11/16" W x 5/16" D
- 13" Washability Hinge Arms: Arm With Black Track Guide 6-1/4" long, Arm that attaches to Track Hinge Adjustment Nut 7-1/4" Long
- 7/16" Stack height. ( for 1/2" Stack Height also order SS10020 shim)
Known Part Numbers: HG05-7202, HG05-7203, HG05-7506
