Description
Part Number: C1010C

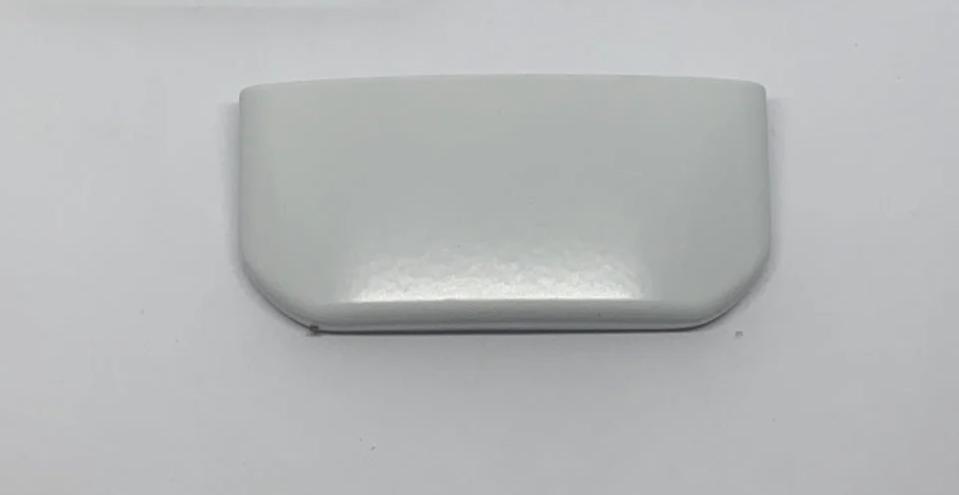

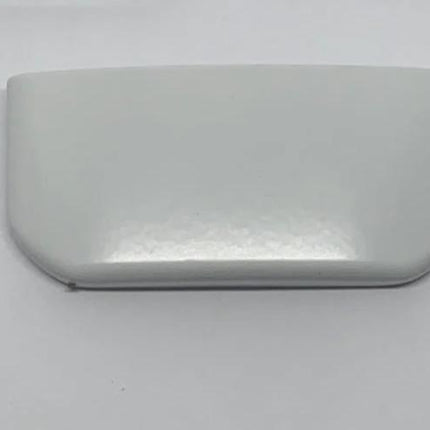

Low Profile Cover Only 24004.XX
Amesbury Truth Positive Action Lock 19.65 Series

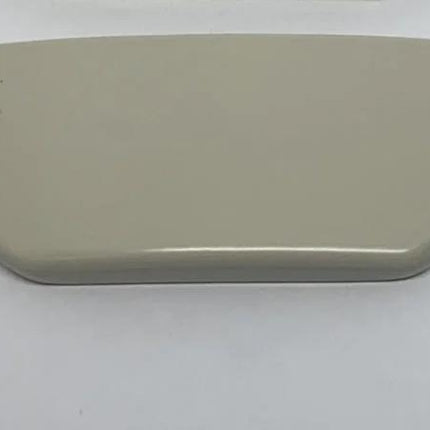

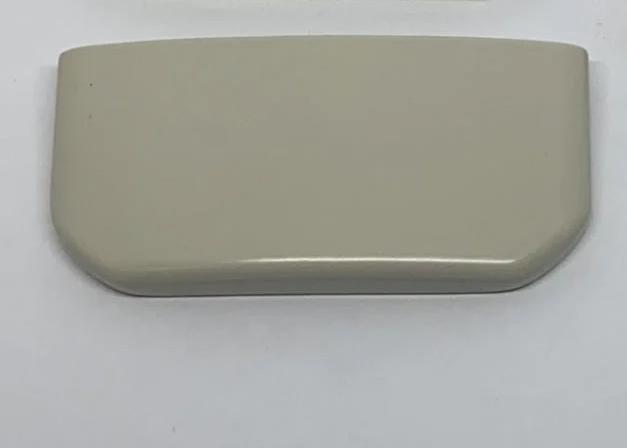

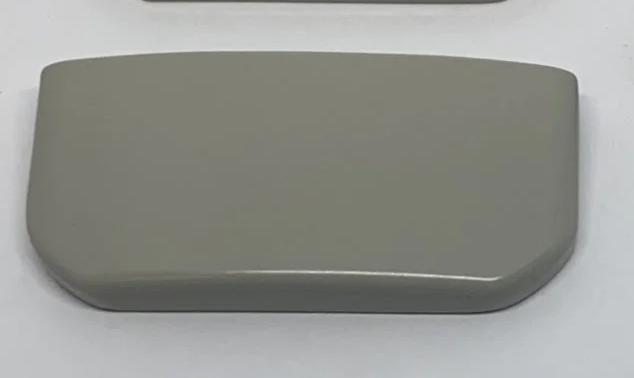

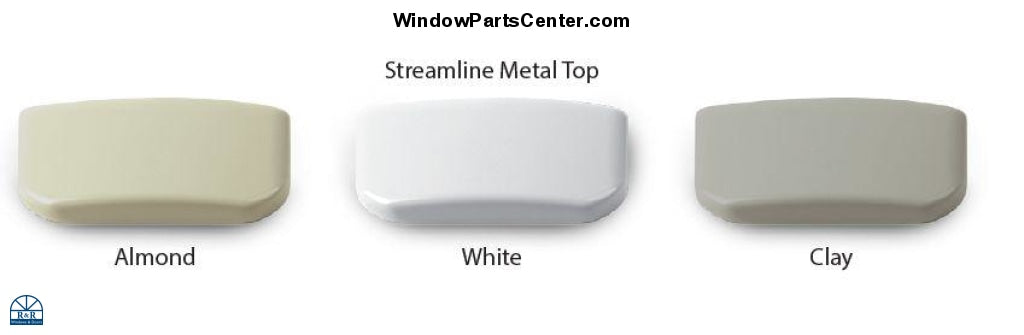

Colors: White, Almond (aka Beige) and Clay (Sarah Beige)

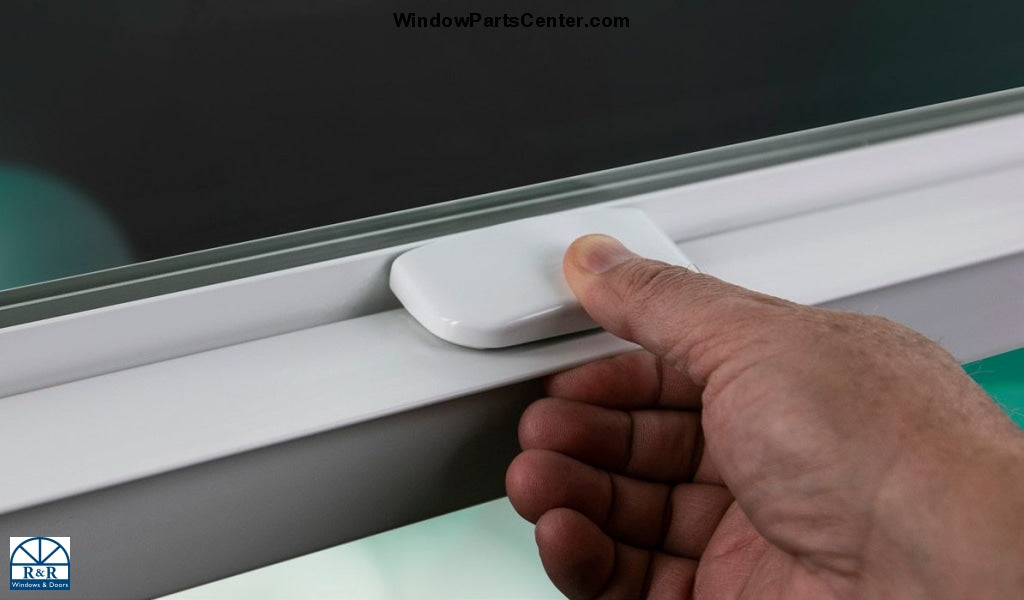

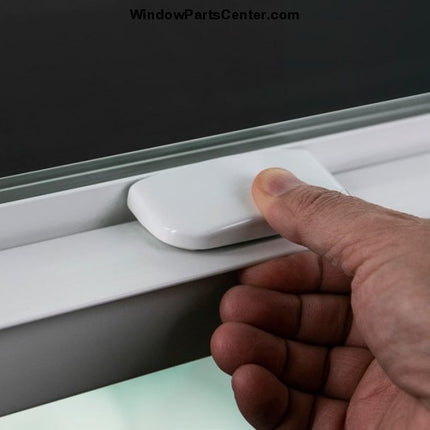

The 19.65 series lock is easily unlocked by pressing the top cover down and automatically relocks upon closing the window.

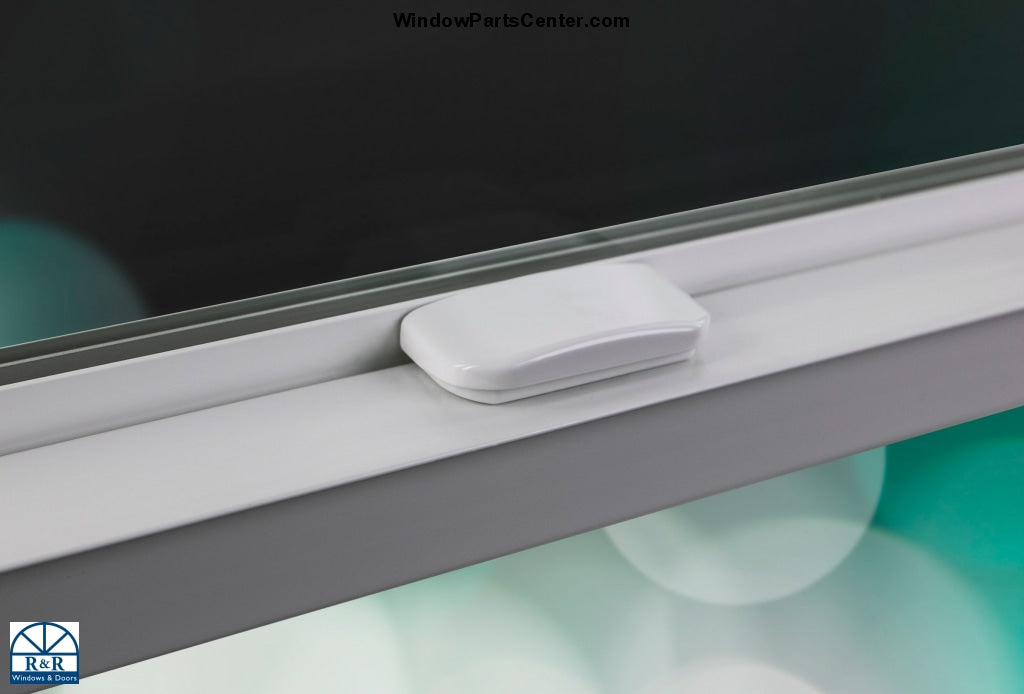

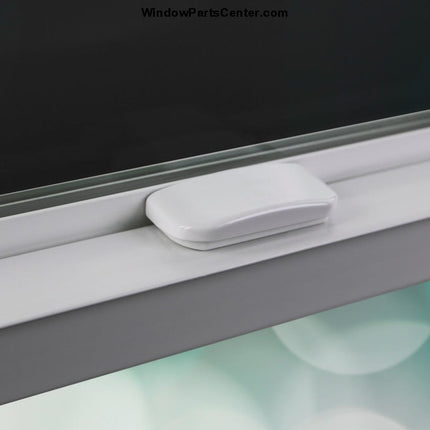

Auto lock features a low profile with a clean,
streamline design. This lock is durable with minimal
moving parts to ensure a lifetime of hassle free operation.
Cascade’s new auto lock was designed specifically to work
with Cascade, Winpro and Empire product lines.
The lock features a dual compression spring and comes in
three matching colors to compliment our window offerings.
This lock is a truth lock; metal cover and lock body; strong, sleek and a huge improvement in hardware over the previous auto lock. This lock can be swapped out to fit the old auto locks if needed; there are multiple hole locations in the lock body that allow for an easy swap for service needs; looks great.
Accessory Items Sold Separately:
-
Mechanism: Part Number C1010M
-
Cover: Part Number C1010C
-
Keeper: Part Number C1010K
-
Keeper: Part Number C1010K 23894
-
Keeper: Part Number C1010K 25137
- (Keeper style depends on color available)
Product Highlights
- Recommended for: aluminum, composite, vinyl, and wood
- Easy to unlock by pushing the top cover down
- Automatically relocks when the window is closed
- Audible click gives feedback when the window is being locked or unlocked
- Improved aesthetics with the low profile 24004.XX snap on cover that conceals the mounting screws
-
PRODUCT TIPS 1. For accurate hardware placement in vinyl applications, pre-drilling of the window profile is strongly recommended. 2. For vinyl window applications, mounting screws should pass through two PVC walls, or one PVC wall and one insert wall. For this reason, it may be necessary to use a longer screw than is recommended. 3. For top mounted keeper configurations, a 0.3” minimum deep surface is needed on the fixed rail with both surfaces flush when closed.
-
ARCHITECT SPECS Window lock will be of quick snap action bolt design. The product will be constructed of high-pressure zinc alloy die cast with high strength acetal bolt. Window lock shall have automatic latching to allow user to use both hands to move the sash. Window will be unlocked by pressing the top cover. Window locks will be 19.65 series Positive Action Locks as manufactured by AmesburyTruth.
part number stamped on keeper: 23894 (with a 1 or 2 below)
Brands: Cascade Windows (Used on Cascade windows from 10/31/2018 - Present). Amesbury Truth and many other window brands
