Description
Part Number: 840 Current Style Active
Amesbury Truth Sentry® .63 and Sentry® .03

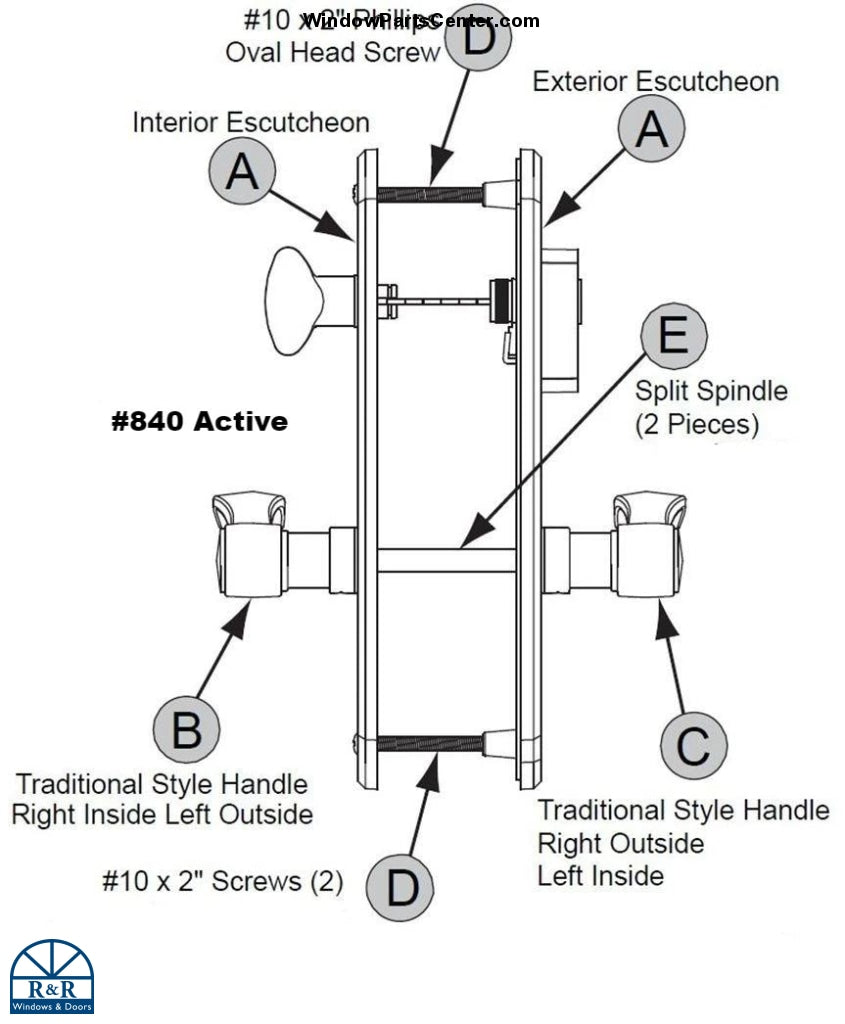

Used For GU Multi Point Hardware ACTIVE HANDLE SET* (Hurd and Sierra pacific)

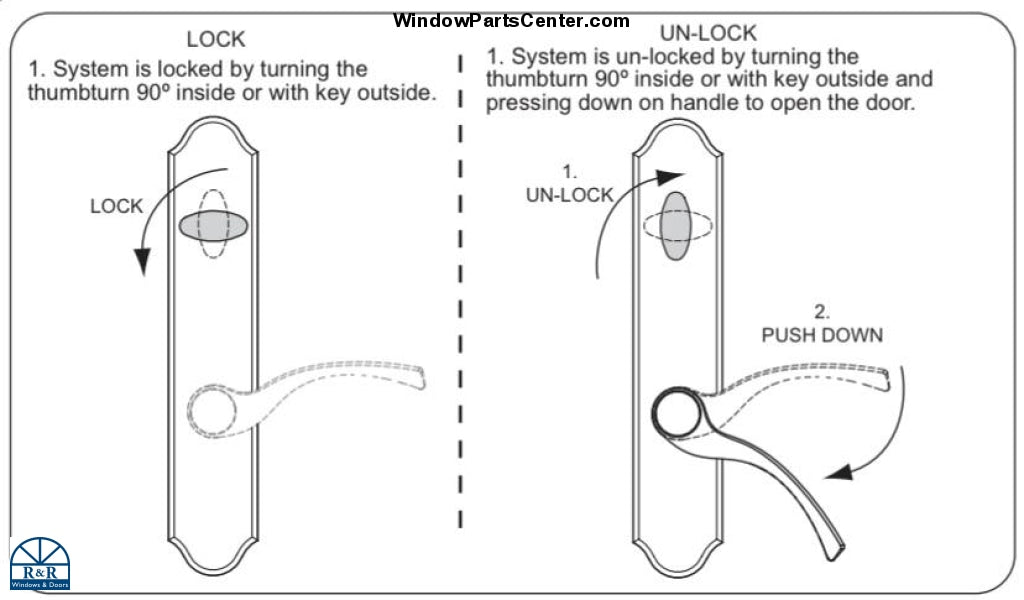

Active handle sets come keyed with thumb turn and are for single door or the primary active door panel on a French door.
10 Inch Escutcheon

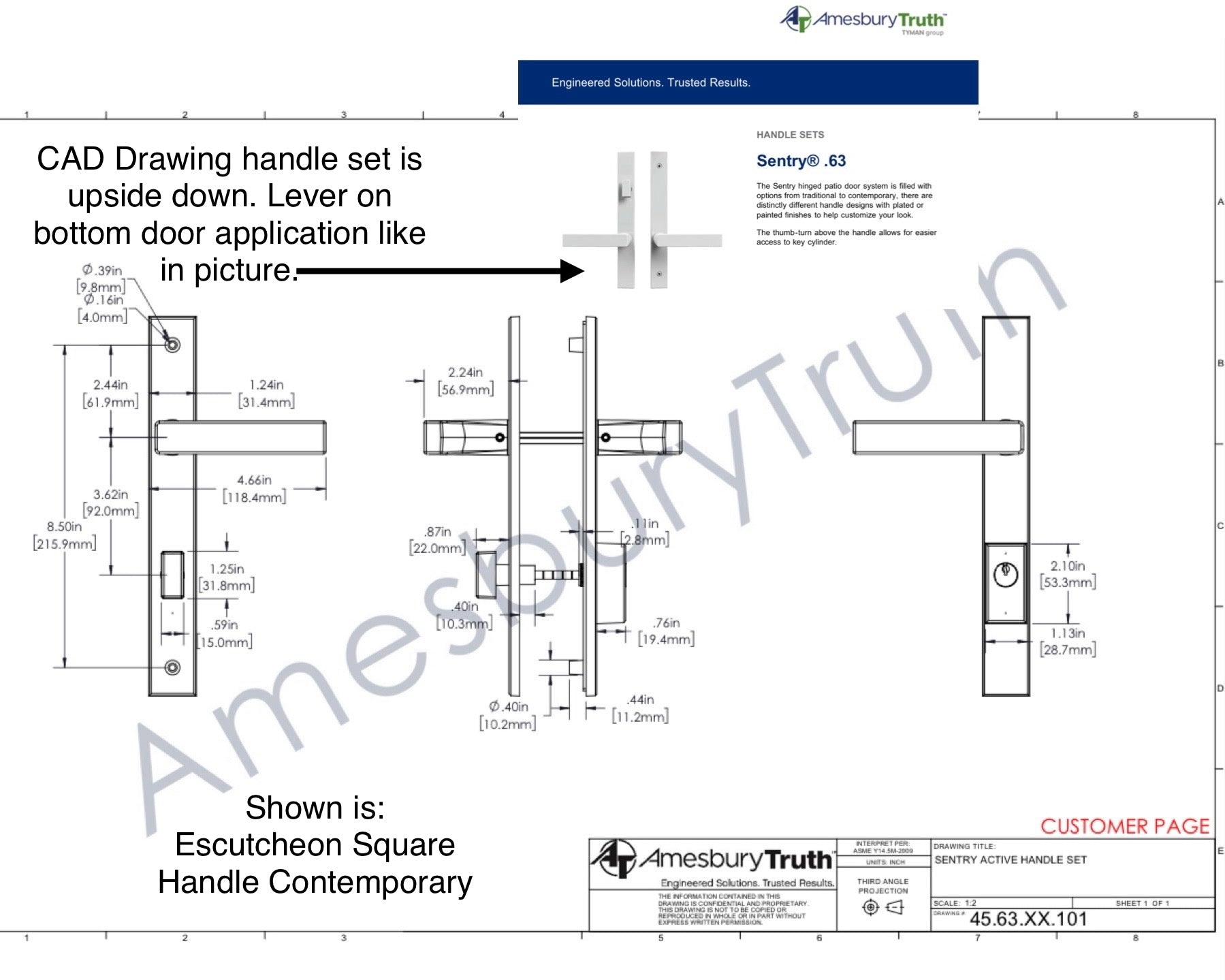

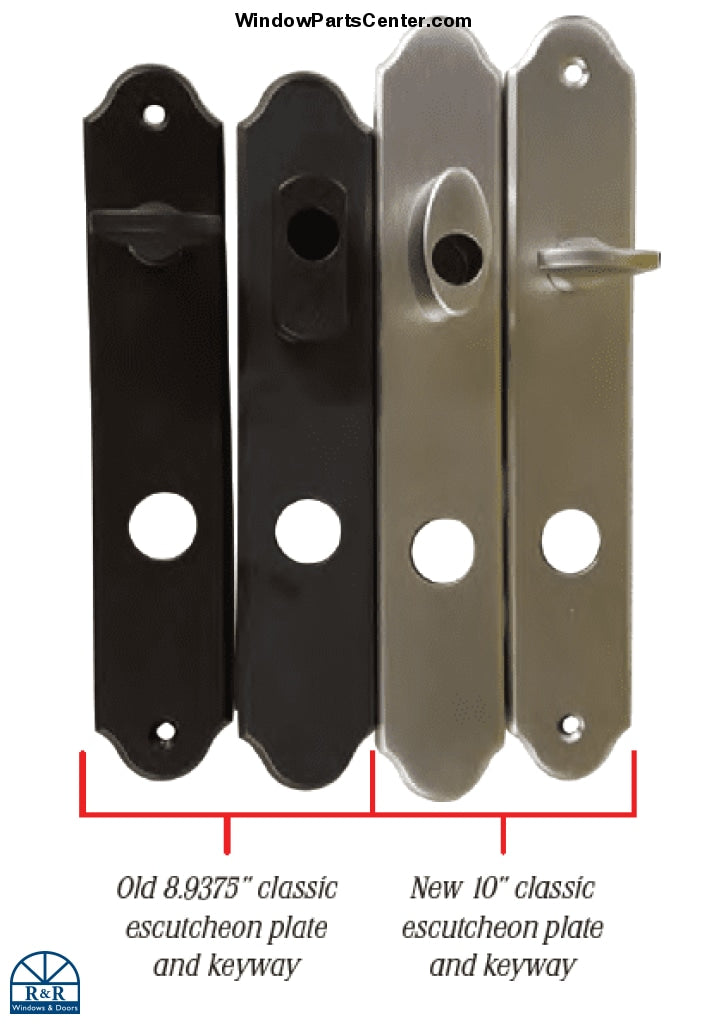

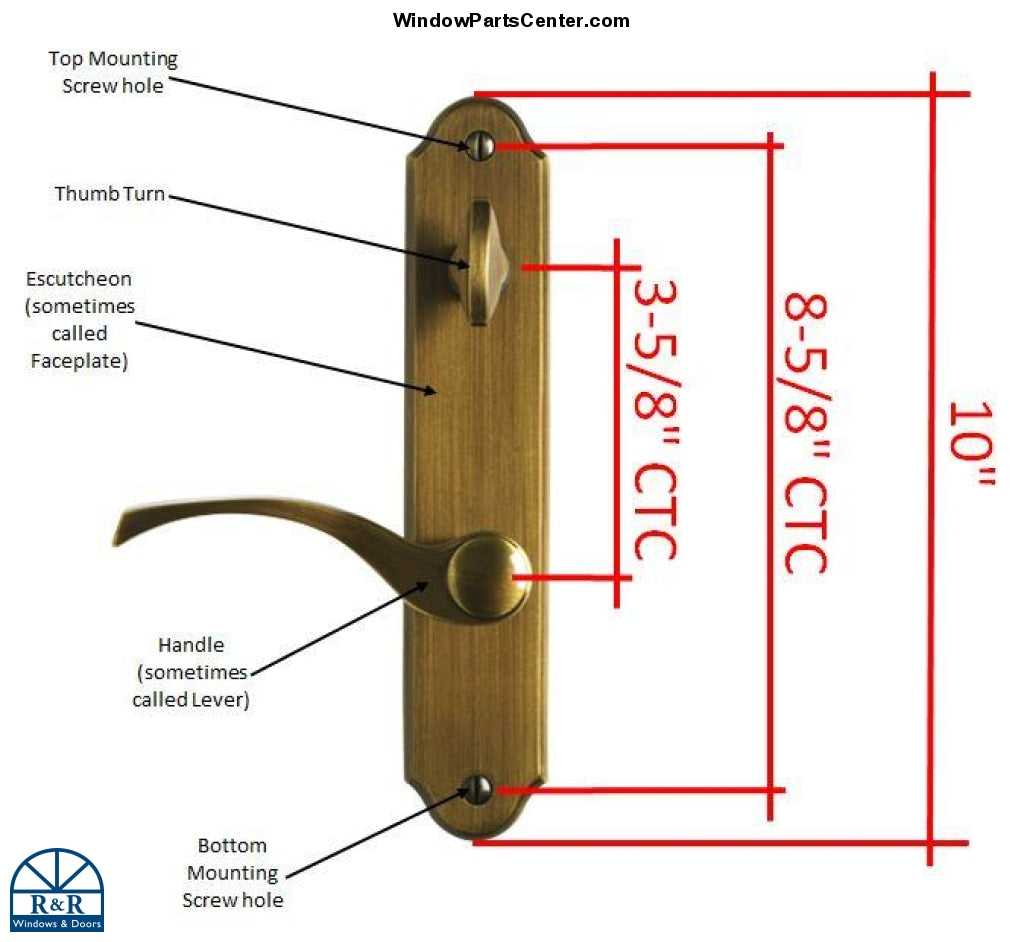

NOTE TO CUSTOMER: As of March 20 2017 the OLD STYLE 8.9375 long Escutcheon was discontinued by the manufacture (mounting screw hole where 7 5/8" center to center. The new style has 10" long Escutcheon (Mounting screw holes are 8.5" center to center). Note this height change does alter the placement of our mounting holes. Bottom mounting screw hole will be reused, but the customer will have to drill one new top mounting screw hole. The old mounting screw hole will be covered by the escutcheon.
All handle sets will be shipped with the new 10 inch taller escutcheon plates. Please note a new mounting hole will be necessary. Field instructions (see pictures)
Special Order Item. No returns exchanges or order cancellations once order has been placed. Please allow 2-3 week lead time.

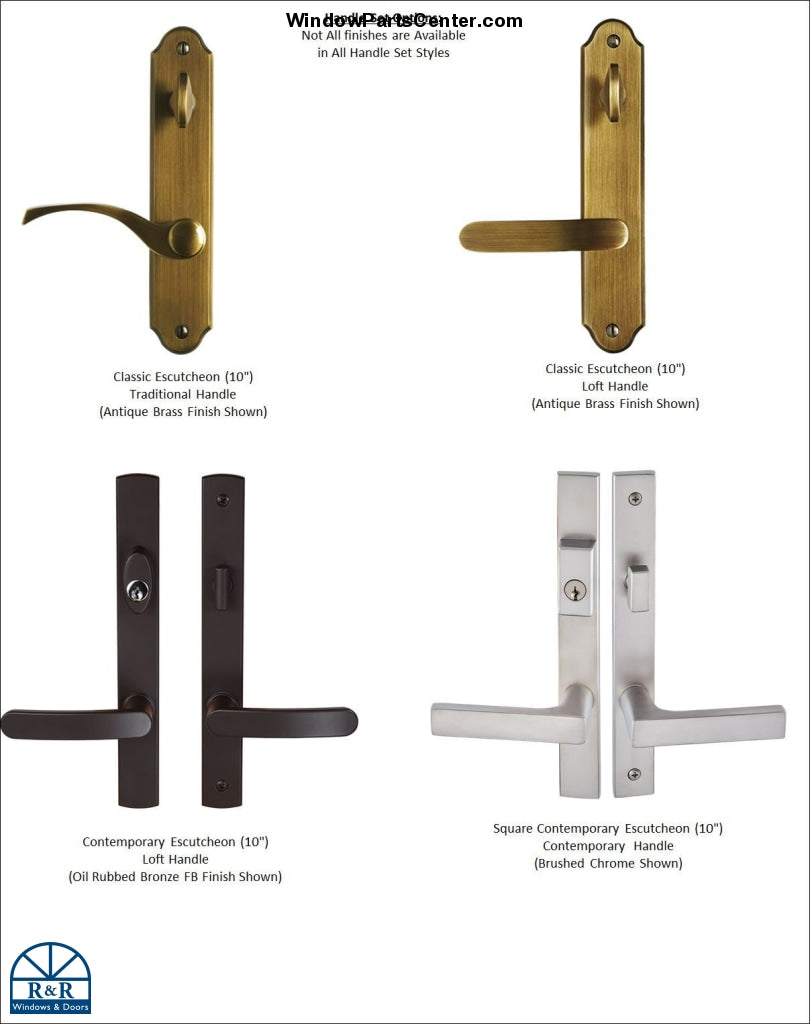

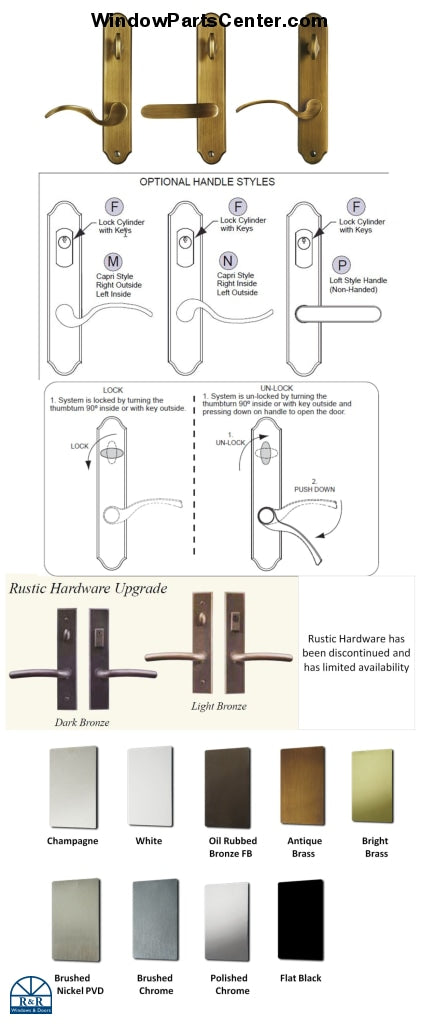

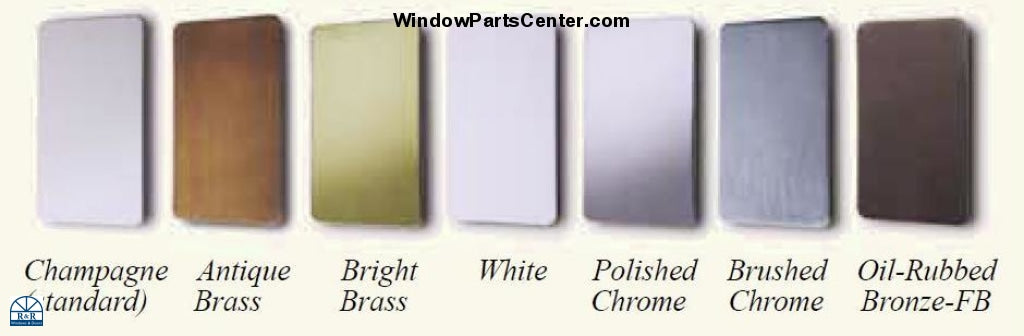

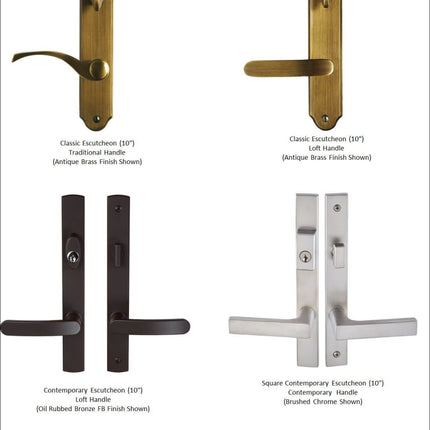

Finish Options for Different Styles:
(All styles are not available in every finish color)
Classic Escutcheon with Traditional Handle
- Antique Brass
- Black (Matte)
- Bright Brass
- Brushed Chrome
- Champagne
- Oil Rubbed Bronze FB**
- Polished Chrome
- Satin Nickel
- White
Classic Escutcheon with Loft Handle
- Antique Brass
- Brushed Chrome
- Oil Rubbed Bronze FB (forever bronze not true oil rubbed bronze that will change)
- Polished Chrome
- Satin Nickel
- White

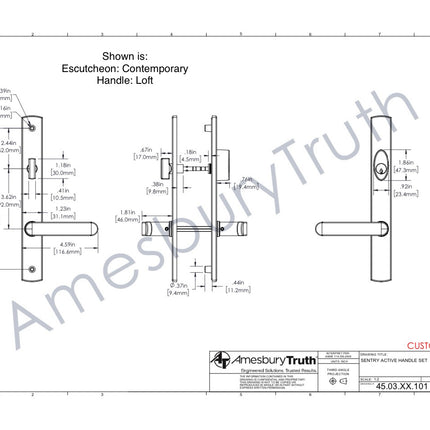

Contemporary Escutcheon with Loft Handle
- Antique Brass
- Black (Matte)
- Bright Brass
- Brushed Chrome
- Oil Rubbed Bronze FB**
- Polished Chrome
- Satin Nickel
- White

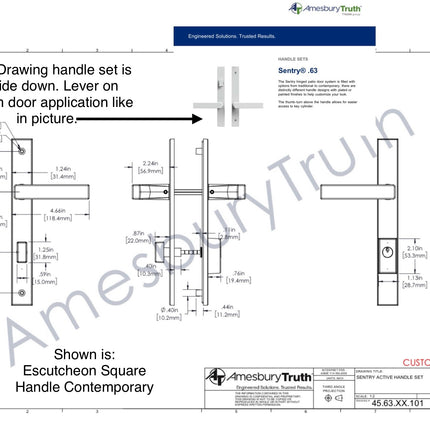

Squared Contemporary Escutcheon with Contemporary Handle
- Antique Brass
- Black (Matte)
- Bright Brass
- Brushed Chrome
- Oil Rubbed Bronze FB**
- Polished Chrome
- Satin Nickel
- White
Special Order Item. No returns exchanges or order cancellations once order has been placed. Please allow 2-3 week lead time.
Used on Hurd Inswing and outswing patio doors all wood and wood clad 2006 - Present - Direct Replacement For 2005 models as well
*For Semi Active handle set see part number 841 Has thumb turn no keyed lock- To be used on a secondary door panel on a French door that has shoot bolts that are operated and locked into place by the handle set.
*For dummy handle see part number 842 no operation no thumb turn - To be used on a secondary door panel on a French door that is fixed in place with no operation or has manual shoot bolts that are not operated by the handle set.
**FB = forever bronze so it will not change color over time like a true oil rubbed bronze would.
