Description
Part Number 152
EntryGard (EntryGuard) Dual Arm Operator 5 17/64" (inch) Style
Handing:
- Left Hand
- Right Hand
- View pictures and how to video below (2:40 min) to determine handing you need.

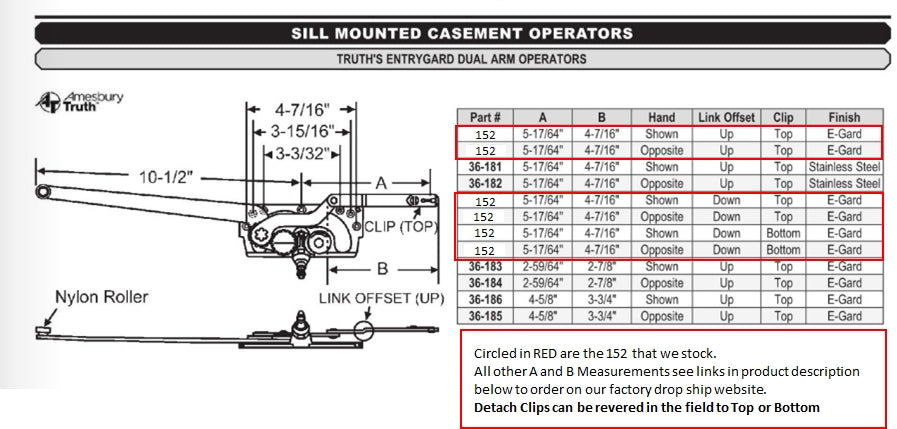

Measurements in Chart (Scroll Thru Pictures for Chart):

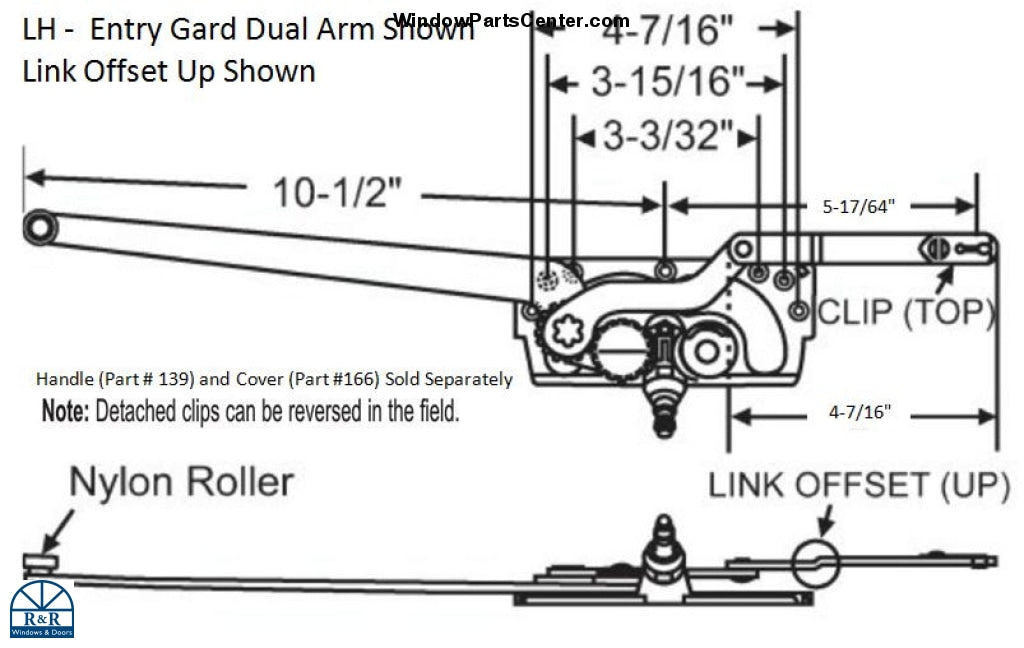

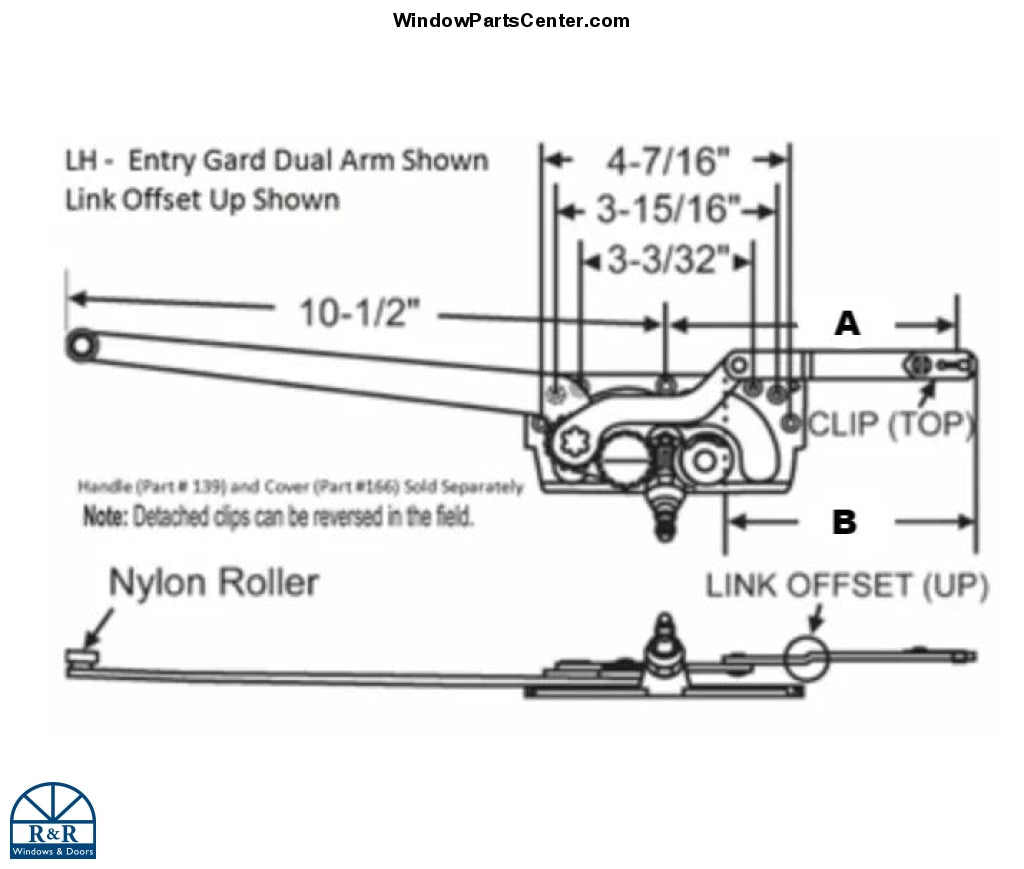

- "A" Measurement in Drawing is 5 17/64" Circled in red in chart
- "B" Measurement in Drawing is 4 7/16" circled in red in chart
- The other arm sizes are available for "A" and "B" measurements which can be ordered using our links below using our factory drop ship part catalog website (scroll thru pictures to see arm option chart for part numbers and See how to video below on how to read the chart).
Styles Available :
Note: Detached clips can be revered in the field to be on top of bottom of arm. 152 will all come as Clip on the top.
Finish:
Handle and Cover Sold Separately See part # 139 for handle and #166 cover, S1002 Cover or upgrade to #S1004 for nesting handle and cover.
Known Part Numbers: 20910, L30941, 40853, U.S. PAT. 4,241,541 - CAN. PAT. 350,432 - PAT. 1982 , 31538, 40754, 45179, 40753, 31538A, 20810A, 15-63-00-002 15-63-00-001, MONCSE953, R3-2256, 53-2255
Replacement Parts for: Hurd, Semco, Marvin, Cascade, Caradco, BiltBest, Norco Milgard, Sierra Pacific, Allsco (1980 to Dec. 1997), Monarch Old Series and more.
Other Arm Sizes Links to Order (this is an update to our video below). Watch video to see how to read chart in pictures above to determine your A and B Measurements match part numbers on chart to links below:
Cut Sheet For EntryGard Dual Arm 15 Series
