Part Number 329
Sash Lifts or Sash Handle for Double Hung and Horizontal Sliding Windows
Zinc Die Cast
Brand: Amesbury Truth / Truth Hardware
Comes With 1 sash lift
Low Stocked Colors: White, Bronze and Coppertone - May have a 1-4 week lead time and special order item no returns
Discontinued Colors: Bright Brass have been discontinued
Used on Hurd, Weather Sheild and may other Single Hung and Double Hung Windows. Known Hurd Part Number 013777, Allsco 211
Screws not included
Part Number: 331
Special order items no returns, exchanges or refunds. Lead time is 4-8 weeks for your order to ship. Once you place your order you will not be able to cancel your order.
Please See Chart To Order. (Second product picture and how to videos below)
Compression Tilt Jamb Liners
Comes with 1 Left and 1 Right Jamb Liner (see video below)
For Tilt Windows with Either Single Strength or Insulated Glass
86E Series for 1 3/8" or 1 1/4" Sash
Max Opening Height for 86E Series is 7-6 (90")
Bottom of jamb cut to fits a 14 degree sill angle by manufacture.
Jamb Liner Width: 3 7/16" Wide
Jamb Liner Length: See Chart
Colors: White or Beige
On Chart: Glass Size = Glass Height
Videos on How to identify and order 331 part 1 and part 2:
Installation Video:
Known to have been used on: Hurd, Caradco, Biltbest, Kolby, Weather Sheild, Jeld-Wen and many more
Part Number 335
Balance Window Springs For Single and Double Hung windows.
Replacement window springs used on many single hung and double hung windows with compression tilt jamb jamb liners. Each spring will come with a Clip as shown in picture. Clip is removable if you do not need it on your window.Due to the multiple sizes springs come in we do not stock springs. All springs are special order with a 1 - 2 week lead time. NO RETURNS for springs as they are special order/made to your order.Spring is 3/8" Diameter outside to outsideThe spring gauge or tension is as follows and is commonly associated with these color tips on the springs themselves: Red .041, Green .044, Yellow .047, Black .048, Purple .051To Order By Spring Length Inches : Measure from tip of Eyelet to tip of Eyelet on spring. (Eyelet is the round bent out part of the spring located at both ends).To know what color gauge and length to order: you will need to remove the springs from the jamb liner. Most Springs are color coded at one end with paint. Please watch both how to videos below that show how to remove the jamb liners from your window/reinstall and how to remove and replace the springs.
You can also use the chart in the pictures as a guide on which gauge to order (chart is for Hurd Wood/clad windows) other brand windows lengths or gauge of the springs can vary. so ordering a longer spring than needed is recommended and you can cut it to the length you need.
You can also determine gauge of a springusing a spring wire gauge, pocket wire gauge, or a math formula:
Spring wire gauge: Insert the gauge into the spring and count 20 coils. Then, look at the gauge markings to find the wire size.
Pocket wire gauge: Match the coils on the spring to the correct wire size key in the gauge.
Math formula: Count 20 coils of the spring and measure their length in inches. Then, divide the measurement by 20 to determine the wire size
Pro Tip: If the Springs are old and maybe a little stretched out it is better to order springs longer then you need as you can cut the springs shorter if needed by using a pair of Wire Cutters or Cable Cutters. Then you can bend out the eyelet with pair of regular pliers and flat head screw driver. See demonstration video below.Lead Time: Due to the multiple sizes springs come in we do not stock springs. All springs are special order with a 1 - 2 week lead time. NO RETURNS for springs as they are special order/made to your order. Larger orders may have longer lead times. Please contact us with any questions.
Have been used on Hurd, BiltBest, Weather Sheild and Cradco windows and many other window brands.

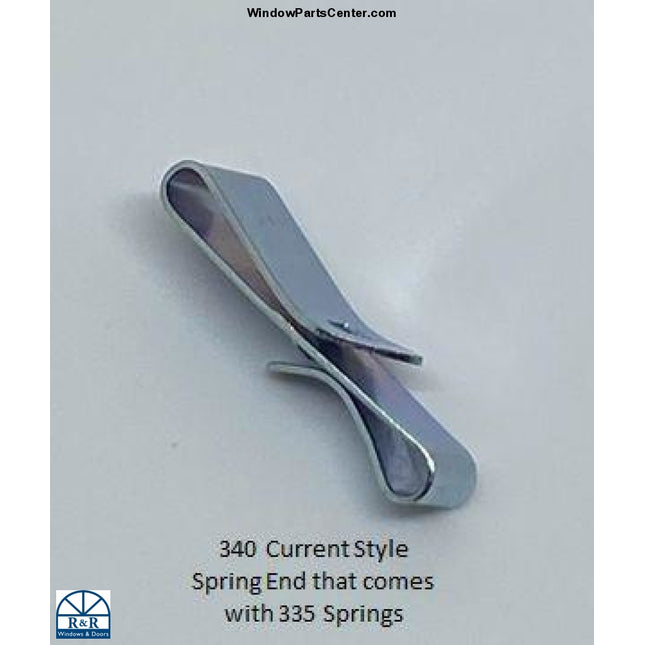

Part # 340 Current Style
Replacement Balance Spring End Clips For Double Hung and Single Hung Window Compression Tilt Jamb Liner Springs.Known To Have Been Used On: Hurd, Weather Sheild, BiltBest, Cradco, Oldac and more.
To order Springs (Sold Separately) See part Number 335

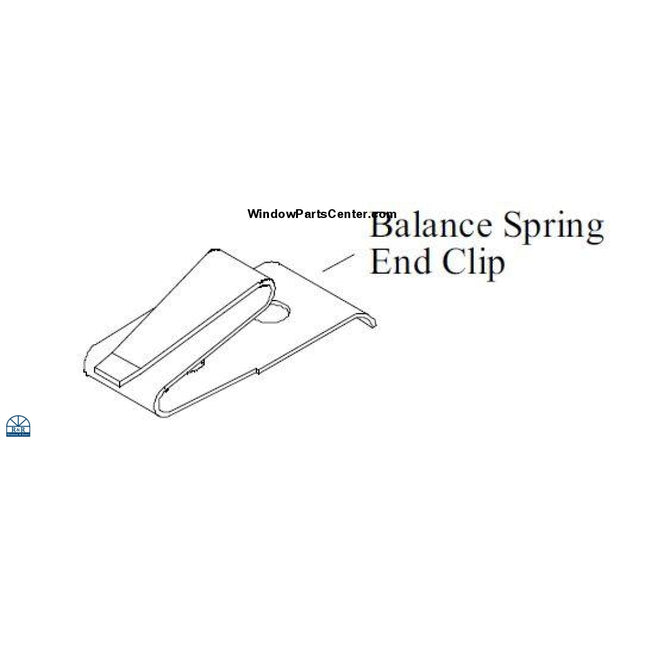

Part # 340- Old Style
Replacement Balance Spring End Clips For Double Hung and Single Hung Window Compression Tilt Jamb Liner Springs.Known To Have Been Used On: Hurd, Weather Sheild, BiltBest, Cradco, Oldac and more.
To order Springs (Sold Separately) See part Number 335
Once 340 old style is out of stock no more will be available the replacement will be 340 new style click here

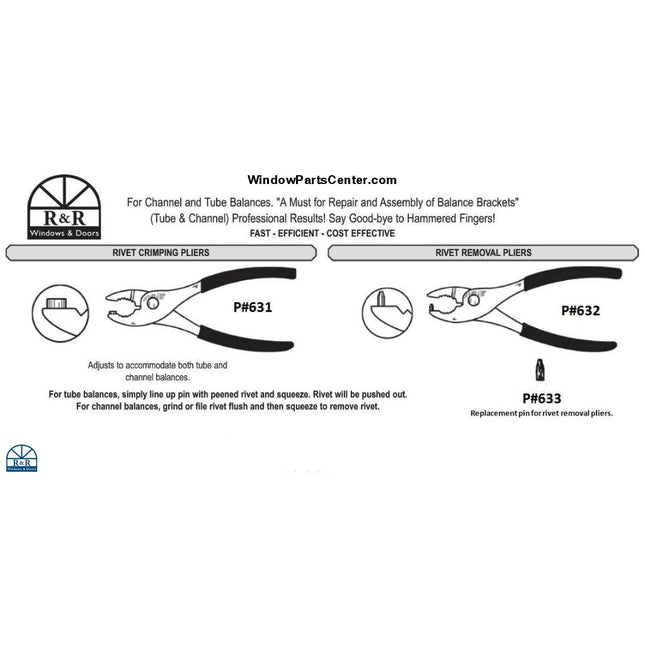

Part Number 631
Rivet Crimping Pliers Used for Channel and Tube Balances Repair
Accessories Sold Separately
P# 632 - Rivet Removal PliersP# 633 - Replacement Pin for rivet removal pliers
This block and tackle balance is used on Hurd Energy Saver Concealed Jamb Liner Double Hung / Single Hung and H3 Lines.Also used on other manufacturers windows - customer will have identify and match up picture. To order block and tackle balance: See number stamped on side of metal and match it up to the options.Due to the multiple sizes available these are not a stock item and have a 3 week lead time. Special order item NO returns.
You will receive once balance system. if you need to replace both the left and right side on one window order QTY 2.
Part Number: 710
710 current style. See pictures and directs on how to replace.
Snap On Balance Shoe kit for Concealed Jamb liner
Style:
710 Current Style - comes with new rivet pin as 710 is longer and mounts in the 2nd hole of your balance bar. If you do not have the rivet installation tool you will also need to order it. Part Number: Coming Soon is Sold Separately (see guide replacement instructions)
Uses on H3 Double Hungs and Hurd Energy Server Concealed Jamb Liner Double hung and Single Hung Windows.327 Old Style Over All Dimension NLA: 1 15/16" L x 19/32" W x 11/16" D
Associated Products Sold Separately:
Part Number S2021 - Rivet Setting Tool
Part Number S2022 - Sash Balance Guide Rivets

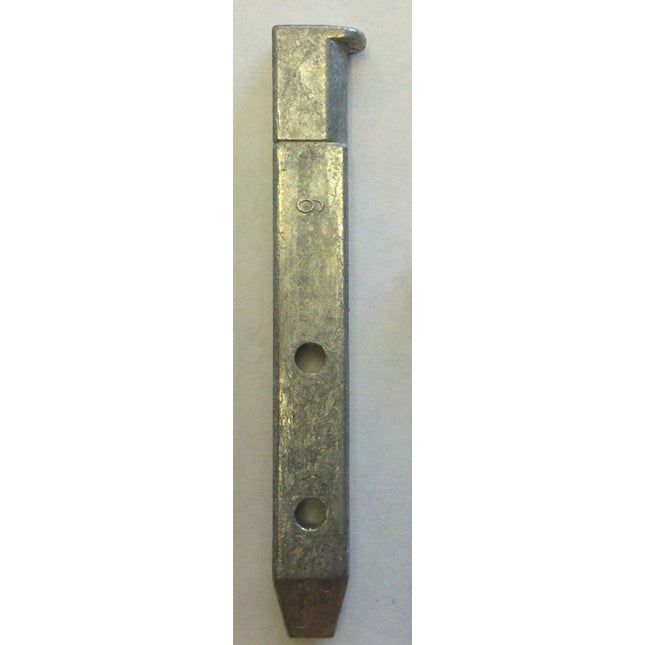

Part Number: 980
VINYL Double Hung Block Tackle Pivot Bar
Sold Individually
Dimension: 2.5 inch long x 5/16 inch wide x 3/16 inch thick
Stamped on Bar: 265 A
Known to have been used on: Hurd VINYL Double Hung Window ONLY Block & Tackle Pivot Bar, and other window brands

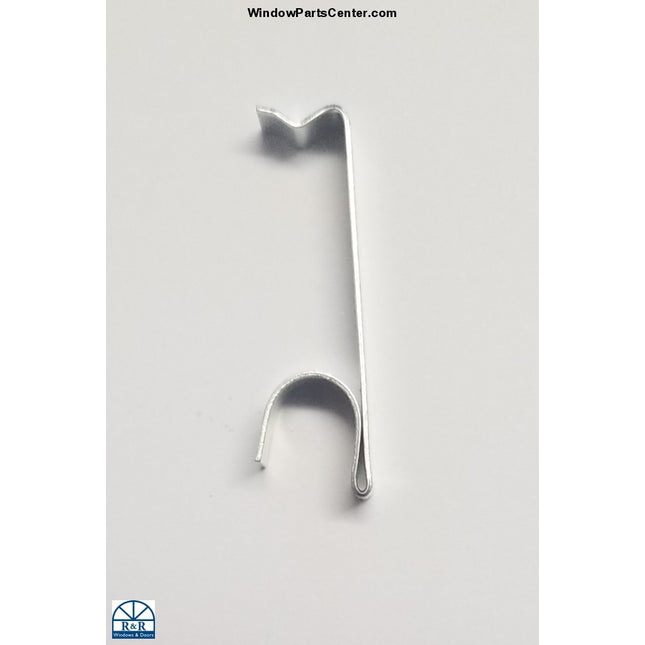

Balance double hung clip for vinyl Windows.
Pack of 4
For side Sash load double hung and single hung windows
Clip when pulled out to 45 degree angle makes it possible then to remove sash.
Used on many vinyl window lines such as Cascade Vinyl windows, Milgard and Viking vinyl Windows and more
