Part Number: 116
Wood Lower Section for Sill Cover For Hurd Awnings and Casements
Size: 30 inch long
this part goes under the wood sill cover on the right and left side of the operator. - Customer will cut to fit. may need modification for older style Hurd Windows.
Part Number: 117
Operator for Casement Window Entrygard Truth 15 Series Straight Arm 15.94 .
Handing: Left Hand and Right Hand. See pictures that are labeled to determine your handing of your operator
Overall arm length 9 1/2 inch see Pictures
Known Part Numbers: 117 - U.S. Pat. 4,241,541 - CAN Pat. 350,432 - PAT 1982
Know Numbers Stamped on Housing and Gear: U.S. Pat. 4,241,541 - CAN Pat. 350,432 - PAT 1982, PAT.NO. 4,840,075, 45275, 31782L
Handle and Cover Sold Separately See part # 139 for handle and #166 and #S1004 for cover.
Known Replacement Parts for: Hurd, Marvin, Cascade, Caradco, BiltBest, Milgard, Sierra Pacific, Norco and more.
Truth Factory Cut Sheet for 15 Series Streight Arm 15.49 Operator
Part Number: 1172 - 1 1⁄2” x 11” Brass Plates, Concord Style - For Semi-Active Door
EMTEK MULTI POINT LOCK TRIM DOOR CONFIGURATION 1 3 5/8" Center-to-Center (see diagram)
Non-Keyed, Passage - For Semi-Active Door
NOTE! - This is for Configuration style 1 doors only. Read all information below and review all diagram drawings and pictures before you place you order to confirm this trim handle set will work with your door. Made to order - allow 1-3 week lead time - no returns or order cancelations - pricing includes factory shipping costs
Reference: Atrium®, G-U®, KML by Andersen®, Andersen®Marvin Integrity®, Paddock Lockmaster™, Superior® - see diagram to confirm this will work for your door.
Each Multi Point Lock Trim now includes the Spring Assist functionwhich returns the lever to the neutral position and eliminatessagging handles.
Handing Required (see diagram!!!) • Key codes may be specified. Fits standard door thickness of 13⁄4”. Specify if thicker in check out order comments.• Set includes plates, handles and cylinders (where applicable). Multi Point lock mechanism is not included.
Finish:
Polished Brass - Lifetime (US3)
French Antique (US7)
Oil Rubbed Bronze (US10B)
Satin Nickel (US15)
Pewter (US15A)
Flat Black (US19)
Polished Chrome (US26)
Unlacquered Brass (US3NL) - Email for quote
Style Lever: See Lever Options Picture see and choose your lever style - if lever option is not available for you to choose please email us what you would like and if available we will email you custom quote/invoice to order.
Handle set trim could be longer then your original handle trim and a new screw hole may need to be drilled see diagram for Door Configuration 1 for screw hole placement.
California Residents Proposition 65 Warning
Same Style Handle Set with Other Operation Options:
Part Number 1171 - Keyed with American Cylinder (Can lock or unlock door from inside and outside - comes with keys)
Part Number 1172 - Non-Keyed Passage (NO LOCKING CAPABILITY)
Part Number 1173 - Non-Keyed American Style Thumbturn Inside (can ONLY be locked or unlocked from the inside NO keys)
Part Number 1174 - Non-Keyed Fixed Handle Outside, Operating Handle Inside (NO LOCKING CAPABILITY)
Part Number 1175 - Dummy Pair ( Fixed - NO locking or door operation capability)
Part # 119
Casement Operator - Encore Dual Arm Sill Mount Amesbury Truth 50.10
119 is the Operator Only - You will need to purchase the cover and handle kit part number 137 sold separately.
Manufacture Details: Encore Operators give you all the strength and performance characteristics of Maxim, but with the flexibility of a snap-fit cover and streamlined full-flip folding handle that eliminates collapse during operation. Encore Operators require 33% less effort to operate than previous operators and are designed to use the same mounting location as the Maxim system. Stainless steel components are available for coastal applications. These operators complement the Encore Multi-Point Locking System.
Finish Arms available in: Standard E-Gard Beige (stock) and Stainless Steel (Non stock)*
*Non stock items are special order and can have a 2-6 week lead time. orders can not be cancelled or returned.
Associated Parts Sold Separately:
Part Number: 137 Encore Folding Handle and Cover Kit
Part # 187 - Sash Bracket with Set Ring - elbow arm of #101 operator snaps onto
Part # 189 - Track Shoe – what the long arm of the #101 operator snaps onto
Part # 114 - Sash Track (what the track shoe #189 slides into)
Part # 121 - Adjustable Hinge – below the operator on the bottom and on top of the window when you open it.
Known to have been used on the following Manufacturing Brands: Hurd, Semco, Marvin, Cascade, BiltBest, Milgard, Sierra Pacific Monarch April 2006 to present and more.
Manufacture Tech Note: Proper Installation of an Operator Cover & Nested Folding Handle. When installing the cover and handle on the operator you should follow theseinstructions:• Snap the cover onto the operator base.• Place the handle onto the spline of the operator and rotate the handle to closethe window.• Lock the window in place.• Rotate the handle Ľ turn back (towards opening direction) to reduce thepressure on the operator.• If the handle needs to be positioned in a nested cover you can remove thehandle at this time and re-position it so that it will rest correctly in the nestedcover.• Tighten the set screw on the handle.• Unlock the window and cycle the sash open and closed until the handle returnsto the starting position whereby there is no additional torque required to close the sash. Note: the sash should travel to a point that the lock can easily engageand seal the window.• If the window does not come all the way into the closed position, and more forceis required on the operator to close the window, you will need to review thewindow for the following; sash sag; racked window; lock points that are notproperly aligned; or hinges not installed correctly. These issues should becorrected prior to repeating the installation of the handle onto the operatorspline.Placing the operator and the handle under high stress and abusive loads can causepermanent failures to the handle or operator as the window is repeatedly opened andclosed.
Known Part Numbers: 119, 096357, 096358, 36-368EN, 36-369-EN
updated 7/8/23
1200 series Handle Set 6" Center to Center Bore (W&F Handle) Discontinued No longer Available once our AS IS stock is gone Click Here to Replace with Part Number 852 Handle Set Handle Set 6" Center to Center Double Bore
Condition:
As Is - New product that is unused. Either: discontinued item and only what we have in stock is available, old stock, a customer return, vendor sample, or came in from the factory with finish flaws. May or may not have finish flaws or scratch’s. In some instances, these items are repackaged. Not available in all colors or handing. All sales final, No returns. If you can add to cart it is in stock.
Old Style Handle Set is NLA (known number stamped on some old handles: pat no 4,671,089 D 295 829 Other Pat. Pending 1200-2-1). Part number 852 is the replacement style for the 6” center to center double bore backsets - dead bolt and latch. and Mounting screw holes of 6 1/16" center to center (see pictures & video below).
W&F Replacement Parts Sold Sold Separately:
W&F Interior and Exterior Replacement Handles
W&F Door Handle Solid Shaft
870 - W&F Handle Extension
701 Bushing Kit
NOTE! 852 only works for 6 inch center to center 2 1/8" standard double double bore with latch and dead bolt (see video below). (If you have the W&F multipoint hardware with 6 inch center to center 1 7/8" or 2 1/8" multipoint bore and screw holes are 5 3/16" center to center see part number: D300, D301, D302, D303, D304 or D305 )
*Additional Finish Manufacturer Warranty info: Warranty is for original consumer/purchaser Proof of product purchase is required. for Bright Brass, Stain Nickel and White only have a 1 year manufacturer warranty. Warranty does not cover normal wear and discoloration of Finishes, damage caused by scratches or abrasions, or any product that has been improperly installed, abused, worn out, altered or used for a purpose other than that for which it was intended, or used within 10 miles from the sea coast or body of salt water, or in a manner inconsistent with any instructions regarding its use or recommended care and maintenance, or that has been exposed to solvents, chemicals, or other harsh environments or foreign substances including any airborne foreign substances.
Pricing subject to change - cannot retro active any pricing on previous orders or hold pricing for future orders.
1200 Series Handle Set 6" Center to Center Bore (Weather Shield Handle)Discontinued No longer Available Click Here to Replace with Part Number 852 Handle Set Handle Set 6" Center to Center Double Bore
Old Style Handle Set is NLA (known number stamped on some old handles: pat no 4,671,089 D 295 829 Other Pat. Pending 1200-2-1). Part number 852 is the replacement style for the 6” center to center double bore backsets - dead bolt and latch. and Mounting screw holes of 6 1/16" center to center (see pictures & video below). .
W&F Replacement Parts Sold Sold Separately:
W&F Interior and Exterior Replacement Handles
W&F Door Handle Solid Shaft
870 - W&F Handle Extension
701 Bushing Kit
NOTE! 852 only works for 6 inch center to center 2 1/8" standard double double bore with latch and dead bolt (see video below). (If you have the W&F multipoint hardware with 6 inch center to center 1 7/8" or 2 1/8" multipoint bore and screw holes are 5 3/16" center to center see part number: D300, D301, D302, D303, D304 or D305 )
This W&F Handle Set 6" Center to Center Bore (Hurd Handle) Discontinued No longer Available Click Here to Replace with Part Number 852 Handle Set Handle Set 6" Center to Center Double Bore
Old Style Handle Set is NLA (known number stamped on some old handles: pat no 4,671,089 D 295 829 Other Pat. Pending 1200-2-1).
Part number 852 is the replacement style for the 6” center to center double bore backsets - dead bolt and latch. and Mounting screw holes of 6 1/16" center to center (see pictures & video below).
W&F Replacement Parts Sold Sold Separately:
W&F Interior and Exterior Replacement Handles
W&F Door Handle Solid Shaft
870 - W&F Handle Extension
701 Bushing Kit
NOTE! 852 only works for 6 inch center to center 2 1/8" standard double double bore with latch and dead bolt (see video below). (If you have the W&F multipoint hardware with 6 inch center to center 1 7/8" or 2 1/8" multipoint bore and screw holes are 5 3/16" center to center see part number: D300, D301, D302, D303, D304 or D305 )
*Additional Finish Manufacturer Warranty info: Warranty is for original consumer/purchaser Proof of product purchase is required. for Bright Brass, Stain Nickel and White only have a 1 year manufacturer warranty. Warranty does not cover normal wear and discoloration of Finishes, damage caused by scratches or abrasions, or any product that has been improperly installed, abused, worn out, altered or used for a purpose other than that for which it was intended, or used within 10 miles from the sea coast or body of salt water, or in a manner inconsistent with any instructions regarding its use or recommended care and maintenance, or that has been exposed to solvents, chemicals, or other harsh environments or foreign substances including any airborne foreign substances.
Pricing subject to change - cannot retro active any pricing on previous orders or hold pricing for future orders.

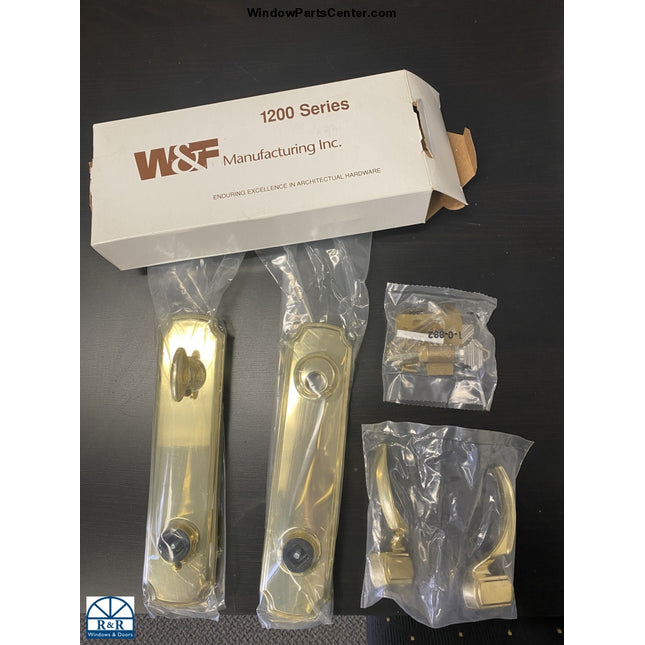

Part Number 1200-5.5 discontinued
Replacement option that we still have available is part number S4110 -W&F French Series Handle Set - The Normandy 5 1/2 Inch Center to Cetner
W&F 1200 Series Handle Set
5 1/2 Inch Center to Center Bore Handle Set
Color: Bright Brass
As is item no returns -this is our old stock new condition
What you see in the picture is what you will get.
Comes with interior and exterior face plates, 2 lever handles, 2 strike pales mounting screws, keyed cylinder and 2 keys (DOES NOT include backset latch or dead bolt)
Stamped on back: Patented Number: PAT # 4,671,089 P/N1200-74
Associated Parts Sold Separately:
For 6 Inch Center to center bore see part number 852 (not a replacement for the 5.5 inch center to center handle set)
Part Number: 121
Amesbury Truth Adjustable Casement and Awning Hinge Track Kit
Stack Hight: 7/16" (see picture)
What's included: 1 left hand hinge track with hinge arm, 1 right hand hinge track with hinge arm (universal for both left and right handed casement Windows - hinges are used on the top and bottom of the casement window swap which one goes in top and bottom depending on how your window is handed).
Size: 10 inch, 14 inch (determine your size by measuring the track).
Finish: Standard (beige E-Guard powder coat shown in pictures), Stainless Steel
Hinge track kits are adjustable. To order adjustable wrench see part # 190 (sold separately). Only one wrench is needed for multiple hingesAdjustable hinges help with sash dragging. When you adjust the bottom hinge toward the locking side it raises up the lock side sash up. If it makes it worse adjust the other way.
If you have the old style hinges with the metal clip you MUST also replace the track, which comes in the kit, as the new style hinge arms do not have a metal clip to hold it to the track. They now have a set ring on the track to hold everything in place. Old style hinges with clip are no longer available.
Known Part Numbers: 121, 30451, 30144, 30350, 20681, 30463, 31512, 31532, 14-77-00-009, 14-77-00-010
Associated Parts Sold Separately:
part number 190: Hinge Adjustment Wrench
Part Number: 123
Amesbury Truth Casement Sash Bracket Old Style Sash Bracket Clip On Type (no set ring see video and pictures) For: Split Arm Operator
Old Style No Longer Available once our stock is gone the replacement style will be shipped as shown in the factory drawing.
Handing: Left hand or Right hand (see pictures to determine handing)
Material: StandardColors Due to change in paint used in production. Random color will be shipped depending on what is in stock.
Used on Hurd Windows from 1988 - 02/02/98. And many other window brands that use Amesbury Truth Parts
Known Part Number Stamped On Left Hand L 07868
Part Number: 125 elbow lock
Picture shows lock in the locked position.(down)Color: White, New Goldtone, Beige, Bronze, Chestnut Bronze, Clay and Coppertone
Associated parts sold separately for Elbow Style Lock
Part Number 172 Elbow Style Lock Keeper Finder
NOTE: 125 Elbow Style Lock is a replacement option for the Straight Arm and Curved Arm Lock (see pictures). If you are using 125 as replacement option you may want to Add a Keeper Finder (P/N 172) to your window lock order. The Keeper Finder will assist you in installing your new locks. QTY One (1) Keeper Finder is all that is needed to install multiple locks.
Known Part Number: HCSE32, 091694, 091695, 016155, 061656, 018911, 018912
Known to use as repalcement lock for: Hurd, Biltbest, Caradco, Oldach, norco and more
Part Number: 127

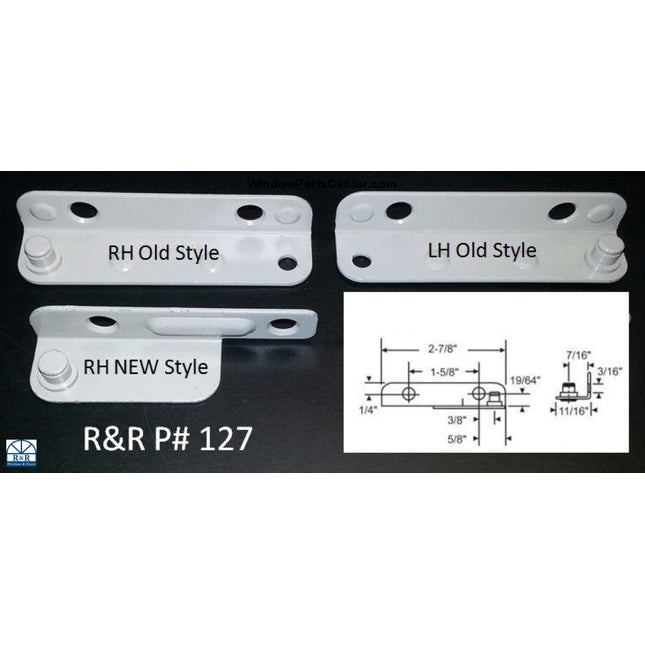

Sash Bracket for Casement and Awning Windows
Handing: Left Hand and Right Hand (See picture)
Old style is no longer available. New style is the direct manufacture replacement - Click On picture to enlarge.
Known to have been used on Builtbest and many other casement windows
