Park Vue Door Parts

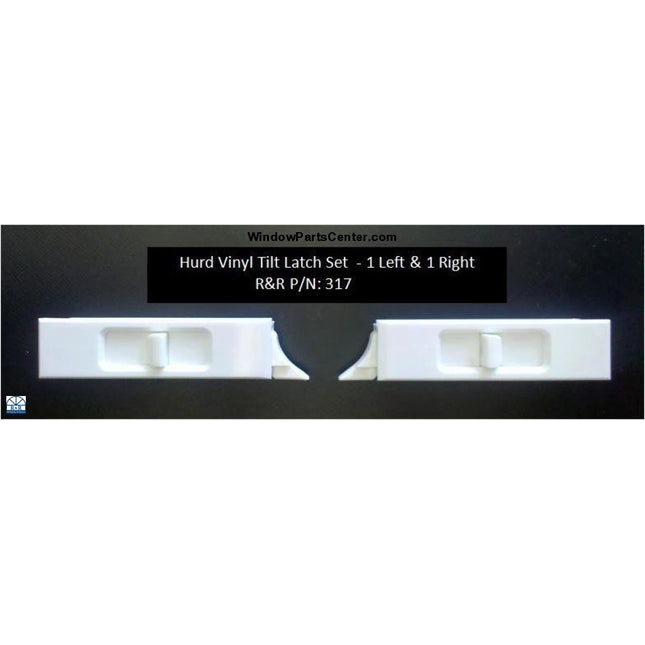

Part Number: 317 Snap In Tilt Latches Vinyl Double Hung and Single Hung Windows Set Includes: 1 left & 1 RightColors: White and Dark Brown (Dark Chocolate Brown in color).Discounted Colors: Beige (Light Tan/Almond color no longer available) Product Dimensions: 11/16" Wide x 2 12/31" Long x  27/64" Deep Can be used on top or bottom sash. This tilt latch is a 85 Series Balance Accessories Known to been used on Hurd Monument Vinyl Double Hung and Single Hung windows and variety of other vinyl window brands that used the 85 Series Balance System.Known Part Numbers: 317, V00380, V00381, V00382, V00383 PAT. # 5,139,291

Read more less

Part Number: 505 Door Bottom Channel Weather Strip For Sliding Patio Door Size Length: 5-0 Door = 29 1/4 Inch Channel 5-4 Door = 31 1/4 Inch Channel 6-0 Door = 35 1/4 Inch Channel 8-0 Door = 47 1/4 Inch Channel Color: White Material: Vinyl Plastic Vinyl Dimensions: 3/4" Wide and flanges out to 13/16" Wide  X 1/2" Deep  x Length (see size options above) Description: U Channel Weather-strip for CHES/HES Hurd Sliding Patio Door. The metal channel is for older Hurd “Classic” doors and the plastic one is for “Energy Saver” doors. If you have the old metal we recommend you purchase the longest length(8-0) and retro fit like our how to video shows below.Metal Style NLA will have to retro fit by using the plastic part - the fuzzy weather strip will be installed toward the exterior on the door panel. Please watch how to video below.The Metal Dimensions (NLA): 5/8" wide at metal top and ¾” wide at fuzzy weather strip side x ½” deep x length depending on door sizeThe Plastic Vinyl Dimensions: 3/4" Wide X 1/2" Deep x length (see size options above)***505 part can only be retuned if its in new, unused uncut condition*** Associated Pars Sold Separately: Part Number 526 Parting Stop - wood part that 511 snaps into Part Number 513 Vinyl Side Stop weather strip Used along with 511  Part Number 527 Wood Side Stop that 513 snaps into Part Number 511 Weather Strip Part Number 520 Rollers Known to have been used on: Hurd, Sierra pacific, Park Vue, Weather shield and many other patio door brands. ***505 part can only be retuned if its in new, unused uncut condition***   known past numbers:  SSPD467

Read more less

Part Number 511 Side or Head Seal Weather Strip for sliding patio doors Size: 94 5/8 Inch long or Sample (for test fit only sample is  2-4 inches long) This usually ships via UPS Ground. Color: Tan ONLY all other colors no longer available Known to have been used on: Hurd  patio doors, Park Vue, weather shield, Sierra pacific and many other wood and wood/clad sliding patio doors.  Return note: Reruns for only full length 94 5/8 inch parts. No returns accepted for samples or cut parts. Associated Pars Sold Separately: Part Number 526 Parting Stop - wood part that 511 snaps into Part Number 513 Vinyl Side Stop weather strip Used along with 511  Part Number 527 Wood Side Stop that 513 snaps into Part Number 505 Channel Weather strip

Read more less

Part Number 513 Vinyl Side Stop Weather Strip for sliding patio doors Length: 93 3/8 inch This usually ships via UPS Ground. Color: Tan ONLY all other colors no longer available Known to have been used on: Hurd  patio doors, Park Vue, weather sheild, Sierra pacific and many other wood and wood/clad sliding patio doors.  Associated Pars Sold Separately: Part Number 527 Wood Side Stop that 513 snaps into Part Number 526 Parting Stop - wood part that 511 snaps into Part Number 511 Vinyl Side or head Stop weather strip Used along with 513  Part Number 505 Channel Weather strip

Read more less

528 - Patio Door Replacement Screen Rollers  Part Number 528 - Replacement Screen Rollers - For Sliding Patio DoorsSize: See Photos for measurements. 2 Inch Long Overall  with 1" steel wheel-ball barring.Sold in: Set of 2 per pack 1 left and 1 right In Stock:  All Metal  Low QTY: White, Sand and Bronze are low stock discontinued item. If you can add to cart we have it in stock still. Once gone the all metal is the direct replacement. Screws: Replacement screws are sold separately Click Here to add to order If you want to replace both top and bottom rollers (total of 4 rollers) you will need to purchase QTY 2 packs. These parts are NEW- Marks found on roller adjustment are not defects. Rollers come pre packaged by the manufacturer. The “marks” you see on the sand and white adjustment are from the molds they use to make the parts and put them together. This parts were used on Hurd doors prior to 2006.Known Brands and Part Numbers: 025701, 025702, 025703, 23739000000, Hurd, Crestline, ParkVue, Merrill Millwork, Kolbe & Kolbe Millwork, Weather Shield, Peachtree Citadel Door Roller, Semco, Marvin and more. *Note to customer* there are a wide verity of rollers available. If the drawing does not look exactly like your tandem roller Click Here to see all rollers on our website. If you cant find the part you are looking for please email or text us a picture of your roller and our research team would be happy to assist you with finding the right one. Email: Info@WindowPartsCetner.com Text Line: 303-222-4489

Read more less

Part Number: SP15489Weather Strip for Swinging Door Hydrosill Weather Strip. The bulb style has been discontinued. Once our stock is depleted the replacement current style that is the direct replacement will be shipped. Length:  77 inch  Bulb Diameter: 1/4 inchColor: Black Sold Individually Shipped: Rolled(If you would like the weather strip shipped straight please contact Info@windowpartscenter.com or use our text line 303-222-4489 with Part number, QTY you want to order, name, ship to address, email address and our associates can make a custom invoice with UPS long shipping pricing for the to ship them straight).  Sample: about 4-5" long Known Part Number: SP15489, PIQ007BZ007. Known to be used on Sierra Pacific Swinging Patio Doors, Park-Vue, PVH10, SWVIQS3 Schlegel Amesbury 5000, 2500 and 2200 hydro series threshold  and other door brands. ,

Read more less
